Samsung Galaxy Book Pro 360 15" Screen Replacement

Geschrieben von: Spencer Day
  • Kommentare: 1
Samsung Galaxy Book Pro 360 15" Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

30 - 45 Minuten

Einleitung

Use this guide to replace the screen on your Galaxy Book Pro 360 15" laptop with a genuine Samsung part.

Before you begin, refer to the Samsung PC Repair Guide for safety information.

For your safety, discharge the battery below 25% before disassembling your device. This reduces the risk of a thermal event if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

  1. gUKju23eSfPWoTQG
    gUKju23eSfPWoTQG
    fHkm3bbNXXTcaKQo

    • Before you begin, shut down your laptop and unplug it.

    • Close the screen and lay your laptop down with the rear case facing up to access the four rubber feet.

  2. AjKnV44Yyj2yotFw
    AjKnV44Yyj2yotFw
    oFrIGNcPOxuqMBwH
    4WpNenWhEvrI2KVA

    • Insert an opening pick between the rear case and the rubber foot.

    • Pry up with the pick and dislodge the foot from the rear case.

    • Use tweezers or your fingers to remove the rubber foot.

    • Repeat this process on the remaining rubber feet.

    • There are two types of rubber feet for this laptop. During reassembly, make sure the top feet say "M4" and the bottom feet say "M1".

    • To reinstall a rubber foot, align it over the recess and push down until it's secured.

  3. SfSuoZTK4MfKFZrO
    SfSuoZTK4MfKFZrO
    OdXUvHiCw4S6q6a6

    • Use a Phillips screwdriver to remove the four 4.5 mm screws securing the rear case.

    • Throughout this repair, keep track of each screw and make sure it goes back exactly where it came from.

    • If you're reassembling with the Samsung Self-Repair kit, be sure to replace the screws with new ones labeled #3313.

  4. ULAySQ4d6j2pfZ2J
    ULAySQ4d6j2pfZ2J
    aAhvYQ2LhtPCpdaR
    xFe3aRHgug3abWuN

    • Apply a suction handle to the middle of the rear case's bottom edge, as close to the edge as possible.

    • Pull up on the handle with a strong, steady force to create a small gap between the rear case and the frame.

    • This may take significant force and multiple tries.

    • Insert an opening pick into the gap you created.

  5. X26VxUYBEWlLnFnT
    X26VxUYBEWlLnFnT
    nuXIk3HwpBNTIJph
    CtglRCBA3QtwfjxD

    • Slide the opening pick along the bottom edge to release the clips securing the rear case.

    • Continue sliding the pick along the perimeter of the laptop until all the clips securing the rear case have been released.

  6. FfVedCYiesC1LQjl
    FfVedCYiesC1LQjl
    C5FGqGpdi1KywkvV
    heixK53gSmujF2kK

    • Lift the rear case up and away from the laptop and remove it.

    • During reassembly, this is a good point to power on your laptop and test all functions before sealing it up. Be sure to power your laptop back down before you continue working.

  7. NMC6sQvHpFrTNTMF
    NMC6sQvHpFrTNTMF
    gH1AOpb13HiGR3Mp

    • Use tweezers or your fingers to peel up and remove the tape covering the battery connector.

    • Set the tape aside. You'll reuse it during reassembly.

  8. APoUcIwRAVkOvStH
    APoUcIwRAVkOvStH
    uVLsPI5oPXUVo3dP

    • Insert the flat end of a spudger under the battery cables, as close to the connector as possible.

    • Gently pry up and disconnect the battery connector from its socket.

  9. VTbHeT1goJKHFQ51
    VTbHeT1goJKHFQ51
    YyLfR2K5Csp4gemt

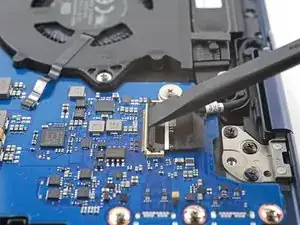

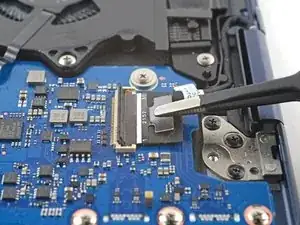

    • Use the flat end of a spudger to pry up the locking flap on the right display cable's ZIF connector.

  10. TKnZ3LKCCWXdwhva
    TKnZ3LKCCWXdwhva
    6ZoGNwKgho5mQlOC

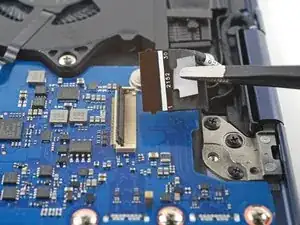

    • Use tweezers or your fingers to grip the display cable's pull tab and gently pull the cable out of its socket on the motherboard.

  11. 2nYHAOJGOhUPTQuX
    2nYHAOJGOhUPTQuX
    EiofUWFPkRALB3Na

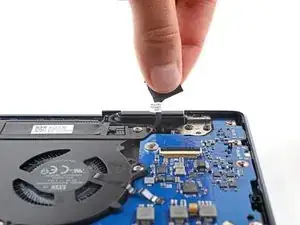

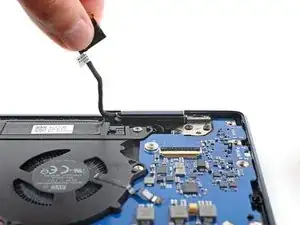

    • Slowly pull the right display cable out of its recess.

    • A small clip secures the cable.

    • During reassembly, make sure that the display cable is secured under its clip.

  12. nBCjyTUCKHeLweLQ

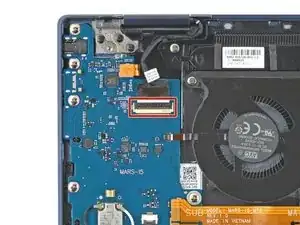

    • Repeat the disconnection and removal procedure on the left display cable.

  13. LPbVDxVvEohSppCk

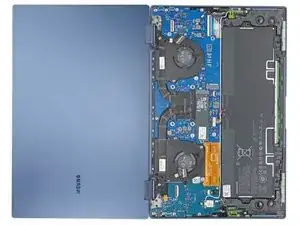

    • Open the laptop until it's completely flat and lay it down with the display and keyboard facing down.

    • Before laying the laptop down, make sure you have a clean surface that is clear of items that could damage the display.

  14. tCoaRALL32fe4ouP
    tCoaRALL32fe4ouP
    YN31Iv5SLMLjFeY1

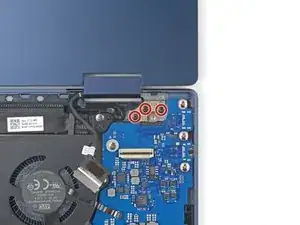

    • Use a Phillips screwdriver to remove the three 3.6 mm screws securing the right screen hinge.

    • If you're reassembling with the Samsung Self-Repair kit, be sure to replace the screen screws with new ones labeled #2749.

    • During reassembly, install the screws from left to right.

  15. 111lNks5FvOtSTke
    111lNks5FvOtSTke
    mky15SdLXcbfFULG

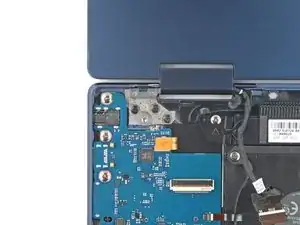

    • Use a Phillips screwdriver to remove the three 3.6 mm screws securing the left screen hinge.

    • If you're reassembling with the Samsung Self-Repair kit, be sure to replace the screen screws with new ones labeled #2749.

    • During reassembly, install the screws from right to left.

  16. 6GylOajJ3bTxWXZI
    6GylOajJ3bTxWXZI
    QYKHgmtIp1ejTJvM

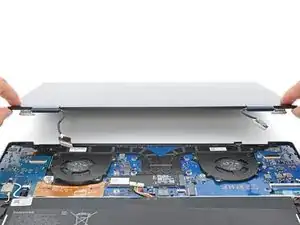

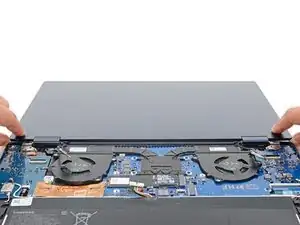

    • Lift the screen up and away from the laptop and remove it.

  17. mUmaYS1rCxAAf6K5

    • The screen is now detached from the laptop.

Abschluss

To reassemble your device, follow the instructions in reverse order and perform the opposite actions, e.g., "reattach" instead of "removing." Skip steps that use heating and prying, and pay close attention to the 📌 bullets as you work through the steps.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Check out our Answers community for troubleshooting help.
