Samsung Galaxy Book Pro 360 15" Touchpad Replacement

Geschrieben von: Spencer Day
  • Kommentare: 0
Samsung Galaxy Book Pro 360 15" Touchpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

20 - 40 Minuten

Einleitung

Use this guide to replace the touchpad in your Galaxy Book Pro 360 15" laptop with a genuine Samsung part.

Before you begin, refer to the Samsung PC Repair Guide for safety information.

For your safety, discharge the battery below 25% before disassembling your device. This reduces the risk of a thermal event if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

  1. gUKju23eSfPWoTQG
    gUKju23eSfPWoTQG
    fHkm3bbNXXTcaKQo

    • Before you begin, shut down your laptop and unplug it.

    • Close the screen and lay your laptop down with the rear case facing up to access the four rubber feet.

  2. AjKnV44Yyj2yotFw
    AjKnV44Yyj2yotFw
    oFrIGNcPOxuqMBwH
    4WpNenWhEvrI2KVA

    • Insert an opening pick between the rear case and the rubber foot.

    • Pry up with the pick and dislodge the foot from the rear case.

    • Use tweezers or your fingers to remove the rubber foot.

    • Repeat this process on the remaining rubber feet.

    • There are two types of rubber feet for this laptop. During reassembly, make sure the top feet say "M4" and the bottom feet say "M1".

    • To reinstall a rubber foot, align it over the recess and push down until it's secured.

  3. SfSuoZTK4MfKFZrO
    SfSuoZTK4MfKFZrO
    OdXUvHiCw4S6q6a6

    • Use a Phillips screwdriver to remove the four 4.5 mm screws securing the rear case.

    • Throughout this repair, keep track of each screw and make sure it goes back exactly where it came from.

    • If you're reassembling with the Samsung Self-Repair kit, be sure to replace the screws with new ones labeled #3313.

  4. ULAySQ4d6j2pfZ2J
    ULAySQ4d6j2pfZ2J
    aAhvYQ2LhtPCpdaR
    xFe3aRHgug3abWuN

    • Apply a suction handle to the middle of the rear case's bottom edge, as close to the edge as possible.

    • Pull up on the handle with a strong, steady force to create a small gap between the rear case and the frame.

    • This may take significant force and multiple tries.

    • Insert an opening pick into the gap you created.

  5. X26VxUYBEWlLnFnT
    X26VxUYBEWlLnFnT
    nuXIk3HwpBNTIJph
    CtglRCBA3QtwfjxD

    • Slide the opening pick along the bottom edge to release the clips securing the rear case.

    • Continue sliding the pick along the perimeter of the laptop until all the clips securing the rear case have been released.

  6. FfVedCYiesC1LQjl
    FfVedCYiesC1LQjl
    C5FGqGpdi1KywkvV
    heixK53gSmujF2kK

    • Lift the rear case up and away from the laptop and remove it.

    • During reassembly, this is a good point to power on your laptop and test all functions before sealing it up. Be sure to power your laptop back down before you continue working.

  7. NMC6sQvHpFrTNTMF
    NMC6sQvHpFrTNTMF
    gH1AOpb13HiGR3Mp

    • Use tweezers or your fingers to peel up and remove the tape covering the battery connector.

    • Set the tape aside. You'll reuse it during reassembly.

  8. APoUcIwRAVkOvStH
    APoUcIwRAVkOvStH
    uVLsPI5oPXUVo3dP

    • Insert the flat end of a spudger under the battery cables, as close to the connector as possible.

    • Gently pry up and disconnect the battery connector from its socket.

  9. 6AaByQhoexBrFXZG
    6AaByQhoexBrFXZG
    FouHLFQ6EArvFJSx

    • Use a Phillips screwdriver to remove the four 4.5 mm screws securing the battery.

    • Take care not to puncture the battery with your screwdriver—a punctured battery may leak dangerous chemicals or cause a fire.

  10. fcwCMowAjoovYYww
    fcwCMowAjoovYYww
    quWAYY3FnVE4QSYq
    swFRqyalI15qAhJd

    • Lift the battery straight out of its recess and remove it.

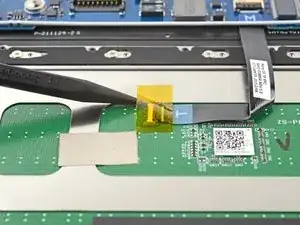

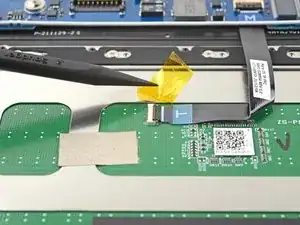

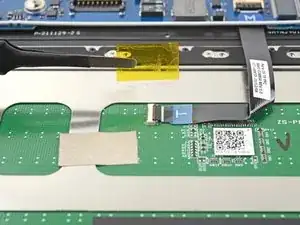

  11. pjkUnQT5TYM5H4hf
    pjkUnQT5TYM5H4hf
    CKOc6GEFJlhQNYDM
    AVDmNCNpkLygI6H4

    • Use your fingers or a spudger to peel up the tape covering the ZIF connector on the touchpad.

    • Remove the tape.

    • Set the tape aside. You'll reuse it during reassembly.

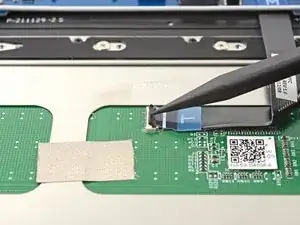

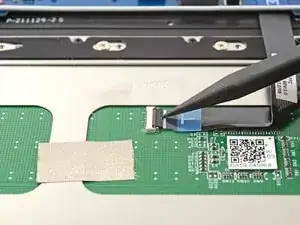

  12. XqBeZPN3SGmS1CxH
    XqBeZPN3SGmS1CxH
    ZXQwLBHfNjtYCIsV

    • Use the pointed end up a spudger to pry up the locking flap on the ZIF connector.

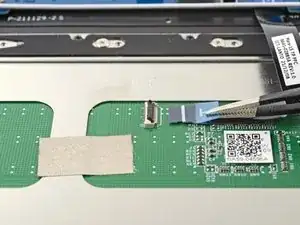

  13. y5LlXFTmkhiJ2KxP
    y5LlXFTmkhiJ2KxP
    nLcIOWPZDVs2Z6GS

    • Grip the touchpad cable's pull tab with tweezers or your fingers and gently pull the cable out of its socket on the touchpad.

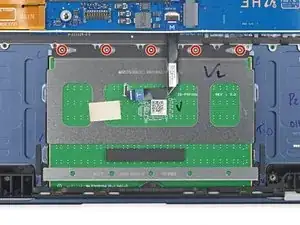

  14. DCsB2W1iVvLNo2E5
    DCsB2W1iVvLNo2E5
    xOZktmiTZwnS4MAR

    • Use a Phillips #00 screwdriver to remove the five 1.7 mm screws securing the touchpad.

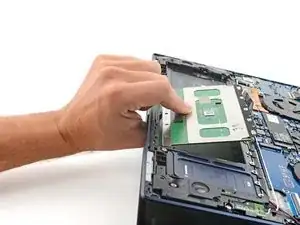

  15. PqyMIo4nLugUssMM
    PqyMIo4nLugUssMM
    NPDrym1dOXsdDaRu
    2hELm3QVF1hG4PSp

    • Open the laptop to about a 45 degree angle, keeping the laptop upside down.

    • Push up on the touchpad until its top edge is freed from the frame.

    • Pull the touchpad towards the top of the laptop and remove it.

    • Before securing the touchpad, insert its bottom edge under the bracket on the bottom edge of the laptop.

Abschluss

To reassemble your device, follow the instructions in reverse order and perform the opposite actions, e.g., "reattach" instead of "removing." Skip steps that use heating and prying, and pay close attention to the 📌 bullets as you work through the steps.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Check out our Answers community for troubleshooting help.
