Samsung Galaxy Camera Capture button Replacement

Geschrieben von: Richard Hicks
  • Kommentare: 12
Samsung Galaxy Camera Capture button Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

30 - 35 Minuten

Einleitung

  1. gBtaDMAdKNfNprUe

    • Begin removing the 3/16" screws for the device.

  2. NScoBeEQyMvEislq

    • Turn the device and remove the additional 3/16" screws.

  3. ctibQVQkAnj4rrSt

    • Turn the device and remove the additional 3/16" screw.

  4. 4qyDnYFPWejTZ5fq
    4qyDnYFPWejTZ5fq
    wMZGWqDEfWYD2lDH
    XYa6GEc6HUmHmjXp

    • Take the white cover plate off.

  5. rF4RpdBUKWSjTMhR

    • Using the plastic opening tools, pry open the camera from the bottom.

    • This may require a moderate use of force because of the sealing glue.

  6. aTxTT3Oh6uBGBDIt

    • Gently pull the connector away from the motherboard.

    Help! I can't get this connector back in place! How did you do it?

    Thanks!

    rotraut geringer -

    Got it finally - and it's working again, I can't believe it! Thank you so much for the instructions!!!!

    rotraut geringer -

  7. 56K6kGsQyK3kFMvv

    • Unscrew the motherboard's screws. There are 4 3/32" screws and 3 5/32" screws.

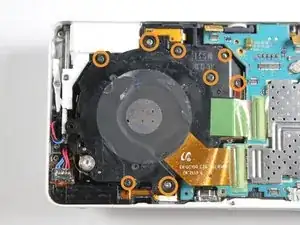

  8. T2eVmtrXIFZ2UiJY

    • Unscrew the lens' screws. There are 1 black 4/32" screw, 3 3/16" black screws, and 2 white 5/32" screws.

    This seems to be wrong. Only 2 screws connect the lens to the camera body - if you unscrew the others, you open up the lens and there is no need to do so.

    NOVOMOTION J. H. -

  9. nBvOtCEPc1xwARoa

    • Pull these connectors away from motherboard.

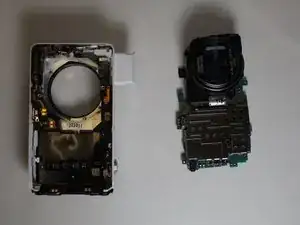

  10. UaOjTFvIUQwMAgKh

    • Lift the motherboard and lens out of the case.

  11. StUGUQnXUeAwWLfN

    • Remove all the screws circled. There is 1 1/8" screw by the flash, 1 9/32" screw that holds the flash button, 2 5/32" screw that is on the grey frame for the flash, and 2 5/32" screws that holds the cable frames on the top left.

    It is not really necessary to remove the whole flash group in order to get to the capture button - you only need to unscrew the lower part (1 screw) and then you can remove the black parts (not fully, but far enough) to uncover the capture button.

    NOVOMOTION J. H. -

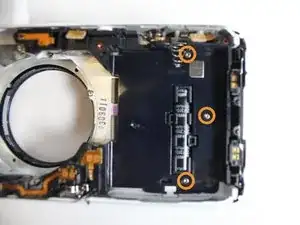

  12. RgCHlPInIMHCKOrA

    • Unscrew the 3 5/32" screws that cover the battery plate.

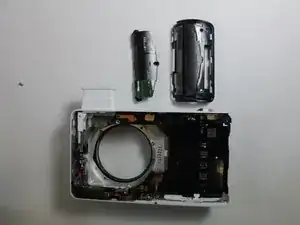

  13. aJBfJ4pfIPkOEvNU

    • The black plates on the other side can be removed after these screws.

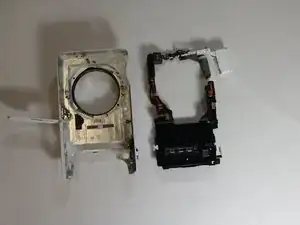

  14. vVoSadlJCLtKoijE

    • Pull the flash and battery case out of the device.

  15. wIDOtjAr6SQvXZiZ

    • Unscrew the 2 5/32" screws on the grey plate.

    Just first remove the whole (zoom) capture button group out of the camera body after you have removed the 2 srews that connect the capture button group to the body (these 2 screws are already removed in the picture). Then you can work on the capture button group if you want to or just replace the capture button group as a whole.

    NOVOMOTION J. H. -

    Where do I get the capture button group..????

    Paul Rice -

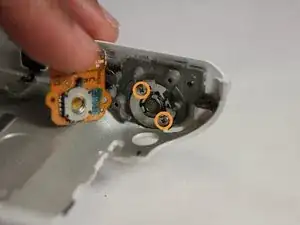

  16. 2qT2wwjERmCG6CuH

    • Pull the plate aside and unscrew 2 1/8" screws on the button.

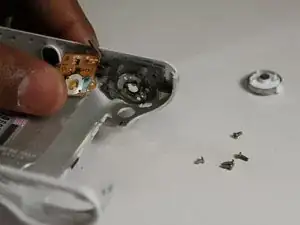

  17. vTIaZvXmQOvCIGM1

    • The Capture button can now be removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
