Samsung Galaxy Camera Lens or Motherboard Replacement

Gather your camera and tools. Also make sure that the battery is removed before proceeding.

Follow battery replacement guide through step three to remove the battery.

Remove all seven 4 millimeter long screws using the PH000 screwdriver bit.

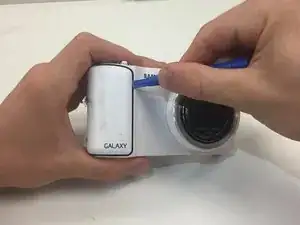

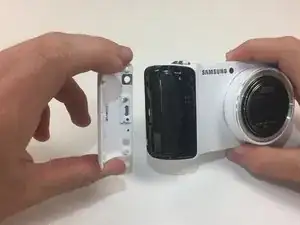

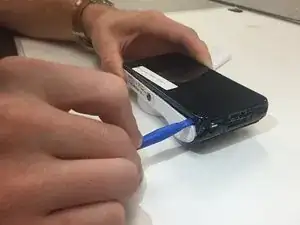

Use plastic opening tool to remove the cover on the non-lens side of the camera.

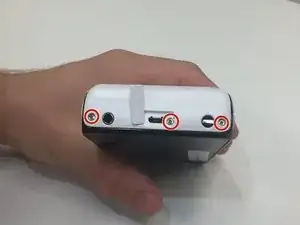

Open the battery compartment and remove the 2 screws. Also remove the screw from the bottom of the camera after pulling off the white sticker concealing it. Removing these screws releases the bottom of the display assembly.

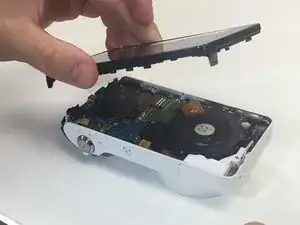

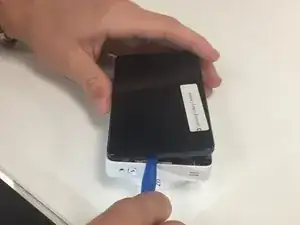

Starting at the non-lens side of the camera, use plastic opening tool to pry screen away from main housing on all sides.

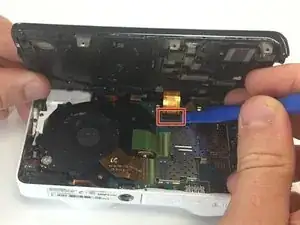

Use plastic opening tool to pull connector away from motherboard.

Remove screen completely and set aside.

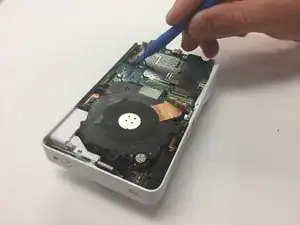

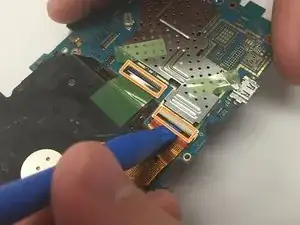

Using the plastic opening tool, disconnect the three connectors from the motherboard.

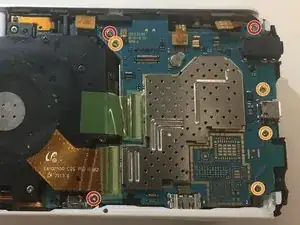

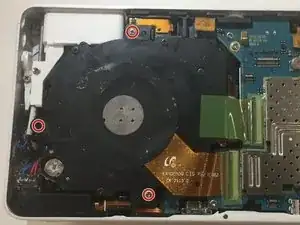

Remove the three 3.5 mm long screws (red circle markers) using the PH000 screwdriver bit.

Remove the four 2 mm long screws (orange circle markers) using the PH000 screwdriver bit.

Remove the three 3 mm long screws connecting the lens unit to the main housing using the PH000 screwdriver bit.

Carefully remove the lens and motherboard from main housing.

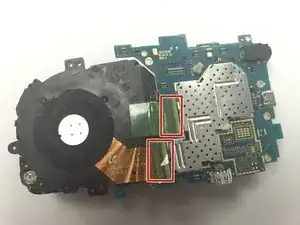

Remove stickers off of connectors.

Open latch door on connectors.

Separate lens from motherboard.

Now you may replace either motherboard or lens with new part.
