Samsung Galaxy Core Logic Board Replacement

Geschrieben von: ZFix
  • Kommentare: 2
Samsung Galaxy Core Logic Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

10 - 15 Minuten

Einleitung

Samsung Galaxy CORE, DUOS (i8260, i8262) - how to disassemble the phone and remove the Logic Board.

_________________ Video tutorial: _________________

  1. PnjeoHHnBSBxZVxJ
    PnjeoHHnBSBxZVxJ
    plFFAZWXufVTPm6a

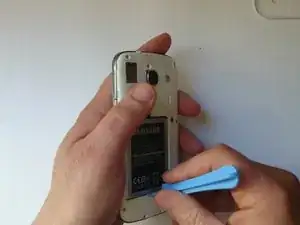

    • Switch-off the phone.

    • Remove the Battery cover and the battery.

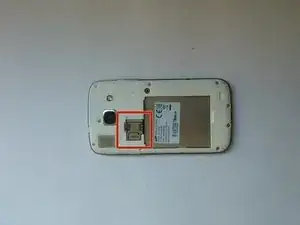

    • Remove an inserted SIM and Memory cards.

  2. HUMEoqESubU52YBH
    HUMEoqESubU52YBH
    kb1gHQ2ZGtXr3a16
    6BNMYOK4Wp4jKGUG

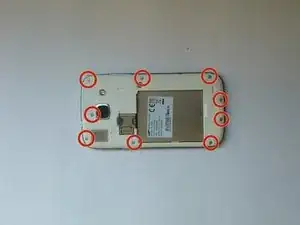

    • Remove 9x Phillips screws.

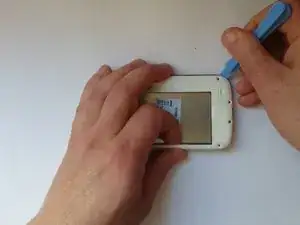

    • With a plastic tool remove the Back cover.

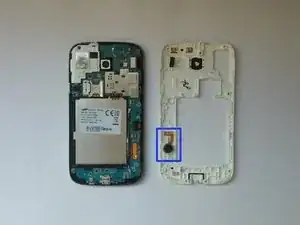

    • The Vibrator is on the other side of the back cover

  3. X2BaUgNkG3UKHGN2
    X2BaUgNkG3UKHGN2
    vnlOYTDB45CgMT3N
    R6MBRBPUTOD2IZ6T

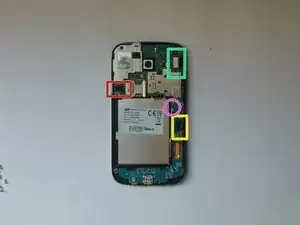

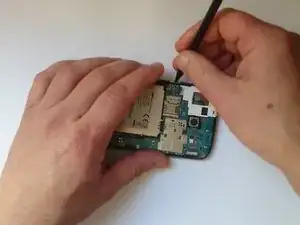

    • Disconnect one by one:

    • Earpiece/Loudspeaker/Audio Jack connector module flex cable

    • LCD Display flex cable

    • Charging Dock/Antenna/Mic module flex cable

    • Coaxial Antenna cable

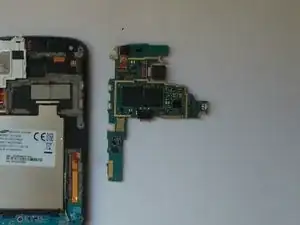

    • Carefully remove the Logic Board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
