Samsung Galaxy Core Main and Front Cameras Replacement

Geschrieben von: ZFix
  • Kommentare: 4
Samsung Galaxy Core Main and Front Cameras Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 - 20 Minuten

Einleitung

Samsung Galaxy CORE, DUOS (i8260, i8262) - how to disassemble the phone and replace Main and Front Cameras.

_________________ Video tutorial: _________________

  1. PnjeoHHnBSBxZVxJ
    PnjeoHHnBSBxZVxJ
    plFFAZWXufVTPm6a

    • Switch-off the phone.

    • Remove the Battery cover and the battery.

    • Remove an inserted SIM and Memory cards.

  2. HUMEoqESubU52YBH
    HUMEoqESubU52YBH
    kb1gHQ2ZGtXr3a16
    6BNMYOK4Wp4jKGUG

    • Remove 9x Phillips screws.

    • With a plastic tool remove the Back cover.

    • The Vibrator is on the other side of the back cover

  3. X2BaUgNkG3UKHGN2
    X2BaUgNkG3UKHGN2
    vnlOYTDB45CgMT3N
    R6MBRBPUTOD2IZ6T

    • Disconnect one by one:

    • Earpiece/Loudspeaker/Audio Jack connector module flex cable

    • LCD Display flex cable

    • Charging Dock/Antenna/Mic module flex cable

    • Coaxial Antenna cable

    • Carefully remove the Logic Board.

  4. mXsdVnftwXG2OyTg
    mXsdVnftwXG2OyTg
    QhDLGrPSRhnjXWjR
    KLVVwCE5I4RbBcPM

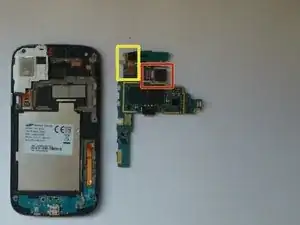

    • Main / Rear Camera

    • Front Camera

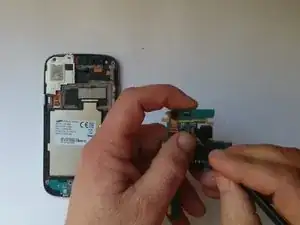

    • With a plastic tool open the Camera flex cable connector.

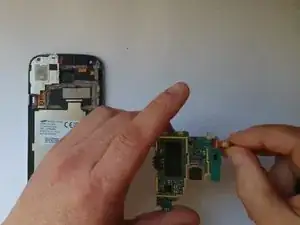

    • Carefully remove the camera.

    how about techno phones? i will love to know how to repair them as well. or are they the same perterns and process? thank you for your good works.

    georg nwaneri -

Abschluss

To reassemble your device, follow these instructions in reverse order.
