Samsung Galaxy Core Prime Back Camera Replacement

Geschrieben von: Adrian Sanchez
  • Kommentare: 0
Samsung Galaxy Core Prime Back Camera Replacement

Schwierigkeitsgrad

Difficult

Schritte

11

Zeitaufwand

15 Minuten

Einleitung

A problem you may find with your Samsung Galaxy Core Prime is a scratched camera lens. Instead of buying an entirely new phone you can instead replace the camera. For this guide you will need an iOpening tool, a metal spudger, a Phillips #00 screwdriver, or similarly shaped tools.

  1. SSZxcQtQi1QNnqWL

    • Turn the smartphone off by using the power button on the right-hand side.

  2. E3ACInHixkThOHCG

    • Turn the smartphone over so that the rear camera is face up.

  3. cXfVCc6bGRD3MQhH

    • Use your fingernail or a flat tool to lift the back cover.

  4. GyjtbBVJvHpb4ZfN
    GyjtbBVJvHpb4ZfN
    UUcdMPApTC5Wp4aV

    • Locate the battery near the bottom of the phone. The battery is square, flat, and is labeled 'SAMSUNG'.

  5. Eq2PXntItESGPBVN

    • Use your fingernail or a flat tool to lift the battery out.

  6. VPW1VUwZi1Mfg3cD
    VPW1VUwZi1Mfg3cD

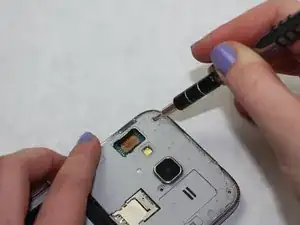

    ypMstBZHIs61PbWF

    • Use a Phillips #00 screw driver to remove all eight 4mm screws from the midframe.

  7. Uwdl6JXHtDbcEpH1

    • Heat the frame with a heat gun or hair dryer until the adhesive is loose.

    • Take care when using these heat tools.

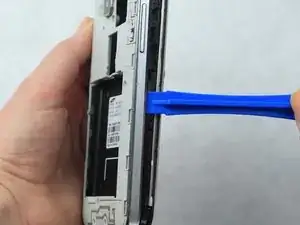

  8. JvxICFW3nvHtdOET

  9. LhOwVKpTWsbbgiGO
    LhOwVKpTWsbbgiGO
    RKLSISQMpRGLq54G

    • Disconnect the power ribbon on the left side of the phone either with your fingers or tweezers

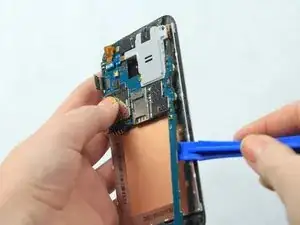

  10. UfB6uZFTCn3hAJwF

  11. 2mnR3IhvTavkfxIW

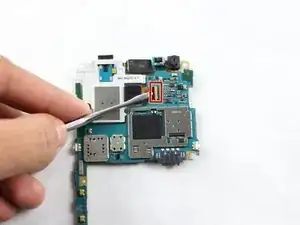

    2mnR3IhvTavkfxIW

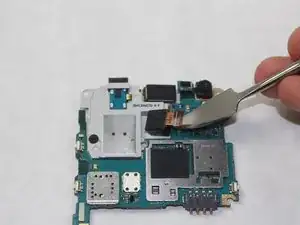

    X5BaYQbKejPQkOQI

    • Turn the Motherboard over and disconnect the ribbon connecting the camera to the Motherboard with an iFixit Metal Spudger.

Abschluss

To reassemble your device, follow these instructions in reverse order.
