Samsung Galaxy Core Prime Volume Buttons Replacement

Geschrieben von: Olivia Jensen
  • Kommentare: 0
Samsung Galaxy Core Prime Volume Buttons Replacement

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

15 Minuten

Einleitung

Users will be able to replace lost, broke, or scratched volume control buttons for the Samsung Galaxy Core Prime. This will enable the user to more easily control volume and improve the overall aesthetics of the smartphone.

  1. SSZxcQtQi1QNnqWL

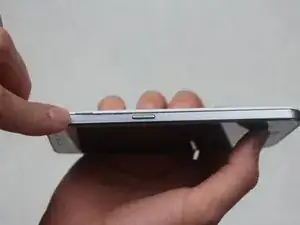

    • Turn the smartphone off by using the power button on the right-hand side.

  2. E3ACInHixkThOHCG

    • Turn the smartphone over so that the rear camera is face up.

  3. cXfVCc6bGRD3MQhH

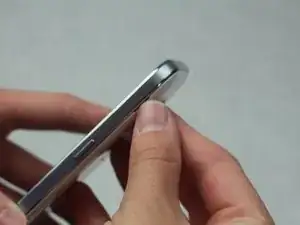

    • Use your fingernail or a flat tool to lift the back cover.

  4. GyjtbBVJvHpb4ZfN
    GyjtbBVJvHpb4ZfN
    UUcdMPApTC5Wp4aV

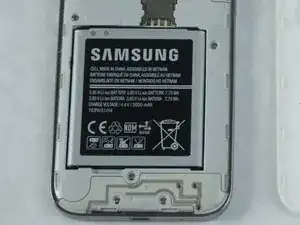

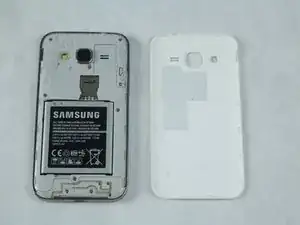

    • Locate the battery near the bottom of the phone. The battery is square, flat, and is labeled 'SAMSUNG'.

  5. Eq2PXntItESGPBVN

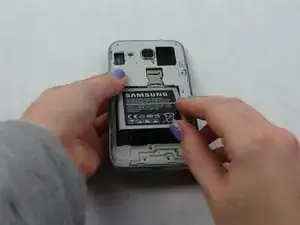

    • Use your fingernail or a flat tool to lift the battery out.

  6. HFOhVXa2IMkrRhRa
    HFOhVXa2IMkrRhRa
    SSlXJIyeEjSqaXaw

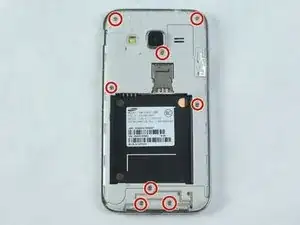

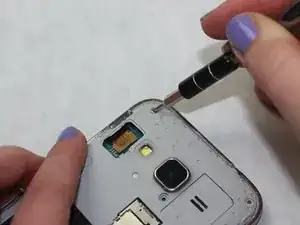

    • Use a Phillips #00 screwdriver to remove the eight 4mm screws from the midframe.

  7. RHpd1ycS1wwlbOsS

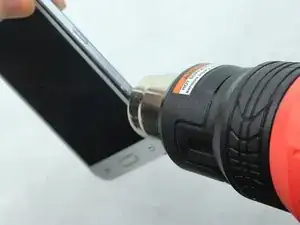

    • Flip the phone over (screen up). Use an iOpener to heat the frame. Do this until the adhesive is loose.

    • Use care when handling these heating tools!

  8. pCHOu6poiB3bRRdS
    pCHOu6poiB3bRRdS
    6SUHnLAYivyFLbgN

    • Use an iFixit Opening Tool or a similarly shaped tool like a guitar pick to lift the mid-frame.

  9. psgEfkEBNlCPQwaS
    psgEfkEBNlCPQwaS
    d2UXNuiL4t2HQlGL

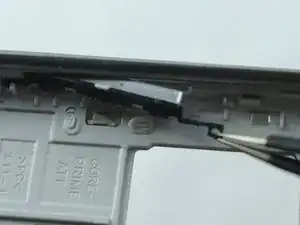

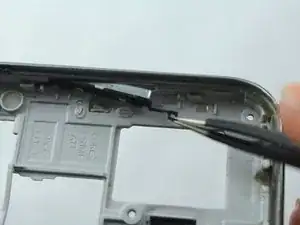

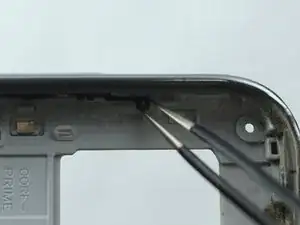

    • Use tweezers to unhook both of the rubber fixtures holding the volume button to the frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
