Samsung Galaxy Core Screen Replacement

Geschrieben von: ivan coene
  • Kommentare: 11
Samsung Galaxy Core Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

30 - 45 Minuten

Einleitung

  1. Ku3QDYGAVdbMkgg1
    Ku3QDYGAVdbMkgg1
    Eb5VCxBngcWPFnaQ
    2gK3rVaOLANYgFXs

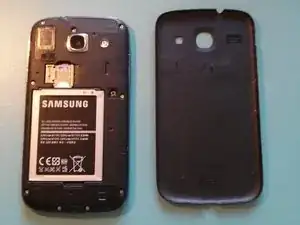

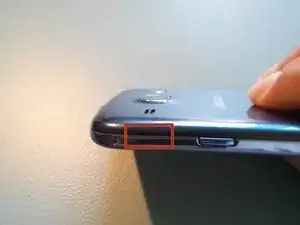

    • Flip the phone over and use your fingernail or an opening tool to remove the back cover.

  2. a1PoHHXFjhEEkDid
    a1PoHHXFjhEEkDid
    mZBMY15TxDAJtxTV

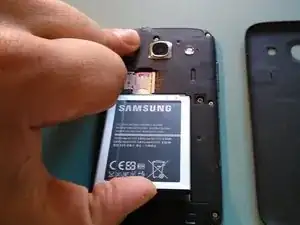

    • Remove the battery.

    • If your phone has a SIM card or MicroSD card, remove them.

  3. IaGIwPi6hRZn6NSR

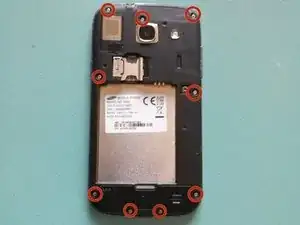

    • Remove the 9 Phillips #00 screws from the mid-frame.

  4. UrPewrGHdrPGoIvK
    UrPewrGHdrPGoIvK
    MIqqPCDfkoKytylH

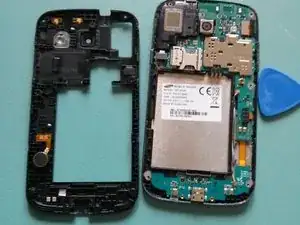

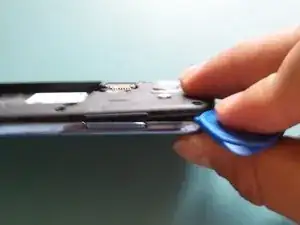

    • Use an opening pick to pry off the mid frame.

  5. X5DR5HaqLwYnBRxF
    X5DR5HaqLwYnBRxF
    tHRtX1pQjAy3gJBW

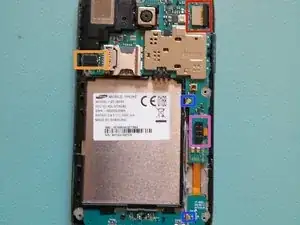

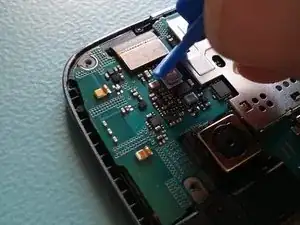

    • Disconnect the following ribbon cables from the motherboard:

    • The digitizer and LCD assembly.

    • Headphone Jack and Earpiece.

    • Daughter board flex cable.

    • Antenna connector.

  6. fJAypLcnsJTADhYv
    fJAypLcnsJTADhYv
    JZi3N31mDmNX4BYu
    ild3ITrhDrW4PCUt

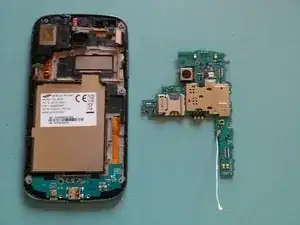

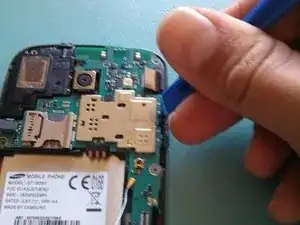

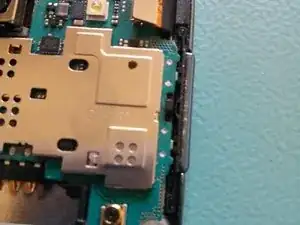

    • Use a plastic opening tool to remove the motherboard.

  7. BXrwQYkaSXJASnoT
    BXrwQYkaSXJASnoT
    sKjMnbHM3WLBYpGV
    HaYkOIwVjLvbyTKJ

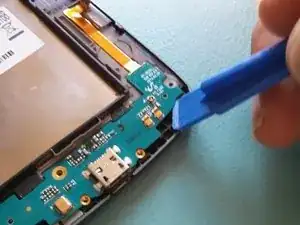

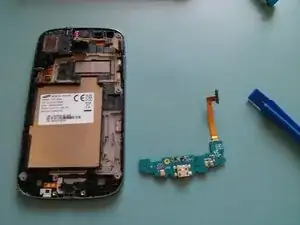

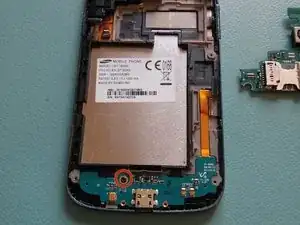

    • Remove the single Phillips screw that secures the daughterboard.

    • Remove the daughterboard.

    • The flex cable is glued, so exercise extreme caution, as excessive force can damage the cable.

  8. oNxZJOBcReMo5Umj
    oNxZJOBcReMo5Umj
    gqLNvgO21boMYHP2
    1QgC1S1Yl6Sxi6Ux

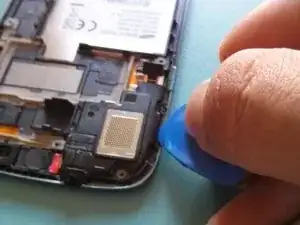

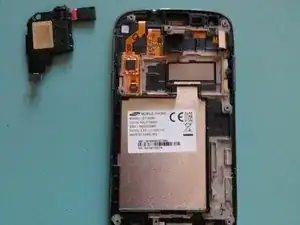

    • Use an opening pick to remove the audio jack.

  9. oYHBu5Ufx64xp3KP
    oYHBu5Ufx64xp3KP
    WEIPyrfFPiDgsDDn

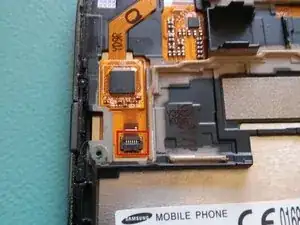

    • Disconnect the digitizer's ribbon cable.

  10. LVXpCLqmx6yVmRXH

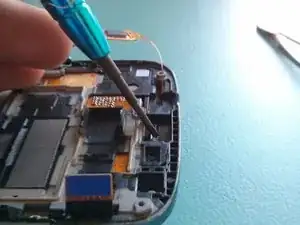

    • Push the earpiece mesh outwards to release it.

  11. 1KZLr5DyhQ6iYjL1

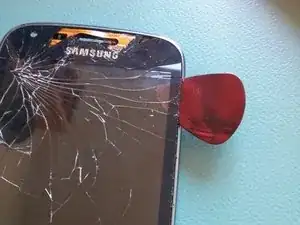

    • Use a heat gun or an iOpener to heat the digitizer and soften the glue securing it.

    • Use an opening pick to break up the glue around the edges of the digitizer.

    • You may apply more heat if needed.

    • Remove the digitizer and any broken glass.

Abschluss

To reassemble your device, follow these instructions in reverse order.
