Samsung Galaxy Express 3 Back and Recent Apps button Replacement

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

15 - 20 Minuten

Einleitung

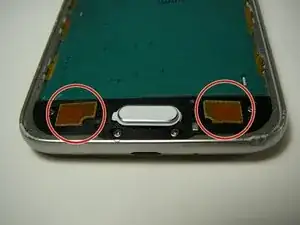

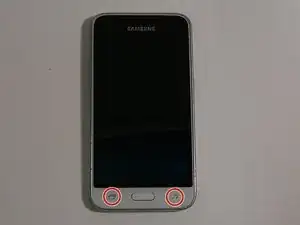

Don't panic if the back or recent tabs button stops working; just follow this relatively simple guide to replace them. You will need to remove the screen.

Werkzeuge

Schritt 1

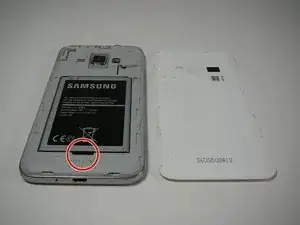

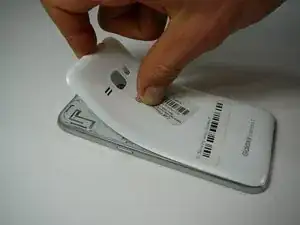

Locate the indent area highlighted in red and use either your fingernail or a Prying Tool (such as a guitar pick) to separate the back from the body of the phone.

Schritt 2

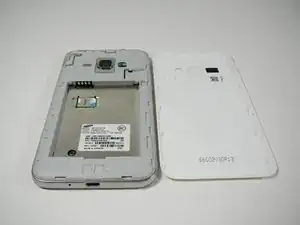

Once the cover is removed, locate the battery that reads "SAMSUNG."

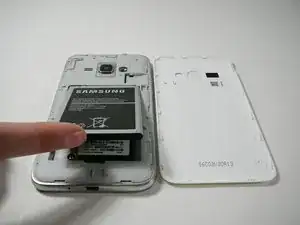

Use either your fingernail or a Plastic Prying Tool (such as a guitar pick) to lift up the bottom indent of the battery.
Do not use a metal tool, as it can cause injury.

Schritt 3

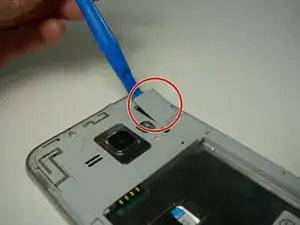

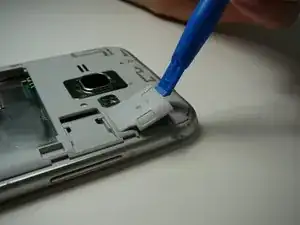

Use a Plastic Prying Tool (such as a spudger) to pop out piece shown.

Schritt 4

Detach the screen connector.

Schritt 5

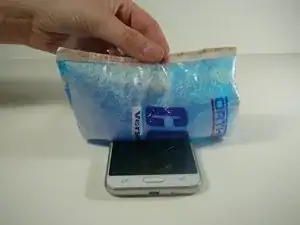

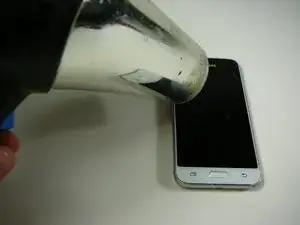

Use a blow dryer or heating pad to heat up the screen.
Do not skip this step, as it may result in a broken screen and/or LCD.
This step loosens the glue holding the screen in place.

How much time does it take

David Sapp - 05/04/20

Schritt 6

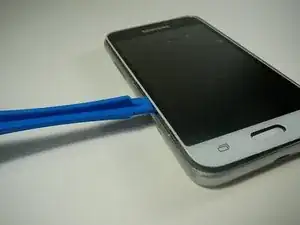

Use a Thin Plastic Tool (such as a guitar pick) or Plastic Prying Tool (such as a spudger) to lift out the glass digitizer and LCD screen around the edges.
Do this slowly and carefully, as both parts can crack very easily.
Ensure your tool is plastic, as a metal tool can damage the screen easily.
