Don't panic if your home button brakes; just follow this guide to replace it. You will have to remove the screen.

  1. Uu6CBEWRGfJPDiLB
    Uu6CBEWRGfJPDiLB
    3DNSK5YhVQW5Pgq3
    • Locate the indent area highlighted in red and use either your fingernail or a Prying Tool (such as a guitar pick) to separate the back from the body of the phone.

  2. EtCRTNDY5OSJF1DE
    EtCRTNDY5OSJF1DE
    biqZdDHnsnVAoMic
    CRE5tjicTdr4ro42
    • Once the cover is removed, locate the battery that reads "SAMSUNG."

    • Use either your fingernail or a Plastic Prying Tool (such as a guitar pick) to lift up the bottom indent of the battery.

    • Do not use a metal tool, as it can cause injury.

  3. WEynIHRNkkZEXqMQ
    WEynIHRNkkZEXqMQ
    JocXQ1DQWLCH3kPO
    • Use a Plastic Prying Tool (such as a spudger) to pop out piece shown.

  4. 41uCAVEDsCRFCacV
    • Detach the screen connector.

  5. DLtxWwAGbPetOdnI
    DLtxWwAGbPetOdnI
    LaLM1xOD3XBBsFoO
    • Use a blow dryer or heating pad to heat up the screen.

    • Do not skip this step, as it may result in a broken screen and/or LCD.

    • This step loosens the glue holding the screen in place.

    How much time does it take

    David Sapp -

  6. tTFlhXwKn1OJkNUa
    tTFlhXwKn1OJkNUa
    AxlESmSWOhHsfcTv
    sFZXdUxkUqSEtUdg
    • Use a Thin Plastic Tool (such as a guitar pick) or Plastic Prying Tool (such as a spudger) to lift out the glass digitizer and LCD screen around the edges.

    • Do this slowly and carefully, as both parts can crack very easily.

    • Ensure your tool is plastic, as a metal tool can damage the screen easily.

  7. FfybVECQMyWYaW6N
    FfybVECQMyWYaW6N
    VcFyGPU24yhxbtrU
    • Use a plastic tool to remove back and/or recent tabs circuit buttons.

    • Use a plastic tool as a metal tool can be dangerous to the phone or you.

  8. ArsEFw6NXITD4aiG
    ArsEFw6NXITD4aiG
    OJvyAD5ZgDWhxDip

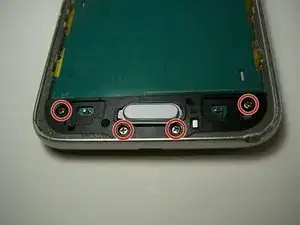

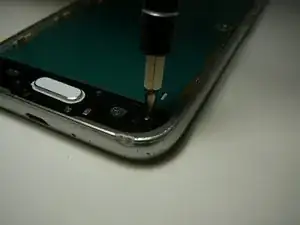

    • Use a #0 Phillips bit screwdriver to remove the four screws from the black, plastic piece surrounding the home button.

    • All four screws are the same size.

  9. sWyQxFWIdNSEipTl
    sWyQxFWIdNSEipTl
    musPgUAQfHN6ZDEP

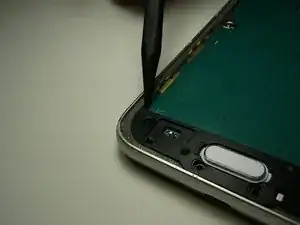

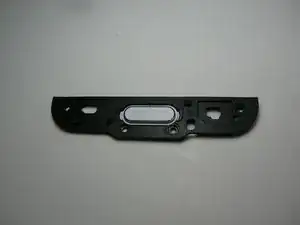

    • Using a sharp plastic tool such as a guitar pick or prying tool to pop up and remove the black, plastic piece.

    • Do not use a metal tool as it can be dangerous to you or the motherboard.

  10. Z23WX6obQHbomDiD
    Z23WX6obQHbomDiD
    ZuhXA5NxS54Xc3xq

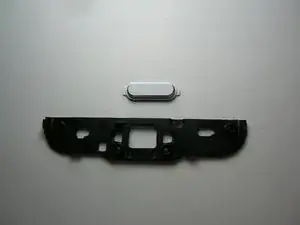

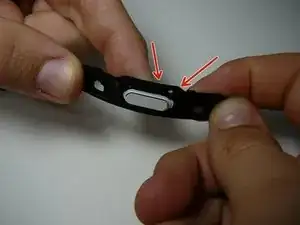

    • The white button will be connected to the black piece.

    • Slightly bend the black piece and gently push the white button until it pops out of the black, plastic piece.

Abschluss

To reassemble your device, follow these instructions in reverse order.
