Samsung Galaxy Express 3 Rear Camera Lens Replacement

Geschrieben von: Mack Johnson
  • Kommentare: 0
Samsung Galaxy Express 3 Rear Camera Lens Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 - 7 Minuten

Einleitung

Are your pictures showing up blurry or fuzzy? Simply follow this guide to replace the camera lens.

  1. Uu6CBEWRGfJPDiLB
    Uu6CBEWRGfJPDiLB
    3DNSK5YhVQW5Pgq3

    • Locate the indent area highlighted in red and use either your fingernail or a Prying Tool (such as a guitar pick) to separate the back from the body of the phone.

  2. EtCRTNDY5OSJF1DE
    EtCRTNDY5OSJF1DE
    biqZdDHnsnVAoMic
    CRE5tjicTdr4ro42

    • Once the cover is removed, locate the battery that reads "SAMSUNG."

    • Use either your fingernail or a Plastic Prying Tool (such as a guitar pick) to lift up the bottom indent of the battery.

    • Do not use a metal tool, as it can cause injury.

  3. JH5eIGEFRwZSNIq5

    • Carefully push a small pointed tool such as a plastic opening tool (or metal spudger if needed) underneath the camera lens in a corner.

    • Pry up each corner of the lens.

    • Be careful, especially if using the metal spudger, as if you push to hard it can cause damage to the device or yourself.

  4. bc1PPlvCLUkMemUV
    bc1PPlvCLUkMemUV
    WxCxfJopRkobDyVF

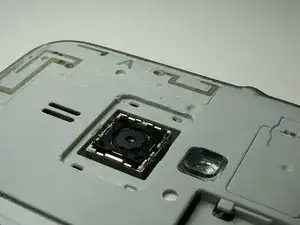

    • Slide your tool underneath one corner to the other to release the lens.

    • Make sure not to insert your tool too far as it can damage the camera.

    • When putting the new lens in make sure not to put to much force on it as it can break again.

Abschluss

To reassemble your device, follow these instructions in reverse order.
