Einleitung

  1. vMhJIH2qLdr4C4Lo
    • Turn the phone off and make sure your hands are clean. Use your thumb nail or a plastic spudger to pry open the back cover,

  2. mfAWoYtGjAVRNKWF

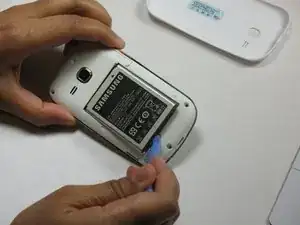

    • Use the plastic opening tool or your thumb nail to lift the battery out of the receptacle.

  3. leOyNLMZX2TXXAQa
    leOyNLMZX2TXXAQa
    3jfgOviBYPNaWIBK
    VGmHcPhBCvRiOaIi

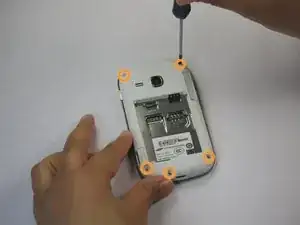

    • Remove the five 4 mm screws with a Phillips#00 screwdriver.

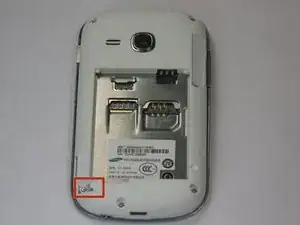

    • Make sure you remove the sticker hiding the screw on the left bottom corner.

  4. J6OCQyAKjnoZjRQp
    J6OCQyAKjnoZjRQp
    MxMOcvBgHVid6flR

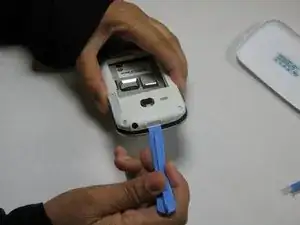

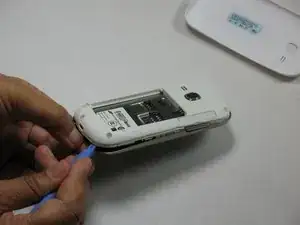

    • Using the plastic opening tool pry into the bezel to remove the mid-frame

    • Continue moving the plastic opening tool around the mid-frame to separate it from the display assembly.

    • Be gentle the plastic mounting clips are very fragile. Pay extra attention when working around the volume button.

  5. FiAxHlnwYqB1TQnU

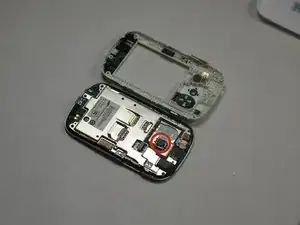

    • After separating the two frames, you will have access to the camera

  6. 5xZrfdUeUwJUPQHw

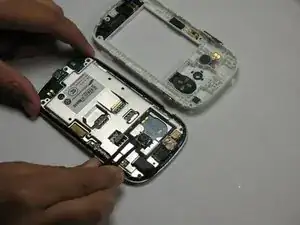

    • Pull the camera off the system by using the tweezers. Perform this step with caution.

Abschluss

To reassemble your device, follow these instructions in reverse order.
