Samsung Galaxy Fame S6812i LCD Screen Replacement

Geschrieben von: Sarah Brueck
  • Kommentare: 0
Samsung Galaxy Fame S6812i LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

30 - 45 Minuten

Einleitung

  1. pwSF2uqA42TaJAWw

    • Make sure that the phone is turned off. Then use your thumb nail or a plastic spudger to pry open the back cover.

  2. GbTHq6iiISLCCePU

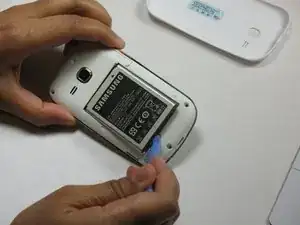

    • Use your thumb nail or the plastic opening tool to lift the battery out of the device.

  3. Jk4iAfrDdtTctICO
    Jk4iAfrDdtTctICO
    TvtKmNZkRkQOHrPH

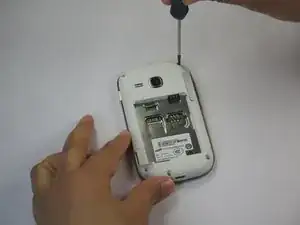

    • Remove the five 4 mm screws with a Phillips#00 screwdriver

    • Note: One of the five screws is hidden under a sticker on the bottom left corner of the device.

  4. jvtZBNMfdWuO4sPF
    jvtZBNMfdWuO4sPF
    eN2wX4tZQFqsFaGm

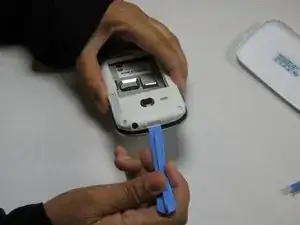

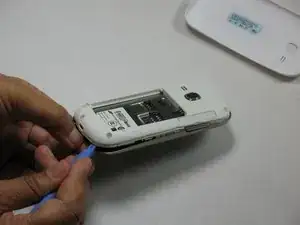

    • Use the plastic opening tool to pry into the bezel to separate the mid-frame from the device

    • Be gentle; the plastic mounting clips are very fragile. Take extra care when working around the volume button.

  5. LEXUYyFRQ1QSNWAE
    LEXUYyFRQ1QSNWAE
    BAh2ADXtFRYQtmhL
    JjS6Wj1uTqSOoiT1

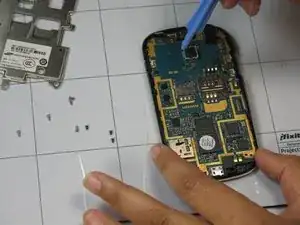

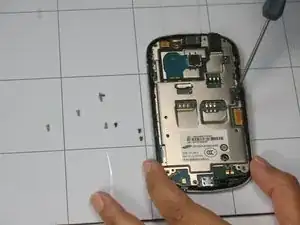

    • Use the Phillips#00 screwdriver to remove the five black screws.

    • Use the plastic opening tool to lift the two ribbons.

    • Remove the metal internal cover to expose the motherboard.

  6. 45IT2gxeFu1qshyL

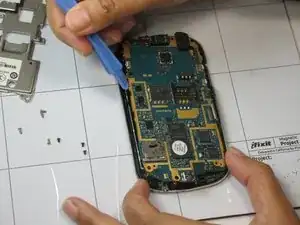

    • Use the plastic opening tool to lift the motherboard out of the device.

  7. dVVgEP1agqpDMApH
    dVVgEP1agqpDMApH
    fjvyGVd5r6v1V1Y1

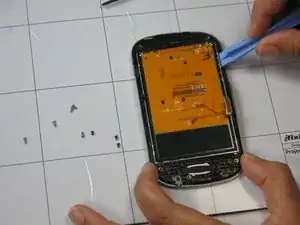

    • Once you have removed the motherboard you will have access to the LCD screen.

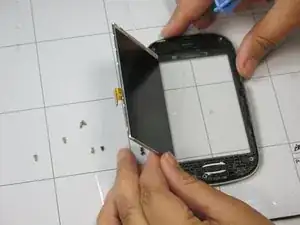

    • Use the plastic opening tool to remove the damaged LCD screen from the display assembly.

    • Put the new LCD screen in place and reassemble the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
