Samsung Galaxy Fame S6812i LCD Screen Replacement

Geschrieben von: Taylor
  • Kommentare: 0
Samsung Galaxy Fame S6812i LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 15 Minuten

Einleitung

  1. Um5QKk1QXITJgpfy
    Um5QKk1QXITJgpfy
    eNLtDbpfEykZNuBJ

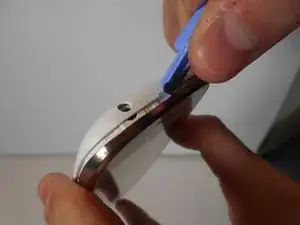

    • Locate the small indent in the top of the device and use your nails or the plastic opening tool to separate the cover from the mid-frame.

  2. jxZuERFQNXIC2VAo
    jxZuERFQNXIC2VAo
    piBvQlNIyGoO6fGR

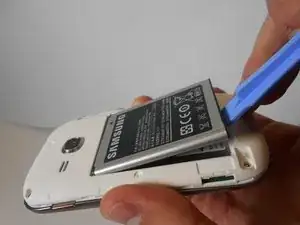

    • Locate the indent on the bottom left corner of the battery compartment. Use your fingers or the plastic opening tool to lift the battery from the device.

  3. BqNWsAiawQQVc2XY
    BqNWsAiawQQVc2XY
    sQMyPlxWTgDu4jFM
    w4ZDTLpPsW3XidgQ

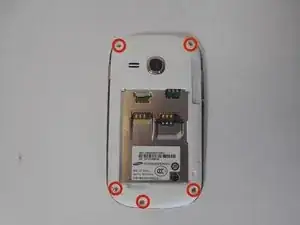

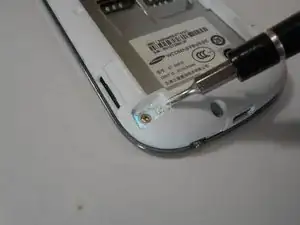

    • Remove the five 3mm screws along the top and bottom edges of the device with the Philips #00 screwdriver.

    • One of these will be hidden under a piece of reflective foil. Breaking this will void the warranty.

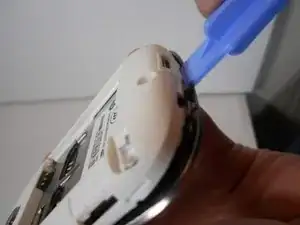

    • Use the plastic removal tool to work pry the mid-frame from the device.

    • This may take some effort, so try working around the edges slowly as to not break anything.

  4. gh5C5RhfEVNu2bRA
    gh5C5RhfEVNu2bRA
    1NbuAekEyfPeAJNC
    CFsFSQRCIYDKsuiP

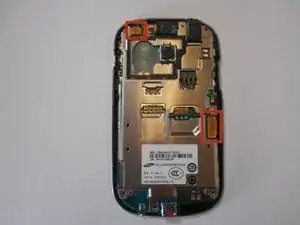

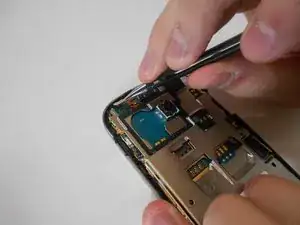

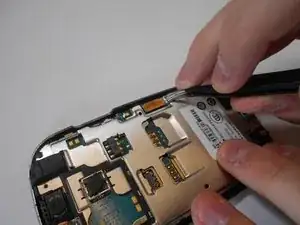

    • Carefully use the pointed end of the spudger to disconnect the ribbon connections on the motherboard.

  5. iBenKIvK4YJrMIvj

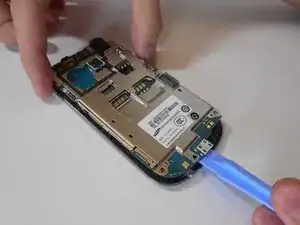

    • Wedge the plastic opening tool between the motherboard and front plate to dismount the motherboard and chassis from the front plate of the phone.

  6. wGU33he55xFVtIrL
    wGU33he55xFVtIrL
    6SqOmGlcpZOFLJbN
    mR6pUBdySLJNfoNn

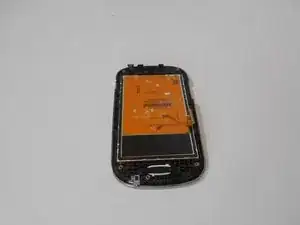

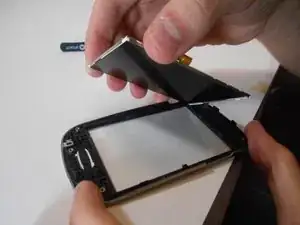

    • Use one side of the tweezers to pry the LCD off of the front plate of the phone.

    • Work in a clean environment and do not touch the inside of the plastic screen cover or the face of the new LCD Screen. These cannot be cleaned once the device is reassembled.

Abschluss

To reassemble your device, follow these instructions in reverse order.
