Samsung Galaxy Fame S6812i Motherboard Replacement

Geschrieben von: Taylor
  • Kommentare: 1
Samsung Galaxy Fame S6812i Motherboard Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

You will be learning how to replace the motherboard.

  1. FcU1jeWOWrCRs6HJ
    FcU1jeWOWrCRs6HJ
    PITyyviZyPkfNAdP

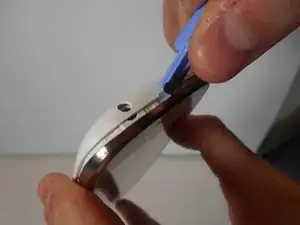

    • Locate the small indent in the top of the device and use your nails or a spudger to separate the cover from the mid-frame.

  2. s6GfYRtHgTRpucfe
    s6GfYRtHgTRpucfe
    UlMk1AbCuZbebaYw

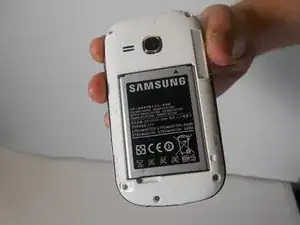

    • Locate the indent on the bottom left corner of the battery compartment. Use your fingers or the plastic opening tool to lift the battery from the device.

  3. s3RsnYooTGQRMe3I
    s3RsnYooTGQRMe3I
    baZxnCRidTQEVlgy
    tP4Ou4udisIQB6s1

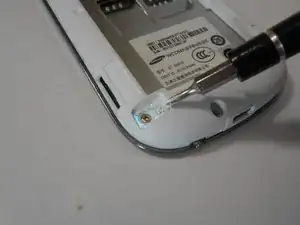

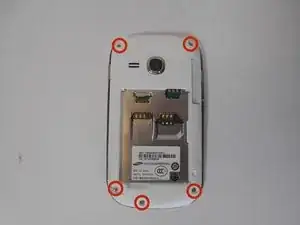

    • Remove the five 3mm screws along the top and bottom edges of the device with the Philips #00 screwdriver.

    • One of these will be hidden under a piece of reflective foil. Breaking this will void the warranty.

    • Use the plastic removal tool to work pry the mid-frame from the device.

    • This may take some effort, so try working around the edges slowly as to not break anything.

  4. tY1knOGDPiktdsNj
    tY1knOGDPiktdsNj
    IVipfUJQSrASsXaB
    nKVxRXH4ZUgWSvER

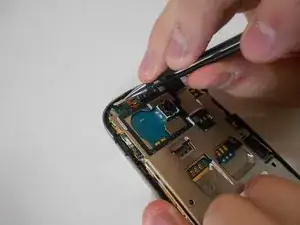

    • Locate the two ribbon cable connections on the motherboard. GENTLY use the pointed end of the spudger to disconnect the cables. Lift the motherboard out of the phone.

  5. eCiN6lG2H2dhJXZr

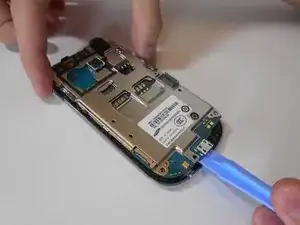

    • Using your fingers or a plastic opening tool, carefully lift the motherboard assembly from the phone.

  6. ns2YcaHasOkkcPKB
    ns2YcaHasOkkcPKB
    AlSs5tca2P44epRe

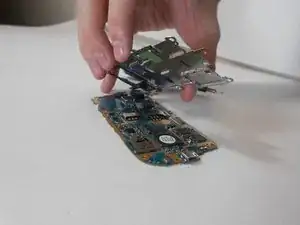

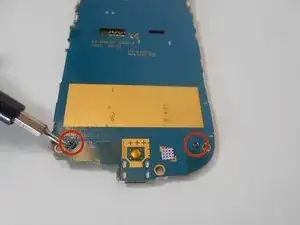

    • On the front face of the motherboard, locate the two #00 Phillips head screws. These hold the SIM card chassis in place.

    • Keep these screws separate from the back plate screws.

Abschluss

To reassemble your device, follow these instructions in reverse order.
