Einleitung
Use this guide to replace your Samsung Galaxy Fame S6812i's speaker.
-
-

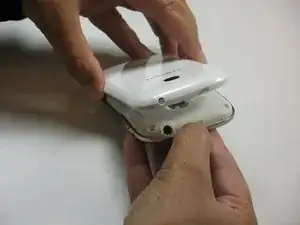

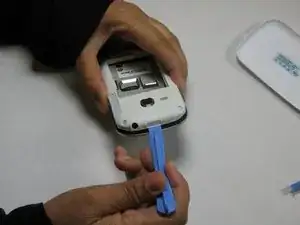

Turn the phone off and completely. Use your thumb nail or a plastic spudger to pry open the back cover,
-
-
-

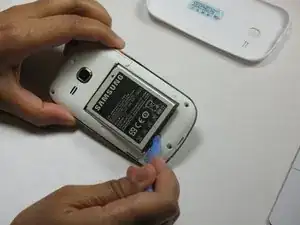

Use the plastic opening tool or your thumb nail to lift the battery out of the receptacle.
-
-
-
Remove the five 4 mm screws with a Phillips#00 screwdriver.
-

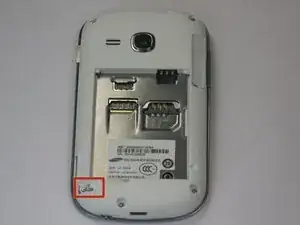

Make sure you remove the sticker hiding the screw on the left bottom corner.
-
-
-

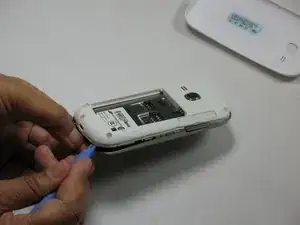

Using the plastic opening tool pry into the bezel to remove the mid-frame
-
Continue moving the plastic opening tool around the mid-frame to separate it from the display assembly.
-
-
-

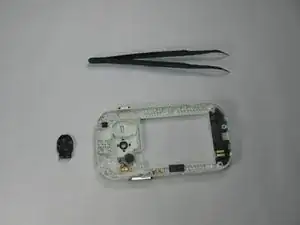

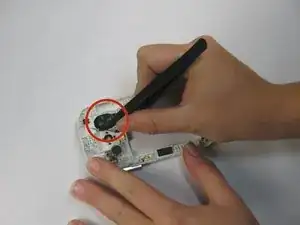

Pull the speaker off the system by using the tweezers. Perform this step with caution.
-
Replace the new speaker and re-assembly the phone.
-
To reassemble your device, follow these instructions in reverse order.
