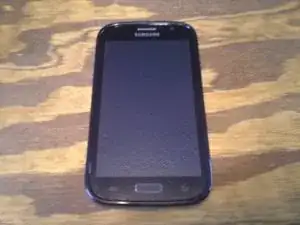

Samsung Galaxy Grand Glass and Digitizer Replacement

Before starting, you need to remove the back case, the battery, SIM card and Micro SD Card.

Next remove the screws around the perimeter of the device.

With a prying tool, carefully lift the plastic case covering the logic board and set aside.

You need to place your prying tool in the space between the screen and the case and lift the plastic case towards the back of the phone. Be careful around the buttons.

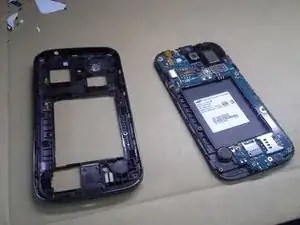

Here you can see the bottom casing separated from the top, now exposes the motherboard.

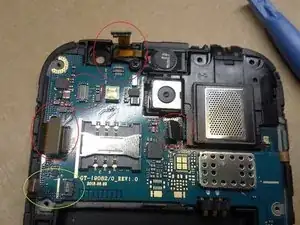

Remove the cables circled in red by carefully lifting up on them with a prying tool.

Remove the flex cable with the green circle by lifting the black clip to the right with a prying tool. See second picture, the clip lifts up and towards the cable (note the line on the logic board. This is how it needs to go back!) Remove the front facing camera and set aside.

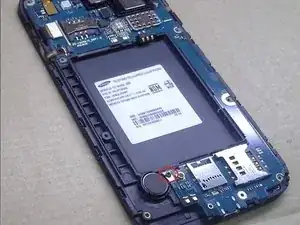

There is one screw securing the logic board at the bottom next to the Micro SD slot. (Circled in red in third picture)

Remove the logic board from the frame (paying careful attention to the flex cables) and set it aside.

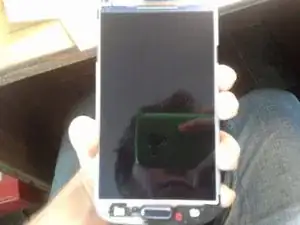

Now that we have removed the logic board we can safely remove the glass and digitizer.

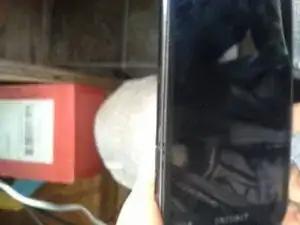

With a heat gun about 3-5 inches above the device, heat a section to enter with our prying tool. Slide the prying tool under the glass (Try to keep your prying tool from going too deep under the bezel of the glass. FAILURE TO DO SO MAY SCRATCH THE LCD.)

Go all the way around the screen (be sure to heat if you encounter any resistance. (The adhesive is very easy to get through with a tool when hot) When prying the glass up, be careful around the back button and menu buttons, they can stick to the glass.

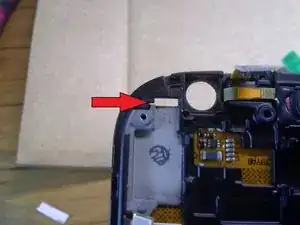

Once you have pried the glass up, set the home button aside. Release the clip holding the digitizer cable. Now pull the cable through the housing of the phone.

Be sure to remove all adhesive and put new adhesive in its place.

Route the new digitizer cable through the housing in the phone and insert into slot in logic board. The lines on the cable will match the lines on the motherboard. Replace the home button (be sure to test it for that good ol' click!) and secure the glass.

Repeat the steps in reverse order for reassembly.

Once you have secured the logic board screw, front facing camera, and pushed all flex cables back in place, insert the battery, turn the device on and test the screen. If device tests successful, reassemble entirely. (I always test my devices before putting them back together and I recommend you do the same, it'll save you time and headaches!)

Congratulations, you did it!
