Samsung Galaxy Grand Prime Micro USB Port Replacement

Geschrieben von: Kyle Ruff
  • Kommentare: 7
Samsung Galaxy Grand Prime Micro USB Port Replacement

Schwierigkeitsgrad

Difficult

Schritte

12

Zeitaufwand

30 - 40 Minuten

Einleitung

This guide is needed when you have a faulty charging port.

  1. Wjav2uKR6AOpKjln
    Wjav2uKR6AOpKjln
    X125VW26yDbWZCxQ
    WrYKIEgdxp25hpdT

    • Remove the back cover of phone by lifting up on the back cover tab with the blue plastic opening tool.

    • Go around the edge of the back cover to completely remove it.

    Thanks so much. I was getting seriously annoyed. This worked for me. However, I'll be getting another battery just in case. This helped big

    Ana -

  2. VoP44MWIaVFR5mkN
    VoP44MWIaVFR5mkN
    jbxkievERlNUqeaQ
    dOLtGXSvRZWynocF

    • Remove the old battery by lifting up on the thumb tab.

    • Periodically clean the brass terminals on the battery and the phone. Place a minute amount of ISO on a Q-tip and gingerly clean the connections.

  3. iMGBYGO6d2X6GoGQ
    iMGBYGO6d2X6GoGQ
    6QZtaHHKdSowjqO2
    TiTFaiQDYRYXlrAQ

    • Remove the nine 4mm screws screws from the midframe with a Phillips #000 screwdriver.

  4. nWgcMmZ5eMbHME6F
    nWgcMmZ5eMbHME6F
    nTcYHL1mMgYmAesL

    • Wedge the blue plastic opening tool in between the front and side panel.

    • Move the blue plastic opening tool around the edges between the front and side panel.

  5. P6fUhv1o6JeSIUje
    P6fUhv1o6JeSIUje
    ELRvJZTfajuDiCl2

    • Make sure that you detach the mid-frame from the inside too.

  6. KYXSqrjtEOgI5XSY
    KYXSqrjtEOgI5XSY
    wKqc1WWbZUAORKq4

    • Unhook the ribbon cable clip with the plastic opening tool and remove the audio jack.

    Hello: Do i have to buy and or replace the audio jack?? If so is it connected by wires, or do i just unplug the audio jack n rreplace it with a new one????

    If i am to just put a new audio jack in, where can i buy one to put in my phone??

    Stephen Miller -

  7. RXjQZvhtTXveJRJl
    RXjQZvhtTXveJRJl
    Iv13Ve3BupukmGYO

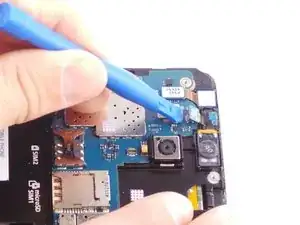

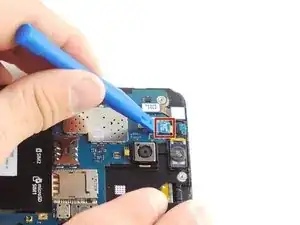

    • Use the plastic opening tool to unhook the ribbon cable clip.

  8. I2dwSVJRvFZpY26U
    I2dwSVJRvFZpY26U
    CmYNM31TZHCBxXyE

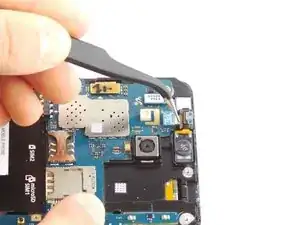

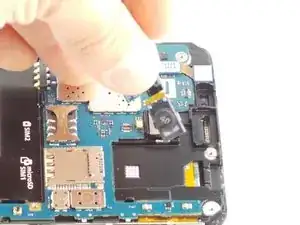

    • Gently pull on the connector with the tweezers until the speaker comes off.

  9. vxSTlTY3fnobPnyB
    vxSTlTY3fnobPnyB
    LunSCgrAinKwOhea

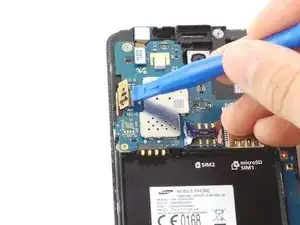

    • Unhook the other ribbon cable clip to the screen with the blue plastic opening tool.

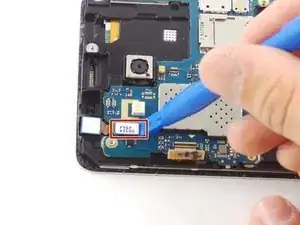

  10. HVcFinph6BCbJtmT
    HVcFinph6BCbJtmT
    pfQVQy6eZPmeNAlj
    6J6cm3BTCyOZQDEk

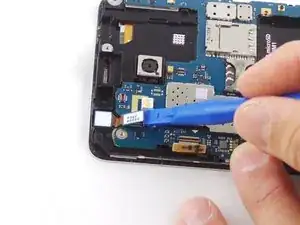

    • Unhook the ribbon cable clip to the front camera.

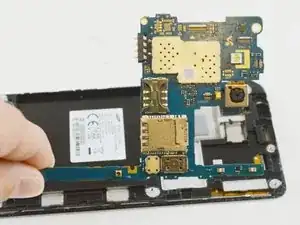

    • Lift the motherboard up and out of the device.

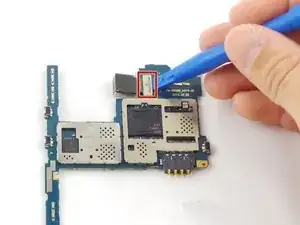

  11. J4n2jCyHMbhKuCZI
    J4n2jCyHMbhKuCZI
    kpARPdSPTryY6oMD

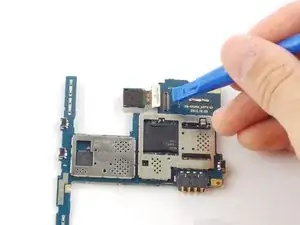

    • Remove the motherboard and unhook the ribbon cable clip to the back camera.

    Sir delivery hoga or price kitnaa

    Kundan Rana -

  12. jGMN25LqYEalKhMC
    jGMN25LqYEalKhMC
    cYp1OEHXWmsfpvPB
    c2dHuoqYRCPMjooZ

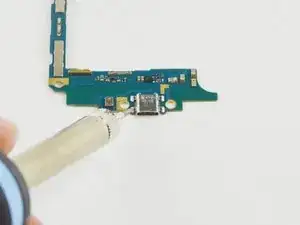

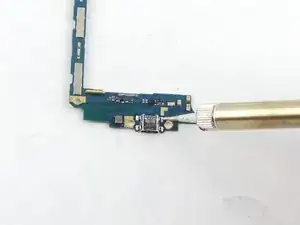

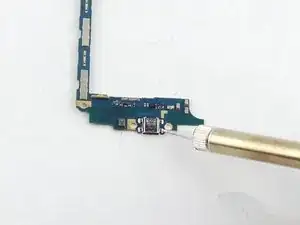

    • Using a soldering iron to solder off the charging port.

    • Be careful soldering iron gets extremely hot.

    Is there any special type of soldering tool I need like a heat gun or can we just use the one shown in the picture?

    Osaac orti -

    I dont't understand what you are supposed to do after removing the USB port. Where do you get a new one to replace it with?

    Ed Langer -

    On the “tools needed” part it says nothing about needing a soldering iron and it says you don't need a new part??? Is this because sometimes the solder points break and you just have to hear hem to reattach I am super confused here.

    Can you buy a whole new part with the charge port already soldered so you can just screw it in that would make sense with the tool list provides but not the part list provided and if you don't need a new part then you woulf for sure need a soldering tool of some kind so the parts list would be right but the tool list wrong it cannot be both.

    Thomas Evans -

    Classic iFixit guide that ends at the halfway point assuming you can figure out the rest from there.

    You will need to get a replacement micro usb port from eBay or digikey or the like and solder that back on. You will need a very very fine point soldering iron tip and a careful hand.

    martin8777 -

Abschluss

To reassemble your device, follow these instructions in reverse order.
