Samsung Galaxy J1 Glass Screen Replacement

Geschrieben von: Sean Kramer
  • Kommentare: 2
Samsung Galaxy J1 Glass Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

  1. fhKIYu1a2HgYncSO

    • Insert a finger nail or plastic opening tool between the back cover and the device.

    • Gently pry the rear cover off of the back of the phone.

  2. l5OcAi5kCJOmjwCE
    l5OcAi5kCJOmjwCE
    ePJBflBDuFnDoPKR

    • Using a finger, pull the SIM card down out of its slot.

    • Remove the SIM card.

    • The pictured device is missing the SIM card and battery.

  3. YKUP3SALs1KRWZ6N

    • Using a Phillips #00 screwdriver remove the eleven 3 mm screws.

  4. 1HfFU3PqydabS6hR
    1HfFU3PqydabS6hR
    shVR1DfZmX5RJLXA
    uD2BJjUAiN3NFYnH

    • Insert a plastic opening tool between the screen and the back of the device.

    • Starting at the bottom of the device, gently slide the tool along the edges of the screen.

    • Gently pry the main assembly from the midframe of the device.

    • When removing the main assembly, pry gently so as to not crack the glass screen or break any clips within the device.

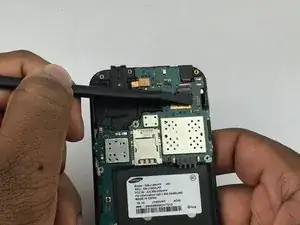

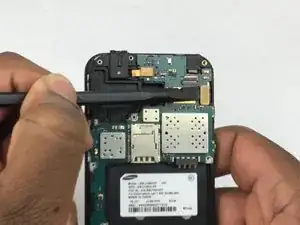

  5. qFA1opTVVLGonAVZ
    qFA1opTVVLGonAVZ
    Uv3n2UyEcRlhQux2

    • Using the flat end of a spudger, disconnect the digitizer cable connector.

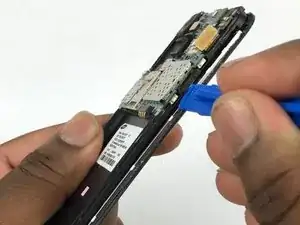

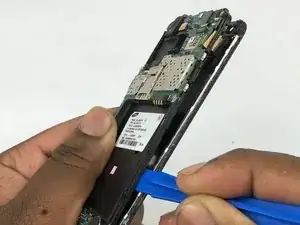

  6. srvSNt1wYLggjjV4
    srvSNt1wYLggjjV4
    jpKcvsOiSQL1WYwh

    • Using a plastic opening tool pry between silver digitizer and black back piece.

    • Slowly slide plastic opening tool around the screen to loosen the adhesive.

    • Be careful not to tear the digitizer cable when threading it through the plastic housing.

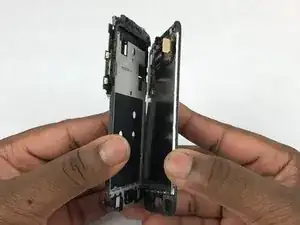

  7. 1dCopFSHTFPEQYSE

    • Carefully separate display assembly from the plastic housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
