Einleitung

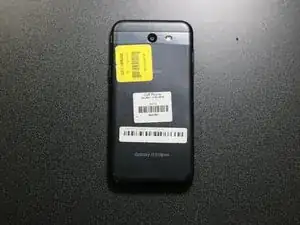

  1. hfG14vXpNSWCPKtp
    • Flip the phone face down on its screen.

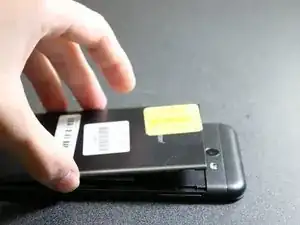

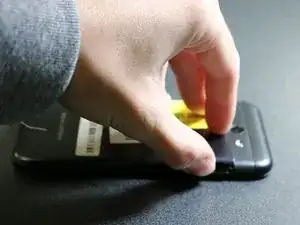

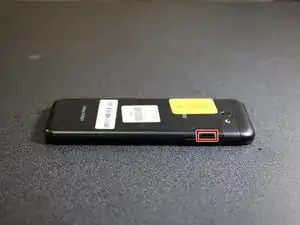

  2. ElNML1SfU3RpPlQD
    ElNML1SfU3RpPlQD
    BZxCnFZFUWDET1xO
    HyXjiXOO1lAOAlDy
    • Pull up on the small indention on the right side edge and remove the back portion of the phone.

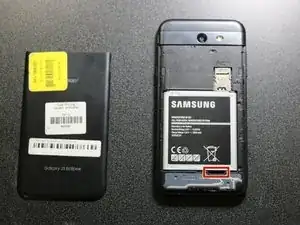

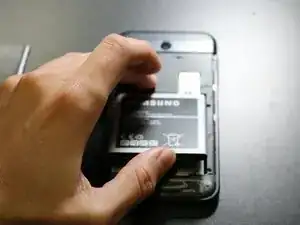

  3. MVd6pmI6K4XijTMb
    MVd6pmI6K4XijTMb
    AAaGchcIXnnZsI4U
    4BomQ5nddoGK4ASa
    • After removing the back of the device, locate the slot below the bottom right corner of the battery and use the tip of your finger to remove it.

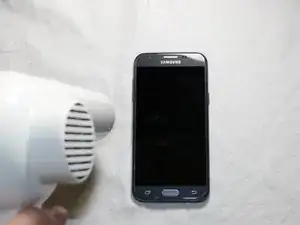

  4. udrxbPLMVbGtfFup
    • Use a heat gun or hair dryer to heat up the front edges of the phone for about two minutes. Stay approximately six inches away from the screen to prevent phone damage.

    • Do not apply heat to any one edge of the phone for longer than a few seconds. Instead, use a continuous motion around the phone's edges.

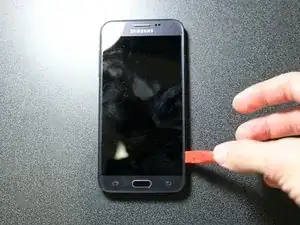

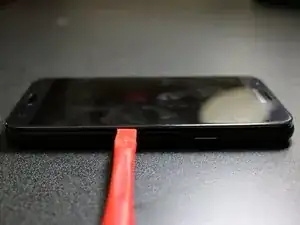

  5. YKC1FCeYHHdDrOgJ
    YKC1FCeYHHdDrOgJ
    R4BLyW2BDqTPx2hR
    • While the screen adhesive is still warm and flexible, insert a pry tool or plastic card between the glass display and the frame of the phone.

    • Slowly slide another pry tool around all the edges of the phone in order to break the adhesive's bond to the display.

    • When using the pry tool, do not use too much force or the phone's internals could be damaged.

    • Do not insert your tool more than 1cm into the top edge of the phone to avoid damaging the fragile cables.

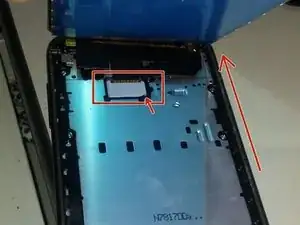

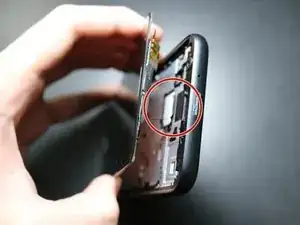

  6. O5l5ey1d2Pd3HyXl
    O5l5ey1d2Pd3HyXl
    sJlDalYALtlwCmdG
    ZGLjPAypBXvYVDN1
    • Gently lift lower side and loosen all edges to hinge screen up from bottom.

    • Do not try to completely remove the display from the frame yet. Simply try to loosen up all the edges.

    Top half??? That is where cable is located, the most likely to be damaged. NO, use lower side and bottom half, then gradually loosen top edges. Hinges up from bottom.

    B. A. Computer Services -

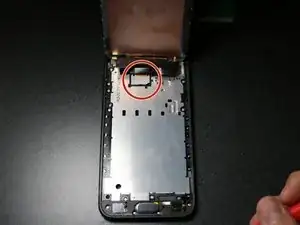

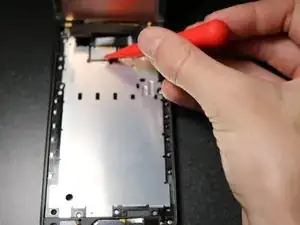

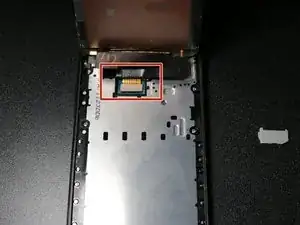

  7. ON5fKnE5Q1BxpGEo
    ON5fKnE5Q1BxpGEo
    oltJKpkfHj4CIvZD
    5KgSOTmTlTUmquLi
    • Use your prying tool to slowly pry up on the bottom right corner of the white cable guard, exposing a thin ribbon cable connector.

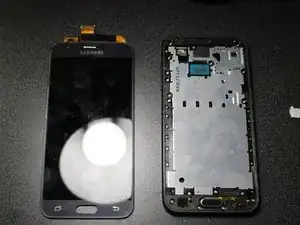

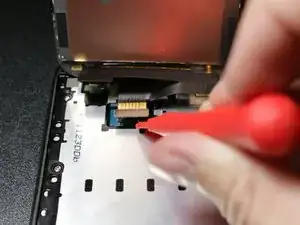

  8. lHdoIfCSbySsCl6m
    lHdoIfCSbySsCl6m
    qbdWDlIrxPRVnVRK
    kIEKAVvmHX2CrA1h
    • Pry up the ribbon cable connector revealed from under the cable guard and remove the display from the device.

    • Clean the residue from the phone edges before re-assembling phone with new screen.

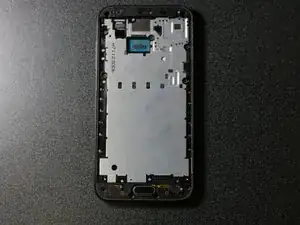

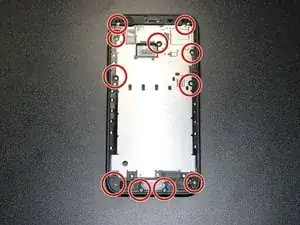

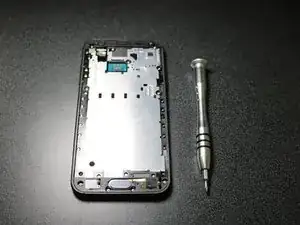

  9. YuqyDsLXYOa1mfAP
    YuqyDsLXYOa1mfAP
    by36xFTZYA3nISLK
    GYYBqOnCRKQeNcPq
    • Locate all eleven screws attaching the metal plate to the frame, and remove them using a PH00 screwdriver bit.

    • Keep track of the eleven screws they are essential to close the phone back again.

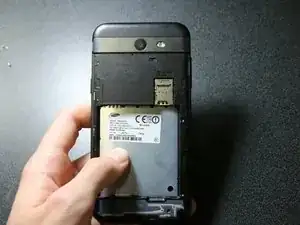

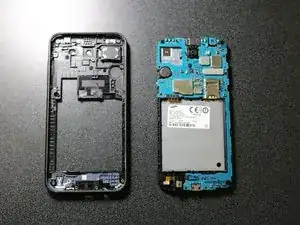

  10. WfJYyoMrCFgCVTeN
    WfJYyoMrCFgCVTeN
    E2RjYMDYlJdZqc64
    • While holding the phone , flip it to the back side and use your two thumbs to push on the metal area where the battery was, this should release the back frame from the device.

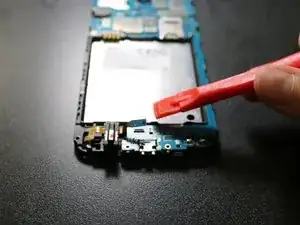

  11. W1GJGHBFmrG4QU5d
    W1GJGHBFmrG4QU5d
    gmVRAyfena4NN2wH
    • Locate the blue ribbon cable attached just below the battery slot . This is the connector for your audio jack.

    • Use your pry tool to release the cable from the motherboard

Abschluss

To reassemble your device, follow these instructions in reverse order.
