Einleitung

  1. Jd2XmygZGgvAgSJP
    • Pry the back off and take the battery out of the device

  2. sgfCYQ2UP4KYqRTi

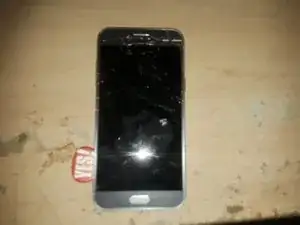

    • The adhesive that holds the screen in place is easily meltable (Unlike a certain smartphone maker). If you don't have a heat gun, a hairdryer easily gets hot enough to make the adhesive melt.

    • While melting the adhesive, use something like a iFixit opening pick (or a guitar pick in a pinch). Make sure not to go very deep or you will damage the LCD inside.

  3. BBNABwHNWSdyRQmW
    BBNABwHNWSdyRQmW

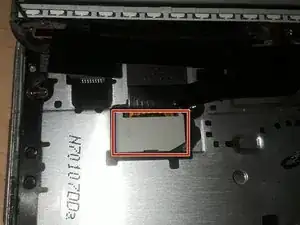

    RZardvAo1n3tNF5i

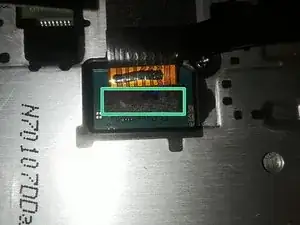

    CXclxwrbMjK4f2JQ

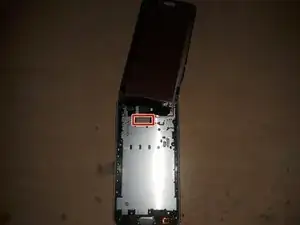

    • Carefully lift up from the bottom of the phone, and lean the screen over the top of the phone.

    • Pry the tab (noted by the red box in the pictures) up to expose the connector.

    • The connector is noted in the green box. Use a iFixit opening pick (or guitar pick) to gently pry it up off the motherboard

  4. LSDyL5lFNXUTJHPr
    LSDyL5lFNXUTJHPr

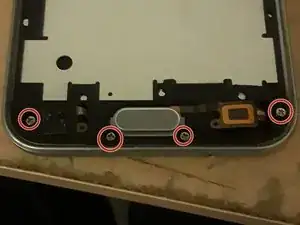

    kGXqGPvinY1UMEpc

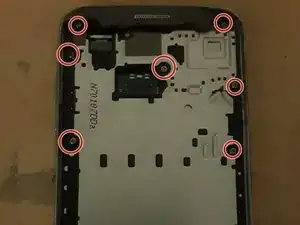

    • Take out all 11 screws noted by the red circles around them in both pictures with a #00 Philips head screwdriver. All these screws are the same size, so don't worry too much about where they all go. These are also the only screws in the phone.

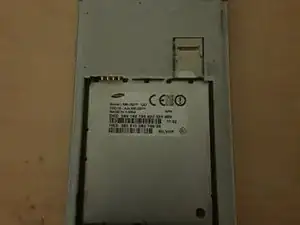

  5. PLvPnMfZSDnSaIgs
    PLvPnMfZSDnSaIgs

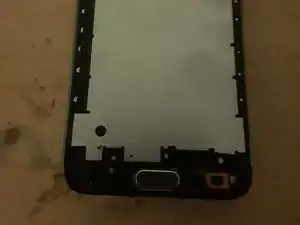

    f4ErTLUweqCwc6SZ
    • After all the screws are out, apply light pressure to the back of the phone where the battery was until you hear clicking noises.

    • After you hear clicking noises, get your ifixit opening pick (or guitar pick) and turn the phone around to start prying around on the other side. Be gentle, as the pick with be in contact with the bare circuits.

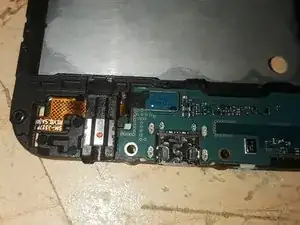

  6. AMpOleXjkZvVfNBx
    AMpOleXjkZvVfNBx
    jkbbm4gPdYQtKGbs

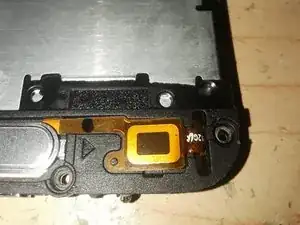

    qGWXmMZAlHrhscQs

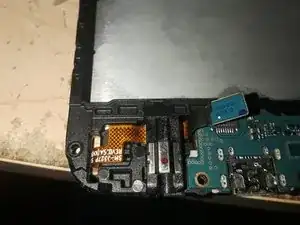

    • The headphone and home button are held in with a single connector. Use an iFixit opening pick (or guitar pick) to gently pry it off the motherboard

    • The headphone jack is connected to the home button and is inside the chassis of the phone. Do not attempt to remove the headphone jack by tearing it out.

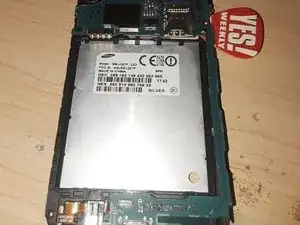

  7. cAyU3NHsPqEhDTMP
    cAyU3NHsPqEhDTMP
    SWUuAgDYtXRDQ1dU

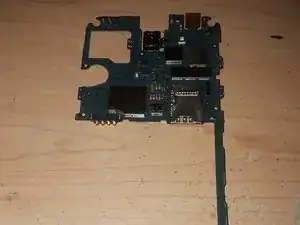

    • Gently go around the edge of the motherboard slowly prying it out, starting from the micro USB connector up.

  8. FroMxu4uk1CNmjIq
    FroMxu4uk1CNmjIq
    NQ2lBGxUKnTQbCAH
    tyCDaiAwsvEWpMHI

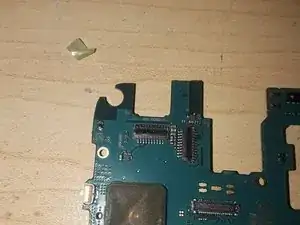

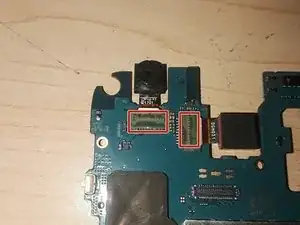

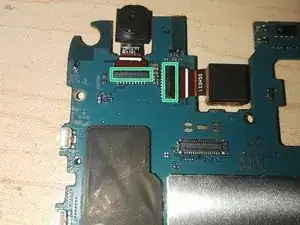

    • Lift the green tape (noted in red) that is over the camera connectors, and use the iFixit opening pick (or guitar pick) to lift up the tabs (noted in green) that hold the ribbon cable in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
