Samsung Galaxy J3 Emerge Home Button and Audio Jack Replacement

Geschrieben von: Hugh Cosculluela
  • Kommentare: 0
Samsung Galaxy J3 Emerge Home Button and Audio Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

15 Minuten

Einleitung

Home Button and Audio Jack guide for a Samsung Galaxy J3 Emerge Model SM-J327P. May need to replace the home button if it is unresponsive. If audio becomes distorted when plugged in to the jack it needs replacing.

  1. 5pmGVAMxGuhwKcC3
    5pmGVAMxGuhwKcC3
    N4BiEHtAZuXQbEPH
    WYVaWk4wBprvapMu

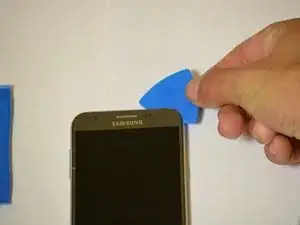

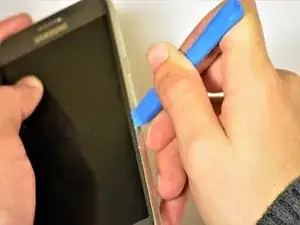

    • Heat up the edges of the screen with a hair dryer.

    • Put the iFixit Opening Tool between the screen and body to open the edge of the screen up.

    • Work the iFixit Opening Tools around the whole screen to break the glue.

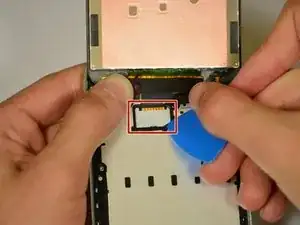

  2. S5TXwKfhK6gZSIcY
    S5TXwKfhK6gZSIcY
    aWJa2qLmNVTrfMYq

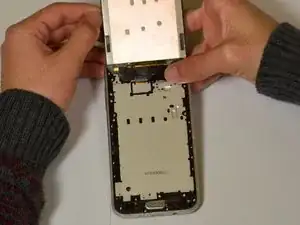

    • Lift the screen up from the bottom.

    • The screen could crack when lifting it up.

    • Pry the gray cover open.

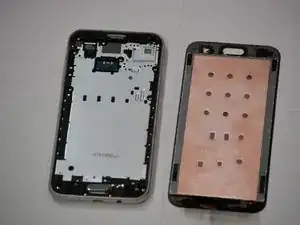

  3. vuFydyqc5JgCCDWK
    vuFydyqc5JgCCDWK
    ThPIO2TaaBRYKowV

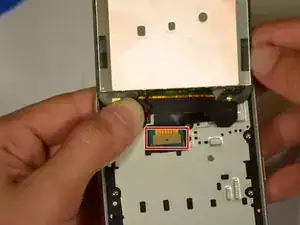

    • Pry the connector off of the motherboard by using a clean nail or the iFixit opening tool.

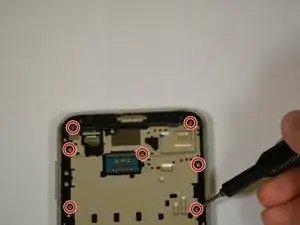

  4. Pn1oY4LhN6ExXXwa
    Pn1oY4LhN6ExXXwa
    nnbYvLlLLMLnOLUS

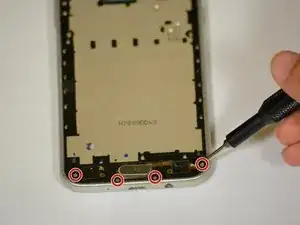

    • Remove the eleven Phillips #00 3.5mm screws.

    • If the screws get stuck when removing, try using tape to get them out. Place the adhesive side of tape on the screws and pull the tape off the spot.

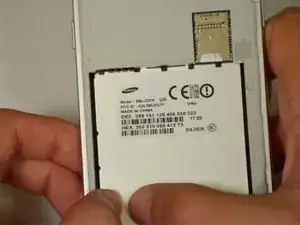

  5. PWjv5HBcndkvLAg4

    • Turn the phone over and push down where the battery was.

    • There will be a loud clicking noise when applying pressure.

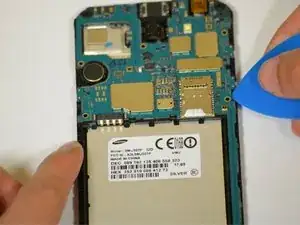

  6. fU2kDSeQch1uQG5u

    • Insert the iFixit Opening Pick between the motherboard and the panel.

    • Work the iFixit Opening Pick around the outside of the motherboard.

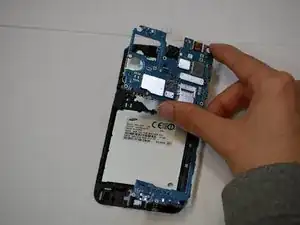

  7. 5RpIyRkDiwoAOVTV
    5RpIyRkDiwoAOVTV
    IIghG4OEH4Ud5fRf

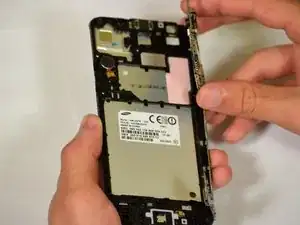

    • Pry the motherboard away from the phone using your hand.

  8. YiLnXrkpwPUbneVT

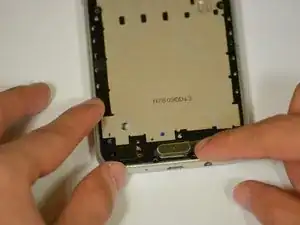

    • Slide the home button to the left to pop it off.

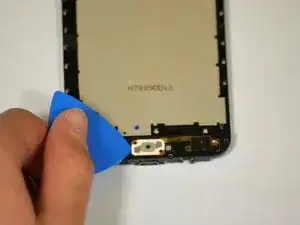

  9. xJFUGkcWyssebbGZ

    • Remove the connector where the home button was using the iFixit Opening Pick.

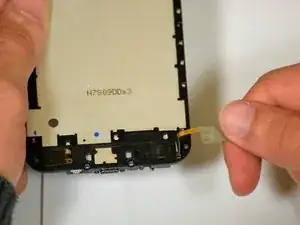

  10. ItQfQYMbdQZJg3dY

    • Lift up the connector and push it through the motherboard by following the ribbon.

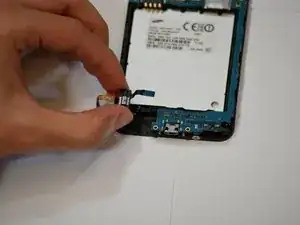

  11. W5oll46GrYiLcxPo
    W5oll46GrYiLcxPo
    Jqjp2G1EFwoDCjqk

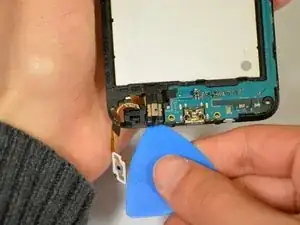

    • Follow the ribbon and gently pop the audio port out using the iFixit Opening Pick.

Abschluss

To reassemble your device, follow these instructions in reverse order.
