Samsung Galaxy J3 Mission Motherboard Replacement

Geschrieben von: Joseph Toth
  • Kommentare: 2
Samsung Galaxy J3 Mission Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

The motherboard is fragile and is a key component to a working phone. The motherboard on the Samsung Galaxy J3 Mission has several components attached to it, including the camera, SD and SIM card readers, charging port, and more. The motherboard allows the CPU, RAM, and computer hardware to communicate with each other.

  1. Mow2tfiHEPpefuwi

    • Insert your fingernail into the back cover removal slot and gently pull back until the cover pops off.

  2. iwLAdhXgVHyyqXBq

    • Make sure that your device is powered off before removing the battery.

    • Insert your fingernail into the battery removal slot and pull back until the battery pops out.

  3. 21FnEqAUIrQxxwAm

    • Use your finger to slide the SD and SIM card out of the device.

  4. 5YVcXJDQ6GqTDNLw

    • Use an iFixit opening tool to lift the screen from one of the vertical sides of the phone and continue gently prying until the screen is loose enough to safely remove.

    • The damaged screen is connected under the screen assembly with a small plastic brace; remove this with an iFixit opening tool.

    • Be careful around the home button. It has little tabs to keep it in the frame, but they will break if the adhesive isn’t loosened with age or heat.

    Be careful around the home button, it has little tabs to keep it in the frame, but they will break if the adhesive isn’t loosened with age or heat.

    Amber Wooldridge -

    The damaged screen is connected under the screen assembly, with a small plastic brace, easily removed with a spudger tool. To install a new screen try the connector before adding any adhesive, then put it back together.

    Amber Wooldridge -

  5. XZTAcQExArSyOVPl
    XZTAcQExArSyOVPl
    VwhlDWHgpWhJoRDW

    • Using a Phillips #000 screwdriver, remove all eleven 5mm screws from the metal panel.

  6. wIkt6JTZrgCfUnvT

    • Turn the device over, and push firmly to separate the metal plate from the back paneling.

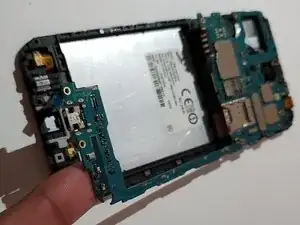

  7. URm1PWXmRKNDBlkX

    • Carefully lift up the motherboard with your finger starting from the bottom up

    • Motherboard is fragile.

Abschluss

To reassemble your device, follow these instructions in reverse order.
