Samsung Galaxy J3V Headphone Jack Replacement

Geschrieben von: Carry Corrales
  • Kommentare: 0
Samsung Galaxy J3V Headphone Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will walk you through the process of replacing a not working headphone jack in a Samsung Galaxy J3V.

  1. 1ZQuZribXOWCLMpN
    1ZQuZribXOWCLMpN
    XdHAOQJLIkSNDO33
    I4LiMgEsqCVhGPLe

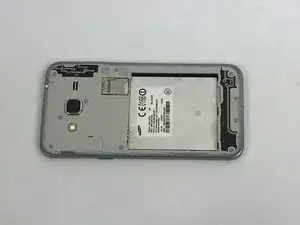

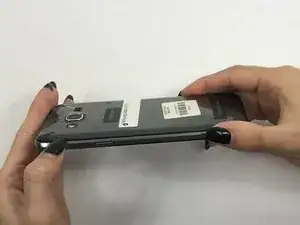

    • Place your thumb on the top left corner and pry the tab open and lift off the back cover.

  2. rEbgr2JJabn14QsC
    rEbgr2JJabn14QsC
    Yo1E4yVqdHTCPs4c
    H3NIHwnMdLgRPrBu

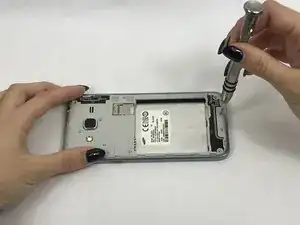

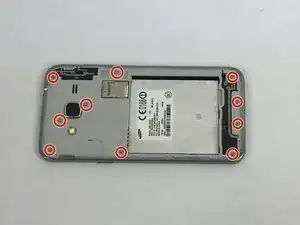

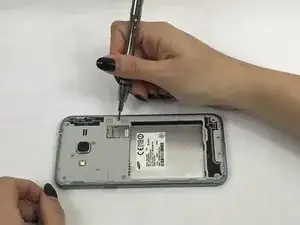

    • Remove the ten 2.0 mm screws with the Phillips #J000 screwdriver.

  3. MKjUv2AuBx2eORAY
    MKjUv2AuBx2eORAY
    6BBEueMeFNCPexFR
    ydLbJqyRjQpg3bVj

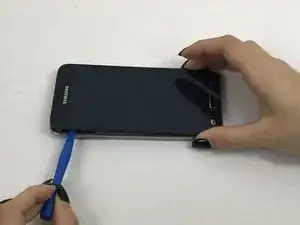

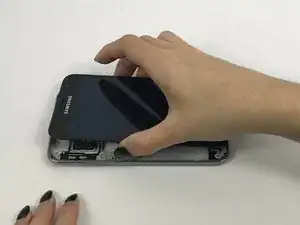

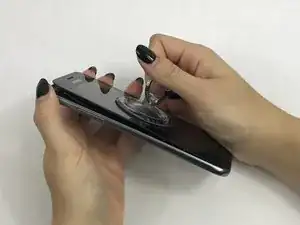

    • Use a small suction cup to pull the screen up. Then slip a small plastic opening tool under the screen to pry it upwards.

    • If this is the first time the screen is being removed then there will be adhesive around the edges of the screen. It may be difficult to remove the screen because of this adhesive seal and it is going to take a few tries and some force to pry the entire screen off.

  4. qDo6elERXeeUBGAS
    qDo6elERXeeUBGAS
    iF4SyYEOQX6wdyZk
    MhnVMNCtcBocIWfv

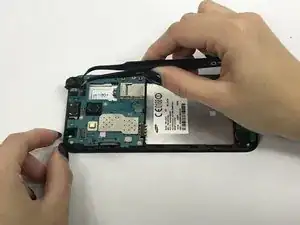

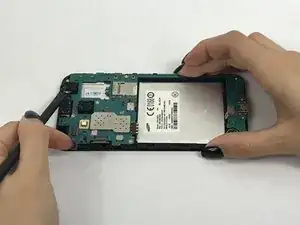

    • Remove connector tab with spudger then carefully remove headphone jack with tweezers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
