Samsung Galaxy J3V Power Button Replacement

Geschrieben von: Carry Corrales
  • Kommentare: 0
Samsung Galaxy J3V Power Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

7 - 15 Minuten

Einleitung

This guide will walk you through the process of replacing a not working power button in a Samsung Galaxy J3V.

  1. rXdDeasSW4LliPbH
    rXdDeasSW4LliPbH

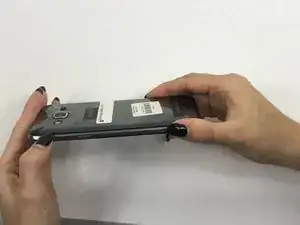

    hUJ4CMLZyXyOkuyC

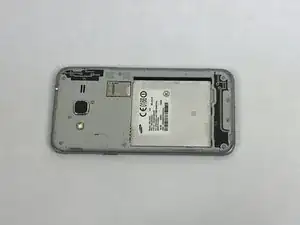

    uJvsqkGAwAHD2rFP

    • Place your thumb on the top left corner and pry the tab open and lift off the back cover.

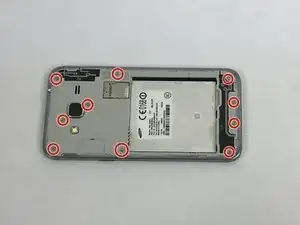

  2. oIKVaRdLFOZWkAbD
    oIKVaRdLFOZWkAbD
    r6a5fQhusttICUWJ

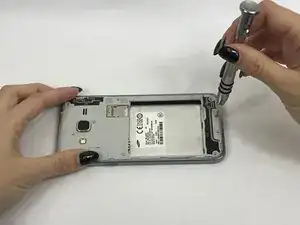

    f1mBw1OjwXO2ilWC

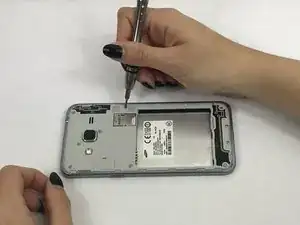

    • Remove the ten 2.0 mm screws with the Phillips #J000 screwdriver.

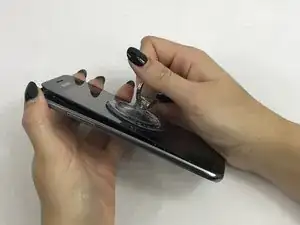

  3. JBgR5GAfl3iAuuQ6
    JBgR5GAfl3iAuuQ6

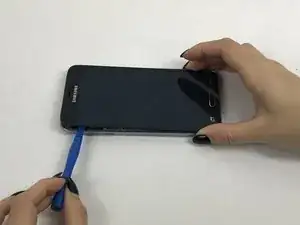

    rdHMgEBkItXeEQuS
    q3sO6EAxBywReO4U

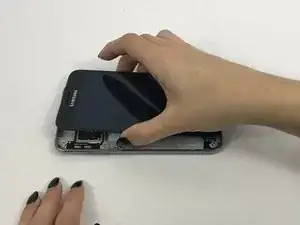

    • Use a small suction cup to pull the screen up. Then slip a small plastic opening tool under the screen to pry it upwards.

    • If this is the first time the screen is being removed then there will be adhesive around the edges of the screen. It may be difficult to remove the screen because of this adhesive seal and it is going to take a few tries and some force to pry the entire screen off.

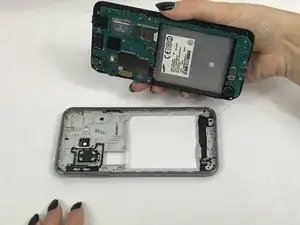

  4. keUgEToTPQVWSqUN
    keUgEToTPQVWSqUN

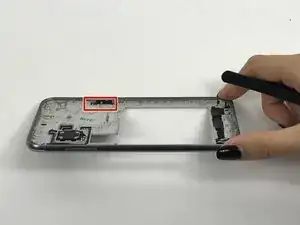

    MYMv1NOJKx1eu5jk

    • After opening the phone, locate the power button on the back frame of the phone.

  5. wMiEG2ps3XMZqWpg
    wMiEG2ps3XMZqWpg
    ldMsOLbtRDiWAPKO
    apxEo5DadogkeYST

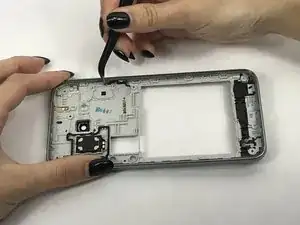

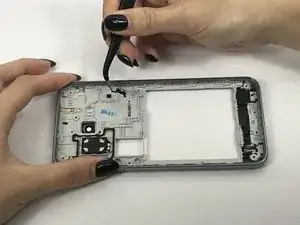

    • Using tweezers, remove the power button's rubber tabs from the clips holding them.

    • Gently remove the entire button

Abschluss

To reassemble your device, follow these instructions in reverse order.
