Einleitung

  1. Kbe6xYKIosxh4KEY
    Kbe6xYKIosxh4KEY
    G3UyHOgnKTldDysd

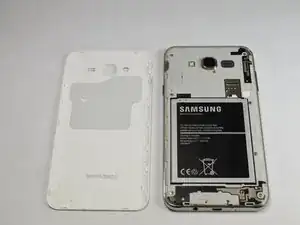

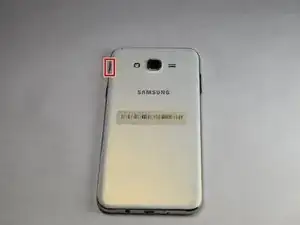

    • Remove the back of the device by pulling on the tab in the top left.

  2. VI2TQsh5aUxKBajV

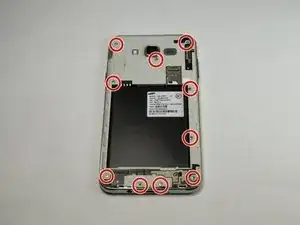

    • Using the Phillips #000 screwdriver, remove ten 4.2 mm screws.

  3. PMd14C2nc5QsRmij
    PMd14C2nc5QsRmij
    m233EknFPpKanVHU
    ZlkVNHvWC1MGdDeK

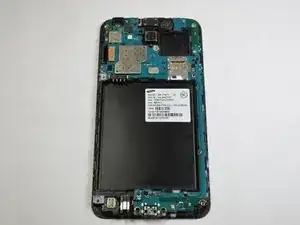

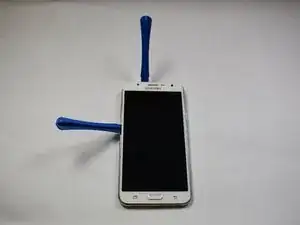

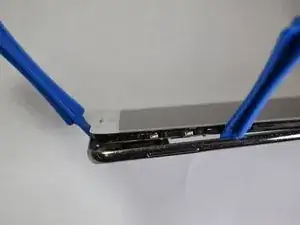

    • Lift up the back of the device with the iFixit opening tool and disconnect it from the front.

  4. DHicZ54HZutQCDiR

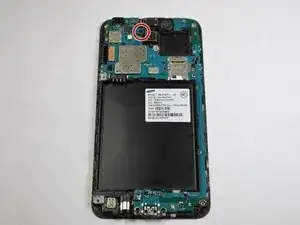

    • Remove single screw from back of device. This is the only screw that must be removed to take off this piece.

  5. XIw3jqk6IH3GeAq3

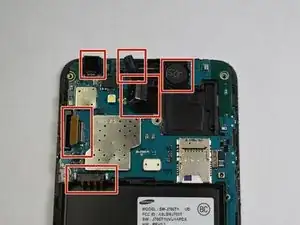

    • Make sure to pull up all of these parts in order to properly take off the next piece.

  6. PHtbZHks1j4ViTMp
    PHtbZHks1j4ViTMp
    NhHSoTW4XbXLXsFN

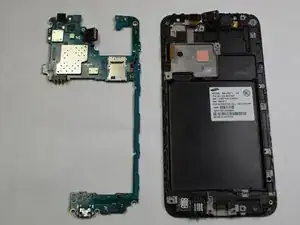

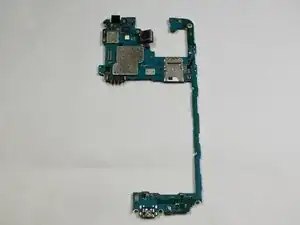

    • Pull the blue/green piece away from the black piece. They should not need any force to be removed. The next step will deal with using the green/blue piece from the second picture.

  7. 5XCjmjD3VKGvMuIK
    5XCjmjD3VKGvMuIK
    CRXJWRXqmoCIxVdA

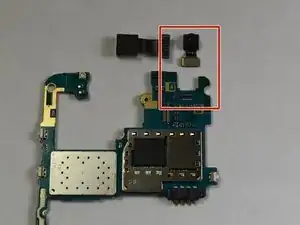

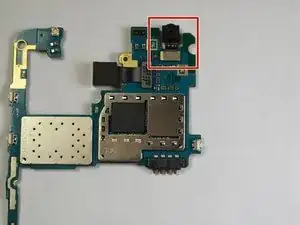

    • Flip over the piece (180 degrees). Remove the boxed out piece. This is the front facing camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
