Samsung Galaxy J7 Screen Assembly Replacement

Geschrieben von: Gabriel Arellano
  • Kommentare: 1
Samsung Galaxy J7 Screen Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

35 - 45 Minuten

Einleitung

This guide will help you replace a cracked or broken screen on your Samsung Galaxy J7.

  1. Kbe6xYKIosxh4KEY
    Kbe6xYKIosxh4KEY
    G3UyHOgnKTldDysd

    • Remove the back of the device by pulling on the tab in the top left.

  2. AVw5XROgUkVB5FmI
    AVw5XROgUkVB5FmI
    XVMjCQHxhrut2jYw

    • Pull out the battery by pulling on the bottom left slit under the battery.

  3. VI2TQsh5aUxKBajV

    • Using the Phillips #000 screwdriver, remove ten 4.2 mm screws.

  4. PMd14C2nc5QsRmij
    PMd14C2nc5QsRmij
    m233EknFPpKanVHU
    ZlkVNHvWC1MGdDeK

    • Lift up the back of the device with the iFixit opening tool and disconnect it from the front.

  5. GmaZBtJcZPkNxGio
    GmaZBtJcZPkNxGio
    nVEVL2XGSWdGaVPa

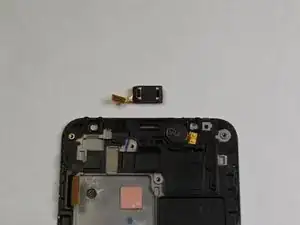

    • Gently lift up the speaker piece and disconnect it from the panel.

  6. iTuZ6qEvlPa11THw
    iTuZ6qEvlPa11THw
    x4fqgWAnydWOLDvD

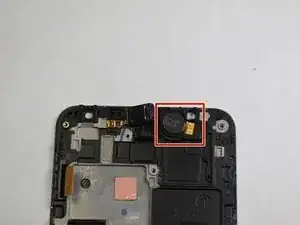

    • Gently lift up the tab of the motor.

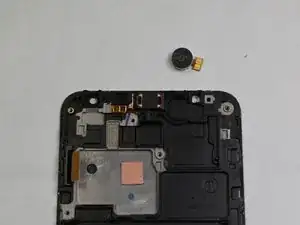

    • Remove the motor from the panel completely to disconnect it.

  7. e6NFJXjUJUbhpYRt

    • Reverse these steps with your new phone screen to replace it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
