Einleitung

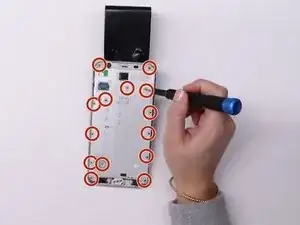

Use this guide to replace a malfunctioning earpiece speaker in your Samsung Galaxy J7 V. If you have difficulty removing the 14 screws, my team found it easier to flip the phone upside down and use the screwdriver to loosen. Once the screws are loose, use the magnet tool to remove them fully.
-
-
Locate the socket of the home button.
-
Fit the metal spudger in between the socket and the home button.
-
-
-
Take the metal spudger and slide it underneath the home button.
-
Lift up until the home button is removed from its socket.
-
-
-

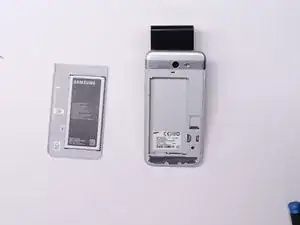

Flip the phone to the back side where the battery was removed.
-
Apply pressure with your hands to pop the midframe off.
-
-
-
Flip the phone back over.
-

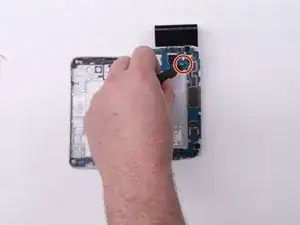

Remove the single black screw from the motherboard using a Phillips #00 screwdriver.
-

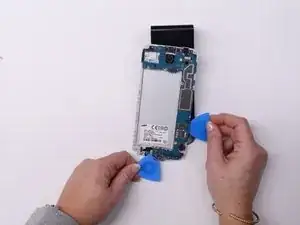

Place a few iFixit opening picks beneath the motherboard.
-
Lift the motherboard using the iFixit opening picks.
-
To reassemble your device, follow these instructions in reverse order.
