Samsung Galaxy J7 V Home button Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

Use this guide to remove the home button on the Samsung Galaxy J7 V. Make sure the screen is removed first.

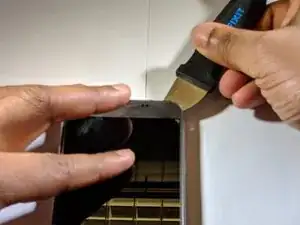

  1. SWCCYVMaPDJeHSMr

    • Be very careful during this step if your display is not already broken, as the OLED display is very fragile.

    • Use a Jimmy tool to gently raise one of the corners of the display.

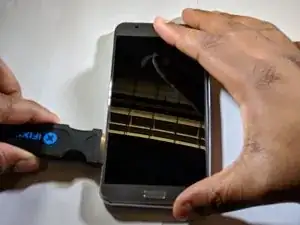

  2. lfWslMk4m1X5ADif

    • Gently slide the Jimmy tool around the entire perimeter of the phone.

    • We recommend heating up the phone prior to attempting the display removal as it weakens the adhesive and can massively decrease the risk of damage to the display.

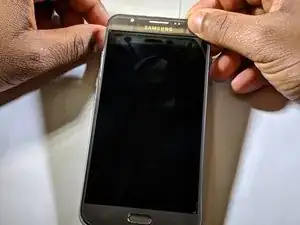

  3. V6syNQqjG3fmieew

    • Carefully lift the display.

    • Be extra careful with the display's ribbon cables as they are very fragile.

  4. B4TW1EdEWSfmhf1N

    • Locate the socket of the home button.

    • Fit the metal spudger in between the socket and the home button.

  5. stJgs6mIjwhfkmDA

    • Take the metal spudger and slide it underneath the home button.

    • Lift up until the home button is removed from its socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
