Einleitung

  1. SWCCYVMaPDJeHSMr
    • Be very careful during this step if your display is not already broken, as the OLED display is very fragile.

    • Use a Jimmy tool to gently raise one of the corners of the display.

  2. lfWslMk4m1X5ADif
    • Gently slide the Jimmy tool around the entire perimeter of the phone.

    • We recommend heating up the phone prior to attempting the display removal as it weakens the adhesive and can massively decrease the risk of damage to the display.

  3. V6syNQqjG3fmieew
    • Carefully lift the display.

    • Be extra careful with the display's ribbon cables as they are very fragile.

  4. B4TW1EdEWSfmhf1N
    • Locate the socket of the home button.

    • Fit the metal spudger in between the socket and the home button.

  5. stJgs6mIjwhfkmDA
    • Take the metal spudger and slide it underneath the home button.

    • Lift up until the home button is removed from its socket.

  6. gSBUEAQmiws1gANi
    gSBUEAQmiws1gANi
    JXeYx4CQe1OCkWts
    • Remove the screws around the home button and the screws above.

  7. Tfxm1HHZbKlGcEWb
    • Pull the screen away from the panel.

  8. vdUrgaiNPuKeE24e
    vdUrgaiNPuKeE24e
    ECxQuBsLdYJyQEXy
    • Remove all adjacent screws.

  9. fTQD221q666eZ6K6
    fTQD221q666eZ6K6
    p4dWFbOvcGKFLVsk
    XlRP1TgFyqY3eWgU
    • Pop off panel from plastic hold.

  10. 1UVBS5wD6qCFnKtC
    1UVBS5wD6qCFnKtC
    bSCMnYcJ4BQ3PoIj
    DOGYPROi2aUhenrT
    • Use the pointed end of the spudger to push down the button hold, then the volume button can be removed by pushing it down.

  11. jMMtPMlOoJCunj41
    jMMtPMlOoJCunj41
    MHPOjutSHwHUpmrJ
    vtI2fxYtmUQJOPsv

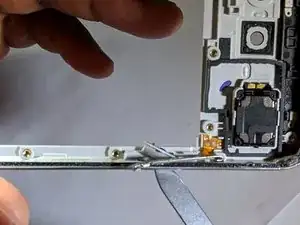

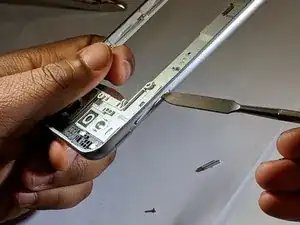

    • Use metal spudge tool to remove power button hold then push power button from outside .

Abschluss

To reassemble your device, follow these instructions in reverse order. Please don't miss a screw!
