Samsung Galaxy Luna LCD display Replacement

Geschrieben von: xingyu chen
  • Kommentare: 2
Samsung Galaxy Luna LCD display Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

Use this guide to replace your Samsung Luna LCD display.

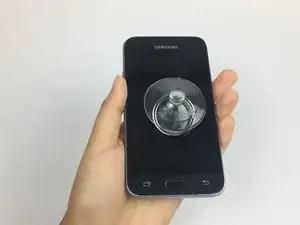

  1. BVVqHZWIthuNRaLR

    • Attach a small suction cup to the lower half of the glass screen.

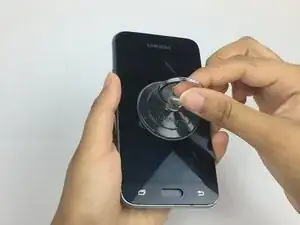

  2. KWxpqPbRnoEX4qw4

    • Apply pressure to the middle section of the screen while pulling up the lower edge by pivoting your wrist.

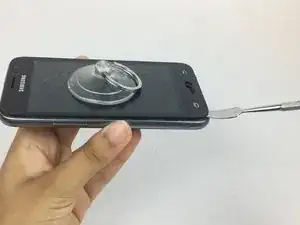

  3. eIQq3FfYnjOhfxVP

    • Once you've opened a large enough gap, insert a Spudger tool between the glass and the motherboard.

    • Slide the Spudger tool around the gap until the screen is completely separated from the motherboard.

    • The LCD is very fragile,be careful when sliding the spudger around the gap.

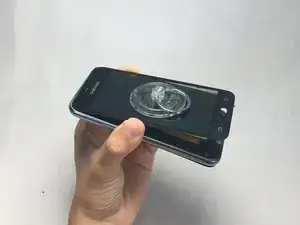

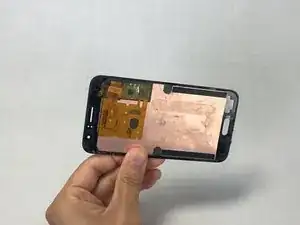

  4. 2E2PUXJSDRH6ma3u
    2E2PUXJSDRH6ma3u
    xD5LFejEqafQextK

    • Pull the rear panel up and away to completely separate it.

    • make sure the panel is completely detached from the phone frame before separating it.

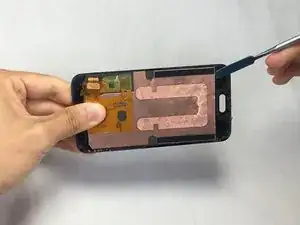

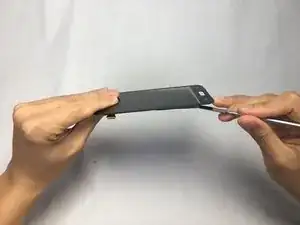

  5. FC2pBKYV5PfFGKdy
    FC2pBKYV5PfFGKdy
    2kjgBaDrRVaF4XXq
    TsFFKoKkUoQ3pWXH

    • Place the spudger tool between the LCD and the glass screen.

    • Slide the spudger tool in between the screen and the display until both are completely separated from each other.

    • The LCD is very fragile, do not apply excessive force when prying the glass panel

Abschluss

To reassemble your device, follow these instructions in reverse order.
