Einleitung
This guide instructs on how to replace the front facing speaker and LED blinker.
-
-
Before starting, ensure device is completely turned off.
-
On the back of phone, locate the slot on the top left corner.
-
Insert plastic opening tool or fingernail and pull up on the back plate.
-
With the corner released, slide your finger around the device between the back plate and the phone to release connectors.
-
-
-
Insert fingernail into the slot on bottom of battery and gently pull up.
-
Remove the battery.
-
-
-

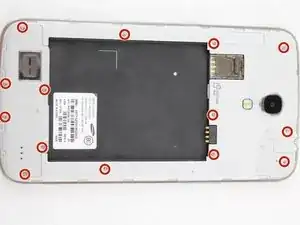

Remove the 14 3.45 mm Phillips #000 screws from the assembly.
-

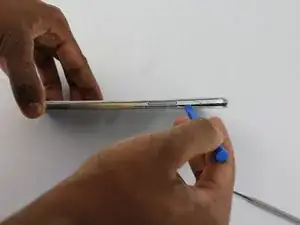

Gently, insert plastic opening tool into seam above the volume buttons of your phone.
-
-
-
Slowly slide plastic opening tool around the device to release all the connectors internal to the device.
-
The device should easily come apart after the plastic opening tool is slid around the entire device.
-
-
-

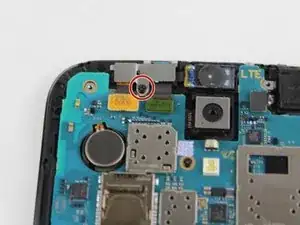

Remove the motherboard clip from speaker assembly to the motherboard.
-

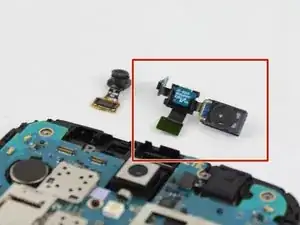

Gently lift the speaker and LED assembly out of the device.
-
Speaker assembly may be glued to the device, gently pry until it releases.
-
To reassemble your device, follow these instructions in reverse order.
