Samsung Galaxy Mega Speaker Assmebly Replacement

Before starting, ensure device is completely turned off.

On the back of phone, locate the slot on the top left corner.

Insert plastic opening tool or fingernail and pull up on the back plate.

With the corner released, slide your finger around the device between the back plate and the phone to release connectors.

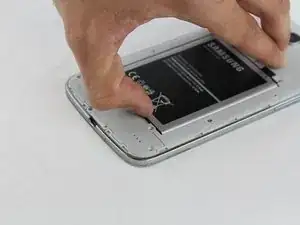

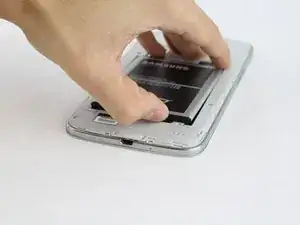

Insert fingernail into the slot on bottom of battery and gently pull up.

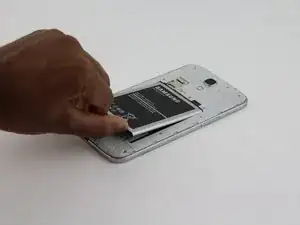

Remove the battery.

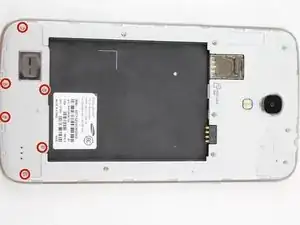

Remove the 6 3.45 mm Phillips #000 screws from the bottom of the assembly surrounding the speaker.

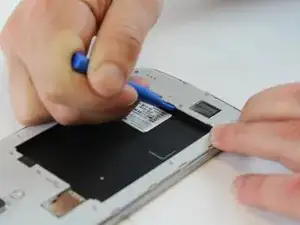

Gently insert plastic opening tool through the inside groove of the speaker assembly.

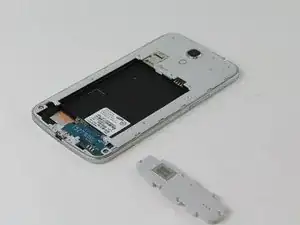

Once the top part of the speaker assembly pops free. Gently lift up with your fingers to remove speaker.
