Samsung Galaxy Mega USB Board Replacement

Geschrieben von: Aaron Fulton

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

5 - 8 Minuten

Einleitung

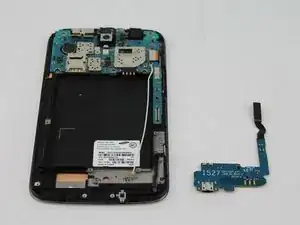

This guide instructs on how to replace a malfunctioning charging port circuit board.

Before starting, ensure device is completely turned off.
On the back of phone, locate the slot on the top left corner.
Insert plastic opening tool or fingernail and pull up on the back plate.
With the corner released, slide your finger around the device between the back plate and the phone to release connectors.

Bonjur vule vondre de telefon samsung galaxy mega ecron

samsung galaxi mega

0751571718 samsung galaxi mega

Remove the 14 3.45 mm Phillips #000 screws from the assembly.
Gently, insert plastic opening tool into seam above the volume buttons of your phone.
You may substitute metal spudger for plastic opening tool to first start the opening of the seam. This may cause exterior cosmetic damage.

If you insert a spudger from the battery compartment seam, you can start the opening without damage to the outside.

Slowly slide plastic opening tool around the device to release all the connectors internal to the device.
The device should easily come apart after the plastic opening tool is slid around the entire device.
During reassembly, ensure volume and power buttons align properly.

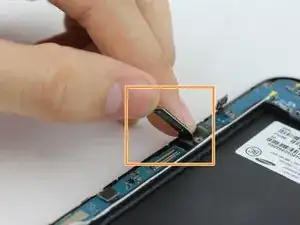

Lift up on the clamp with your finger to disconnect the connector.

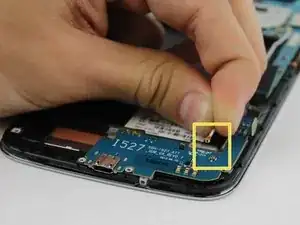

Lift up on the clamp with your finger to disconnect the connection to the mother board.

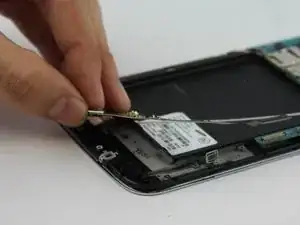

Grasp cable head and lift up to disconnect the cable head.
