This guide will teach you how to replace the charging port in your Samsung Galaxy 10.1 2014 edition.
Werkzeuge
Ersatzteile
-
-
Using the nylon spudger or plastic opening tool along the edges of the screen, separate the back case off of the device.
-
-
-
Place your finger on the thin black bar at the end of the ribbon tape and flip each one up.
-
Gently pull the ribbon tape on the battery away from the bar. Repeat this process for the second ribbon tape.
-
-
-
Lift up the battery from the bottom and situate the black nylon spudger underneath the battery.
-
Use the black nylon spudger to disconnect the multi-colored wires from the rest of the device.
-
-
-

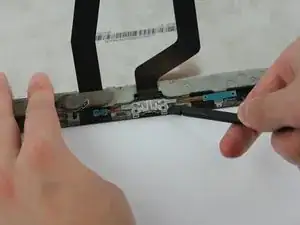

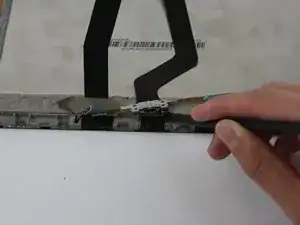

After disconnecting the two blue electronic connectors, unhinge the metal part of the charging port with the black nylon spudger.
-
To reassemble your device, follow these instructions in reverse order.
