Trying to replace the screen, incl. digitizer.
It is based on
and
Actually you need only to remove the battery but I removed the motherboard etc. for safety reasons.
Werkzeuge
Ersatzteile
-
-

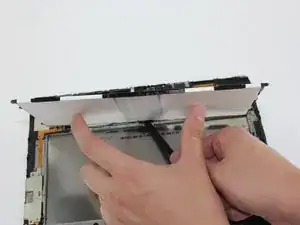

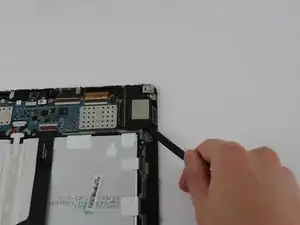

Using the nylon spudger or plastic opening tool along the edges of the screen, separate the back case off of the device.
-
-
-

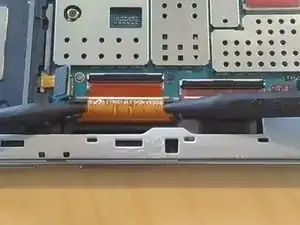

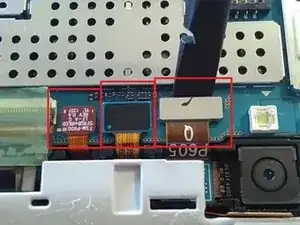

Place your finger on the thin black bar at the end of the ribbon tape and flip each one up.
-

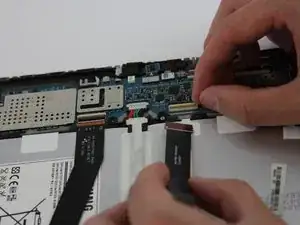

Gently pull the ribbon tape on the battery away from the bar. Repeat this process for the second ribbon tape.
-
-
-

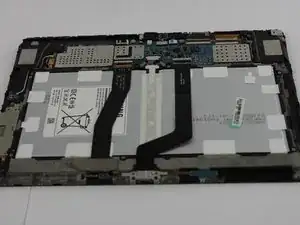

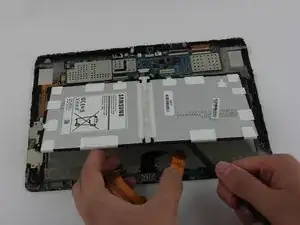

Lift up the battery from the bottom and situate the black nylon spudger underneath the battery.
-

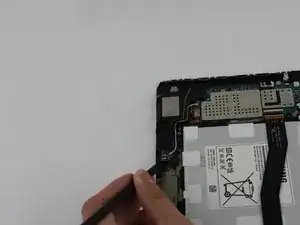

Use the black nylon spudger to disconnect the multi-colored wires from the rest of the device.
-
-
-

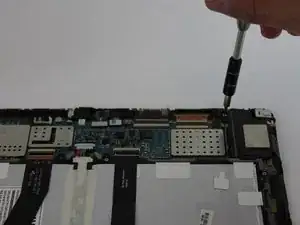

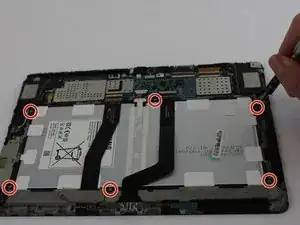

Remove the three 3mm screws on the top right side of the device with the Phillips PH000 screw head.
-
Remove the one 3mm screw on the top left side of the device with the same method.
-
-
-

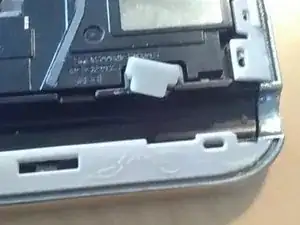

Remove the gray rubber piece.
-

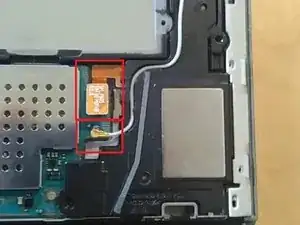

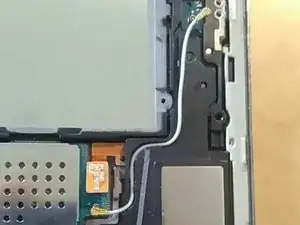

Use a spudger or fingernail to disconnect the blue antenna cable from the motherboard.
-

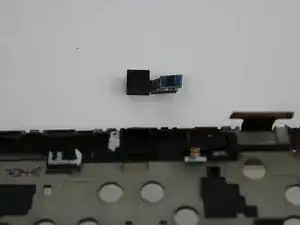

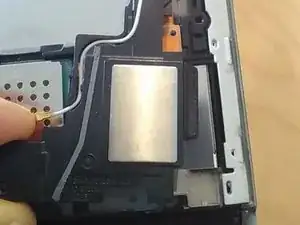

Remove the right speaker unit.
-
-
-

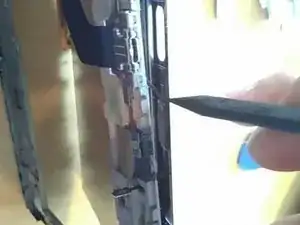

Remove the loudspeaker modules located on the parts where the screws were removed by using the black nylon spudger.
-
-
-

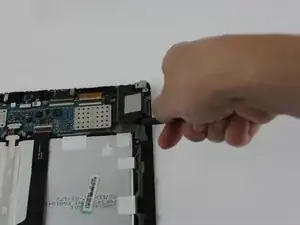

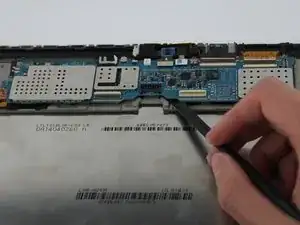

Use the black nylon spudger to gently lift the motherboard away from the frame.
-

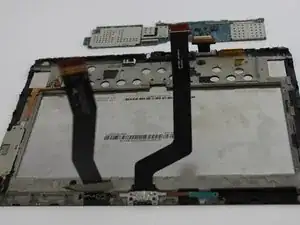

Remove the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
4 Kommentare
is the digitizer glued to the lcd screen?
it is see referenced YouTube video
The e battery and screen cable clasps that hold tge cables in….. Where do i get them repaired

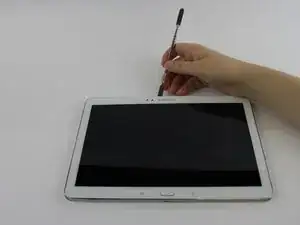

Remove stylus before you remove. There’s a nubbin on the main board that may dislodge it stylus is in place. it is easily reinserted, but easy hassle to avoid.
