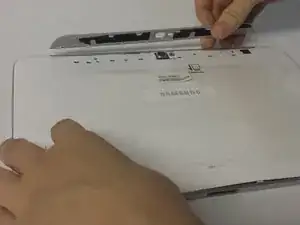

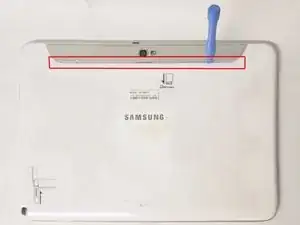

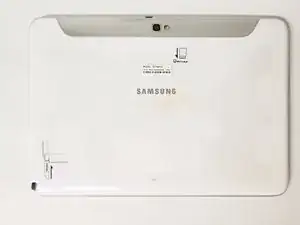

    • This is the back of the device and where you willl begin to take it apart.

    • It is necessary to remove the silver piece covering the camera first before removing the bigger back piece.

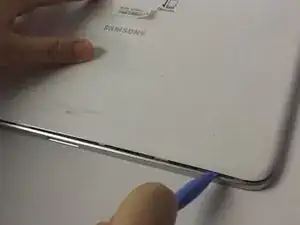

    • Use the plastic opening tools to pry along the indicated box.

    • Lift up the silver piece to reveal the rest of the back cover.

  2. EBlNJNoCNGU4Ke2x
    EBlNJNoCNGU4Ke2x
    LwMegRSwHrL4bhkN
    olHDBXuC6myNiQ1h

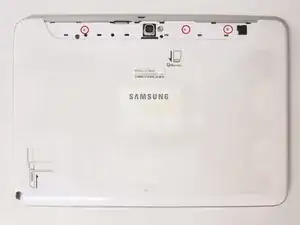

    • Unscrew the three 5 mm screws indicated by the red circles with the Philips #00 screwdriver.

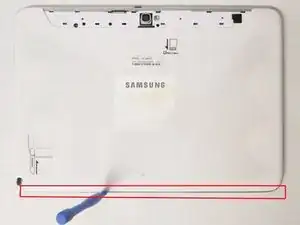

    • Using the plastic opening tools pry along the bottom of the device, moving to the sides of the cover to the top.

    • Remove the back cover.

    • At this point use anti-static gloves or do NOT take it apart on carpet.

  3. aoFNIaacKSsS2Gvo
    aoFNIaacKSsS2Gvo
    SiwxltIVugFJHvHd
    55MLonVqwRUrfrI1

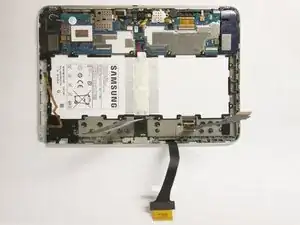

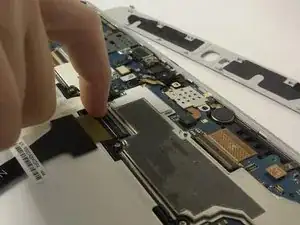

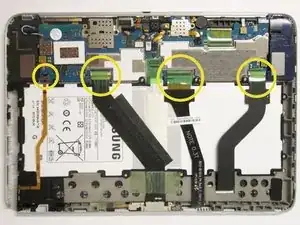

    • Carefully remove all of the ribbons that connect over the battery from the locations indicated by the yellow circles.

    ALWAYS disconnect the battery BEFORE disconnecting any cables!

    Jeana Morales -

  4. xRJnHkxe1SSKaNtJ
    xRJnHkxe1SSKaNtJ
    LHx26YiKHMNAWwkB
    W6AUVdvCKl13QYLH

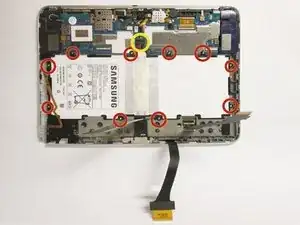

    • Remove all of the 3 mm screws indicated by a red circle with the #00 Philips screwdriver.

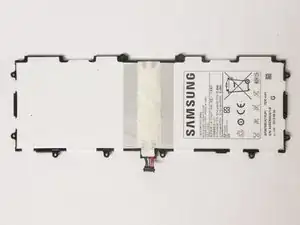

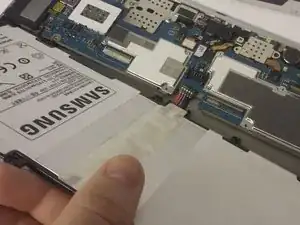

    • Disconnect the battery from the location indicated by a yellow circle

    • Now you may remove the battery.

  5. afODDfyB1qOYVFjd
    afODDfyB1qOYVFjd
    TpnJXioEHVVKkBS1
    a6my1MtDQLHGpPXN

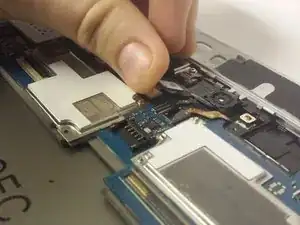

    • From the first photo:

    • Remove all the components marked by yellow circles

    • Unscrew all the 3 mm and 2 mm screws marked by the red circles with the #00 Philips screwdriver.

    • From the second photo:

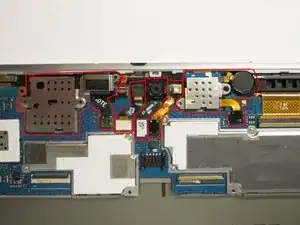

    • Starting with the motherboard connectors, remove all the components marked in red.

    • Please place all components removed after this point in a static-free area or in anti-static bags.

    • Please note that you can only remove the ribbon attached to the headphone jack and the metal covering it on the far left. Do not attempt to remove the whole piece at this time.

  6. bLXahIC3Zq1MJJgD
    bLXahIC3Zq1MJJgD
    kJ1wWd4ogEclip2Z
    JClvADmdNAuoeUVv

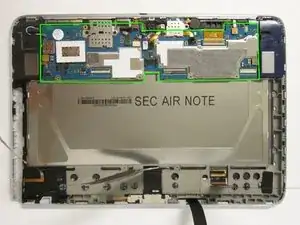

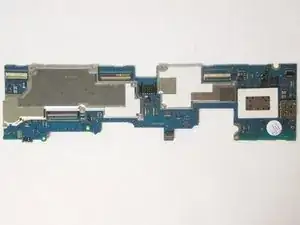

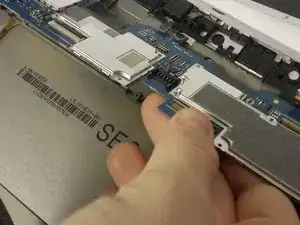

    • Once you have removed all the components connected to the motherboard, gently lift up on the area surrounding the green box and remove your motherboard.

    • Please place the motherboard in a static-free area or in anti-static bags.

  7. GfFyWk3oMCTBjQJY
    GfFyWk3oMCTBjQJY
    ZXklINHnRGPBYWnG
    KbDS6QyU6D4SDtUE

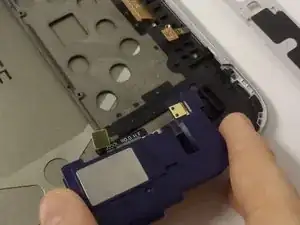

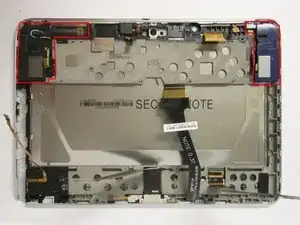

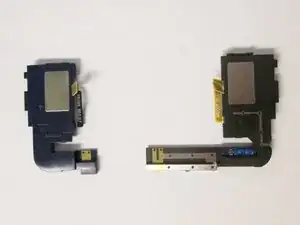

    • Apply pressure to the locations boxed in red to remove the loudspeaker modules.

    • Please place the loudspeakers in a static-free area or in anti-static bags.

  8. vXtGY5v5LawkyQBU
    vXtGY5v5LawkyQBU
    wWtDQ36MYjhNKmpv
    mfP3UKIJ1aqDOMOT

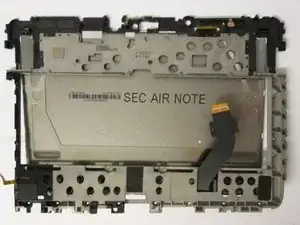

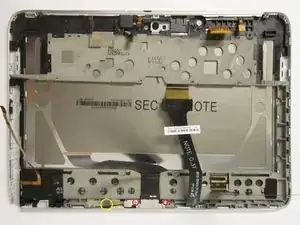

    • From the first photo:

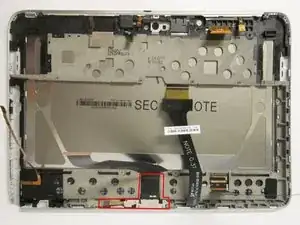

    • Unscrew the 2 mm screws marked by red circles with the #00 Philips screwdriver.

    • Be sure to lift the tape marked by the yellow circle from the frame.

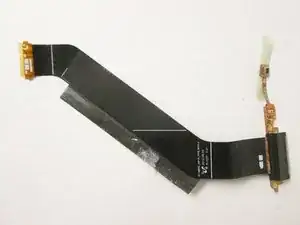

    • Gently pry the ribbon from the frame and lift the charging port from the frame.

    • Please place the charging port in a static-free area or in anti-static bags.

  9. b3BCm2BM3RfWd4Or
    b3BCm2BM3RfWd4Or
    iKVASFLnmYWoaEYi
    k2TkBhunG3XAIFTZ

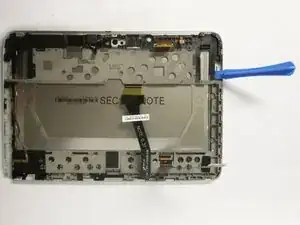

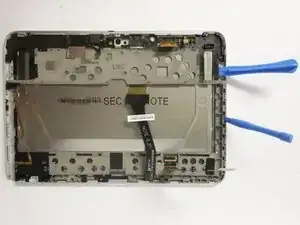

    • Starting from the under the right speaker casing, use one plastic prying tool to start lifting up on the LCD frame.

    • Use two of the plastic prying tools, one for support and the other for prying, to completely separate the LCD casing from the digitizer frame.

  10. DMHEOcWNvW4AFI4J
    DMHEOcWNvW4AFI4J
    EQKuM41e16GiR1Xj
    T3IZCQ51eHDTuL3D

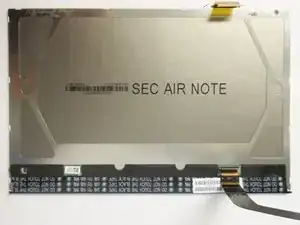

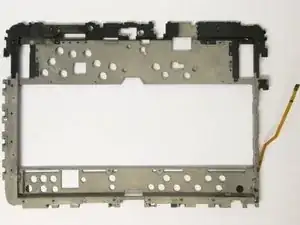

    • Gently tear the LCD from its frame by lifting it from the tape connecting the two.

  11. iSk3ckOYbMqDbvgW
    iSk3ckOYbMqDbvgW
    yoxHcRYMJQfXvht6

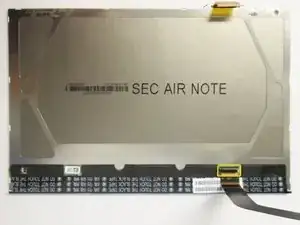

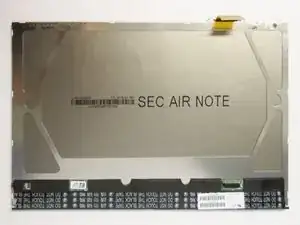

    • Remove the ribbon indicated by the yellow box and place it on your replacement LCD screen.

    How glass volt

    maung zaw -

Abschluss

To reassemble your device, follow these instructions in reverse order.
