How to change the Samsung GalaxyNote Edge / N915 screen assembly

_______Video manual_______

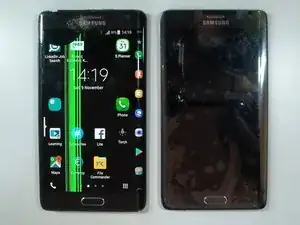

  1. vUM2tpyYJvZdFP1a
    vUM2tpyYJvZdFP1a

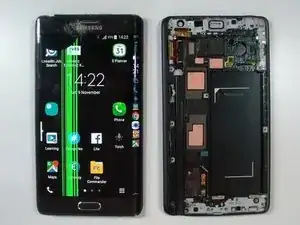

    MAxeWBMCfEu3NFQV
    BFeHSJLc2BkHTA5n

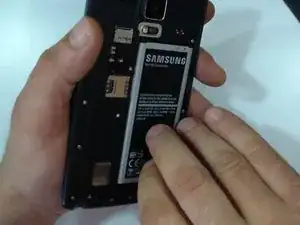

    • Switch off the device.

    • Remove the back cover and the battery.

  2. QHVoikVePkRe2r4t
    QHVoikVePkRe2r4t
    oFQo3UahiXCroguZ
    YxCOiJbuD4LdOuiS

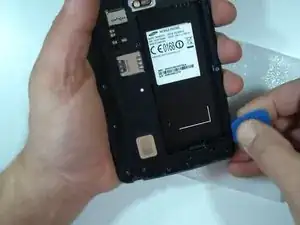

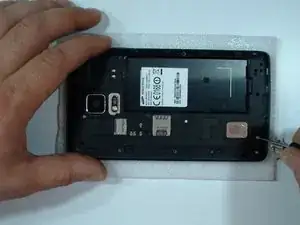

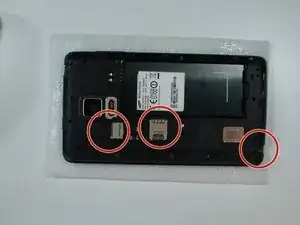

    • Remove the Memory card, the SIM card and the S Pen.

    • Remove the screws by using Screwdriver Phillips #00

    • With a plastic opening tool emove the Back Frame.

  3. Ny1GdrEg1JQRBhC1
    Ny1GdrEg1JQRBhC1
    MVFnKVPq4hCpZljT

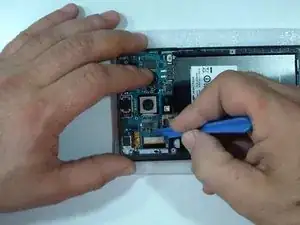

    vk4RTnRyW5TWfyWt

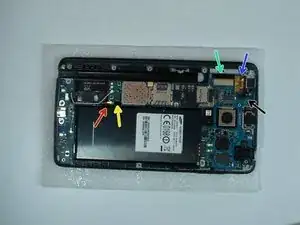

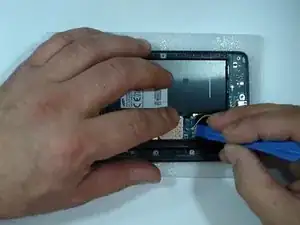

    • Disconnect one by one:

    • Coaxial antenna cable (x2)

    • Home Button flex cable

    • Display Flex cable

    • Stylus Sensor flex cable

    • Front Camera flex cable

  4. 5nnu3mNfCg1urRBX
    5nnu3mNfCg1urRBX

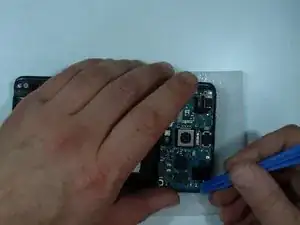

    hs2TX1IHLH4FAtQH

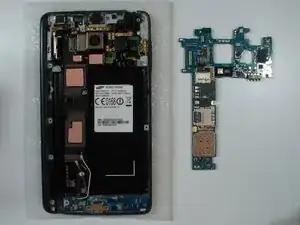

    fxekuEFiwvEbLokM

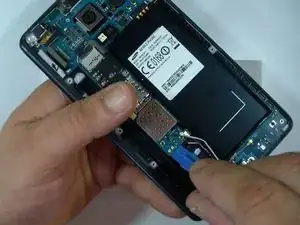

    • Pry up the connector on the back of the board to release the bottom part of motherboard.

    • Gently remove the logic board.

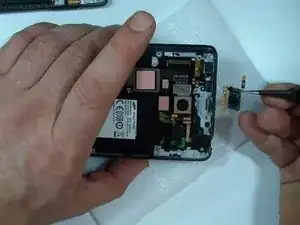

  5. nSlXYNHJVIWRPMbs
    nSlXYNHJVIWRPMbs

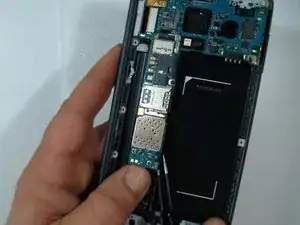

    r3kY3R1Ue5Y6BRyd
    nNmm56gVLAwtSFsK
    • I prefer to test the new spare part before install it.

    • Transfer the Power button / Loud speaker flex cable.

    • Install the mother board.

    • Test the display.

    • To prevent damage to the put back the back frame before the test.

  6. qvnebqPjRKGQOG42

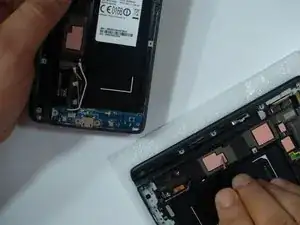

    • Check the quality of the thermal pads (if the spare part is not original).

    • If its necessary use the thermal pads from the old assembly.

  7. P6Nb6GaFRv6XEd31
    P6Nb6GaFRv6XEd31

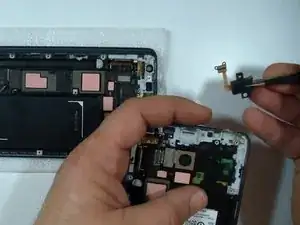

    mqLkFQGplL2V6bQu
    jANjkCcmnRlwFp4g

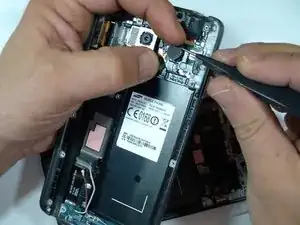

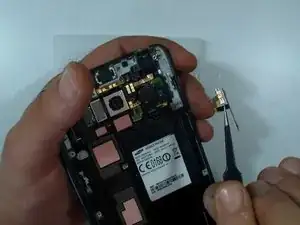

    • Insert wisdom here.

  8. sp22nAR1N4it2cCi
    sp22nAR1N4it2cCi
    3WBiy4Fvxcs1qIPF
    YSXQEGScsHtM1lBg

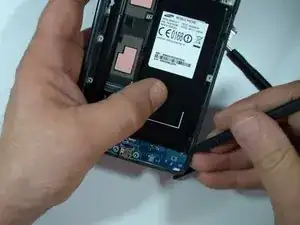

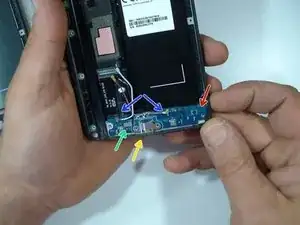

    • Remove the black Phillips screw,

    • the the charging port plate,

    • disconnect the Home buttons flex cable

    • and the coaxial antenna cable (x2).

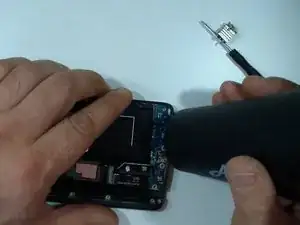

    • Use hot air and a plastic opening tool to remove the Charging Port flex assembly.

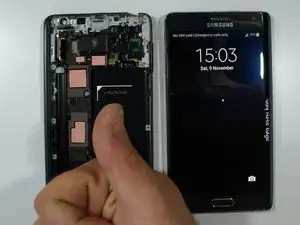

  9. sUKdEBkNaqF1fqfv
    • To reassemble your device, follow these instructions in reverse order.
