Samsung Galaxy Note II Display Assembly Replacement

Geschrieben von: Sam Goldheart

Kommentare: 25

Samsung Galaxy Note II Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

40 Minuten - 2 Stunden

Einleitung

Use this guide to replace the front panel display assembly on your Samsung Galaxy Note II.

Werkzeuge

Ersatzteile

Schritt 1

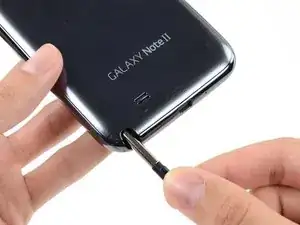

Grasp the end of the stylus and remove it from its slot in the midframe.

Schritt 2

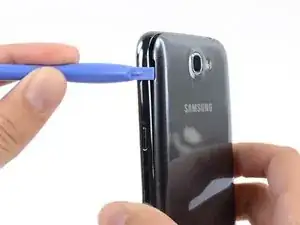

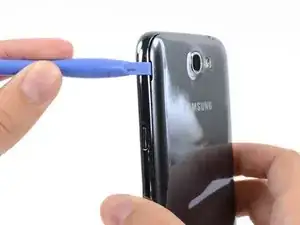

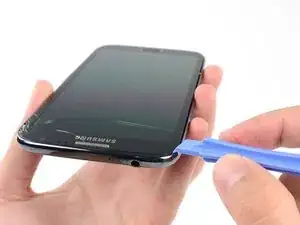

Pry with a plastic opening tool, or your fingernail, in the divot to the left of the rear-facing camera, near the power button.

Schritt 3

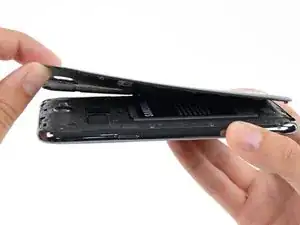

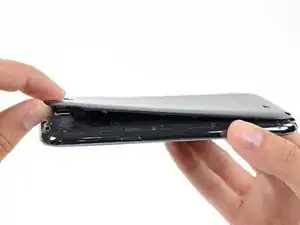

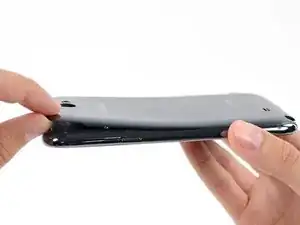

Lift the rear case by the corner nearest the divot and remove it from the phone.

Schritt 4

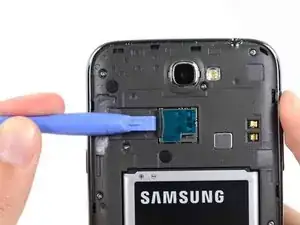

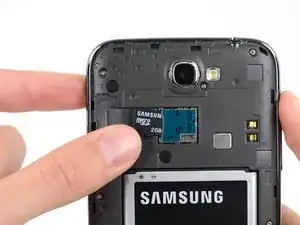

If you have an SD card inserted, use the flat end of a spudger, or your fingernail, to press the microSD card slightly deeper into its slot until you hear a click.
After the click, release the card and it will pop out of its slot.
Remove the microSD card.
For reassembly, push the microSD card into the slot until it clicks in place.

Schritt 5

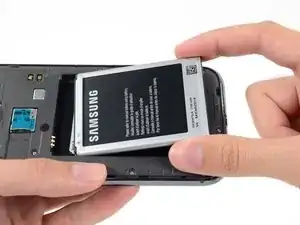

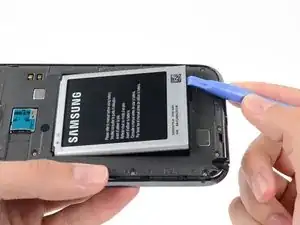

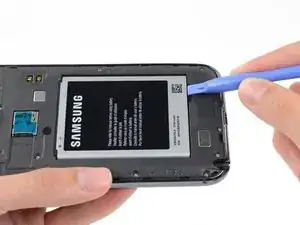

Insert a plastic opening tool, or your finger, into the notch of the battery compartment and lift the battery upward.

Schritt 7

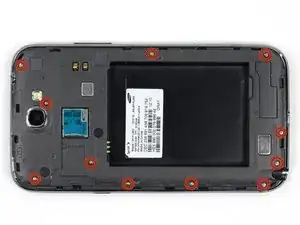

Remove the eleven 4.0 mm Phillips #00 screws securing the midframe to the display assembly.

In my phone some of the screws are litterally not ot turn - I screwed up one of the heads - be careful!

erich zalcmann - 25/08/14

I have 2 note 2 phones model #: SGH-I317M. I have a broken screen that does not display in my note 2 but my brother's note 2 is working perfectly. Can I either transfer the motherboard in MY note 2 to my brothers note 2 or swap the broken screen with the new screen in my brother's note 2 ? Thanks. Reach me at anmac1789@gmail.com

An Mac - 02/09/16

Schritt 8

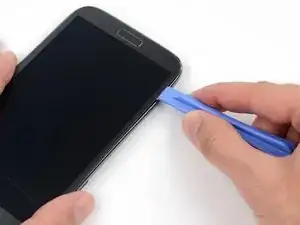

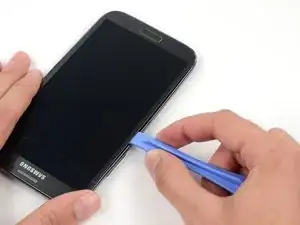

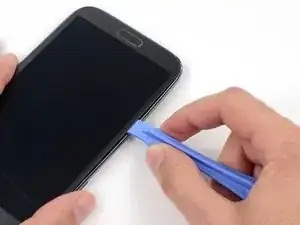

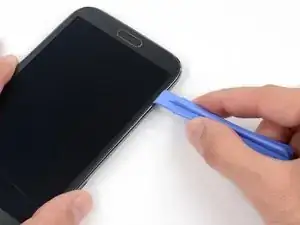

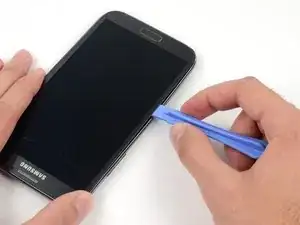

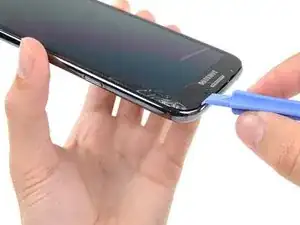

Insert your plastic opening tool between the midframe and front panel assembly on the side of the phone.
Slide the plastic opening tool down the seam.

I didn't have an opening tool, so I used a stiff guitar pick. Worked like a charm.

evanjpederson - 31/12/15

for best result without any scratches or breaking frame, open the frame on table (solid), don't open on hand.

Chovav Sutachy - 18/07/17

Schritt 9

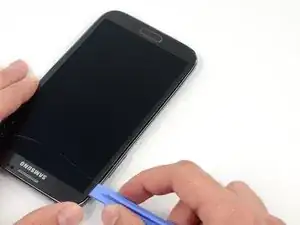

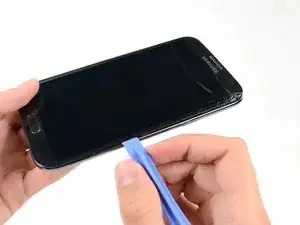

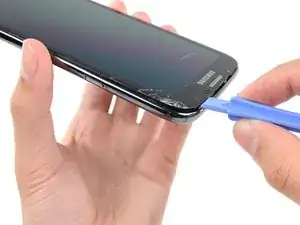

Continue to run the plastic opening tool down the seam.

Schritt 10

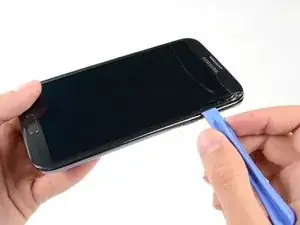

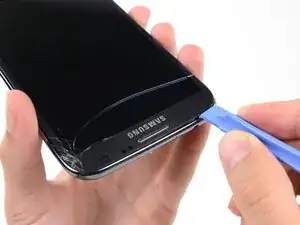

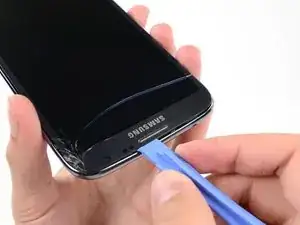

Carefully pry around the corner with a plastic opening tool.

The screen cracked using that plastic tool.

hell0allis0n - 13/04/18

Schritt 11

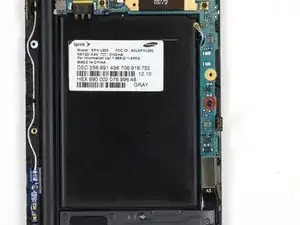

Pry along the top of the phone with a plastic opening tool.

Schritt 12

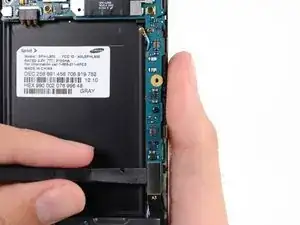

Push the plastic opening tool down to free the corner of the midframe from the display assembly.

Schritt 13

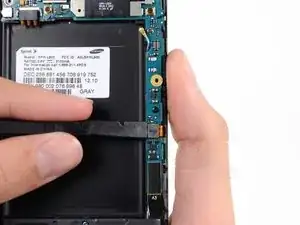

Free the clips along the power button side of the phone.
Lastly, free the two clips along the top and bottom edge of battery compartment.

Start with the top clip. You can see it located next to the three battery connectors. Insert the spludge from the side gently to push, the clip should go off.

Once this clip is off, the bottom battery clip can be unclipped simply by gently moving the two pieces apart.

anonymous 4780 - 27/01/15

Gan kalok bluetooth hp saya sama wifi nya nggak bisa nelusurin jaringan apa nya yg rusak apa gara gara udah di root

aryadana55 - 31/03/16

If you're primarily following the pictures, as I was, you might be frustrated that your display assembly isn't popping off. Unfortunately, a vital step was listed in the instructions but not photographed:

"Lastly, there are two clips along the top and bottom edge of battery compartment that also hold the display assembly in place."

alimac70117 - 25/12/15

Schritt 14

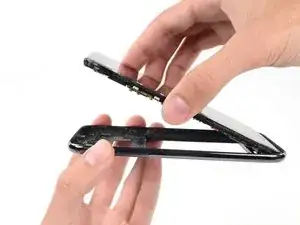

Lift the display assembly out of the midframe.

unblock the edge at the middle-up of the battery compart!

Giorgio - 18/06/14

Schritt 15

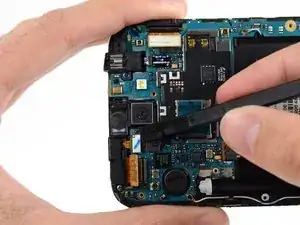

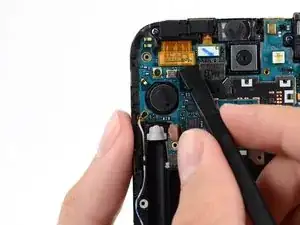

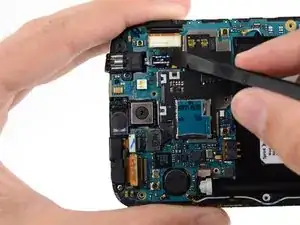

Use a spudger to disconnect the vibrator/power button assembly cable connector.
Disconnect the antenna cable connector.
Disconnect the display cable connector.

Dear Sirs,

My Galaxy Note II is completely dead due to lightning in the house. I guess there is a fuse or a protection somewhere but I can not find it. Can you help ? Thanks in advance, Jose

Jose -

One idea would be to track backwards, i.e. check to see if current is reaching from the charge port to the mainboard. Looking at the following picture http://d3nevzfk7ii3be.cloudfront.net/igi... it seems like the fuse is - as expected - located right by the USB port. If you're lucky it could be as easy as replacing the charging board, a $10 component.

hakro807 -

My Note II LTE does not have the antenna cable like here

Bubbele - 20/11/16

Schritt 16

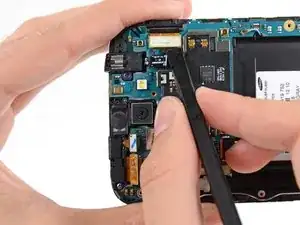

Disconnect the front-facing camera cable connector.
Disconnect the headphone jack cable connector.
Disconnect the digitizer cable connector.

Schritt 17

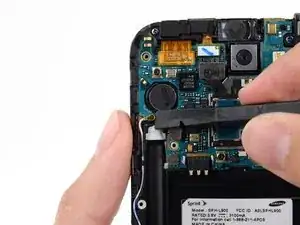

Use the spudger to disconnect the antenna cable connector from the motherboard.
Disconnect the soft button cable connector.
Disconnect the USB board cable connector.

Schritt 18

Remove the 3 mm Phillips #00 screw securing the motherboard to the display assembly.

Is it possible to replace my Note II N7105 motherboard to N7100? Is there some negative effects happen, if i did it?

Eduardo Lucas III - 18/07/17

Schritt 19

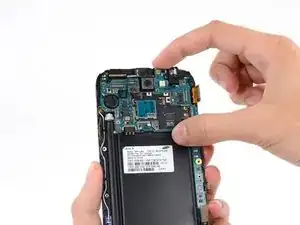

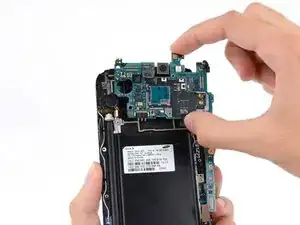

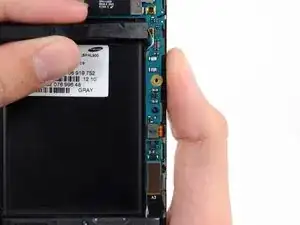

Gently remove the motherboard.
Hold the motherboard by its edges to prevent ESD damage. Be careful not to snag it on any cables as you extract it from the display assembly.

Schritt 20

Remove the 3 mm Phillips #00 screw securing the headphone jack assembly to the display assembly.

Schritt 21

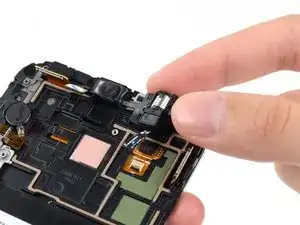

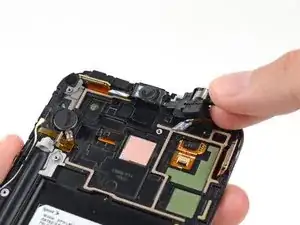

Grasp the headphone jack portion of the assembly and lift it out of its groove in the display assembly.

Schritt 22

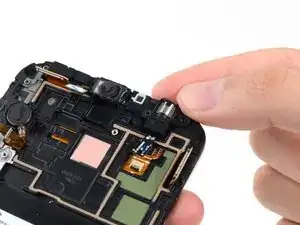

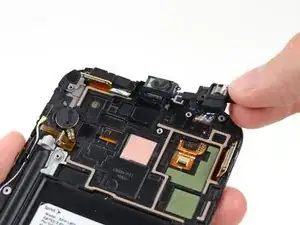

Gently pull the headphone jack straight up without twisting the cable to remove the earpiece speaker portion from its recess.
Twisting or pulling unevenly could damage the cable. Be very careful as you extract the assembly.

Schritt 23

Remove the 3mm Phillips #00 screw from the front-facing camera bracket.

Schritt 24

Remove the front-facing camera bracket.

Schritt 25

Remove the front-facing camera.

Schritt 26

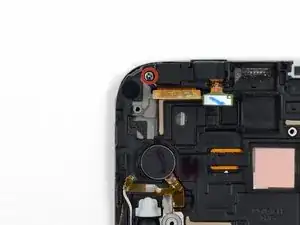

Remove the 3 mm Phillips #00 screw securing the antenna board to the display assembly.

Schritt 27

Insert the tip of a spudger under the antenna board to free it from the adhesive holding it to the display assembly.

Schritt 28

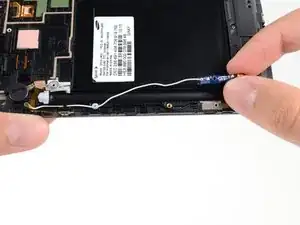

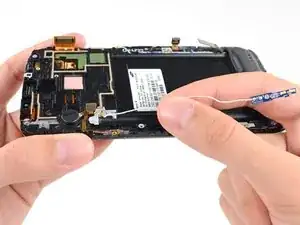

Gently de-route the antenna cable from its channel in the display assembly.

Schritt 29

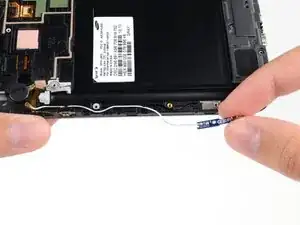

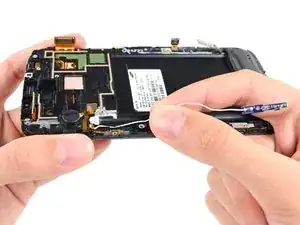

Remove the antenna cable from the display assembly.
When reassembling your device, install the USB board and attach the antenna connector before routing it into the channel. This will ensure the proper placement of the antenna cable connectors.

Schritt 30

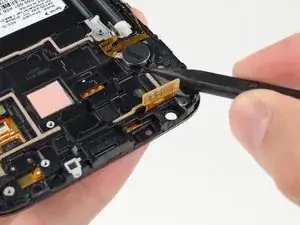

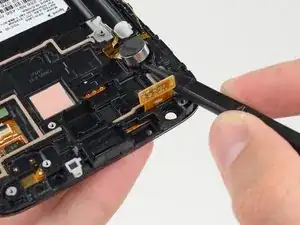

Insert the tip of a spudger under the vibrator to free it from the adhesive holding it to the display assembly.
Do not attempt to remove the vibrator entirely as it is still attached to the vibrator/power button assembly.

Schritt 31

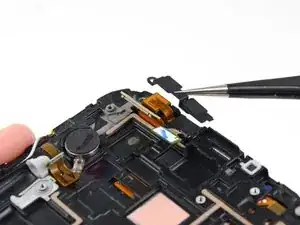

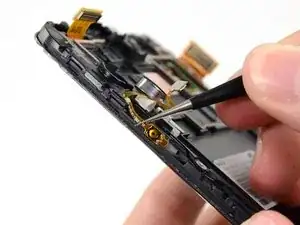

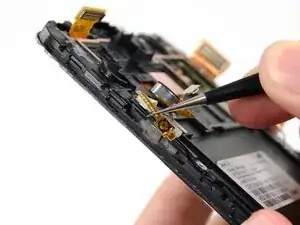

Use tweezers to detach the power button from the adhesive securing it to the display assembly.
Remove the vibrator/power button assembly from the display assembly.

Schritt 32

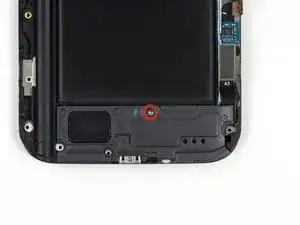

Remove the 3 mm Phillips #00 from the speaker enclosure.

Schritt 33

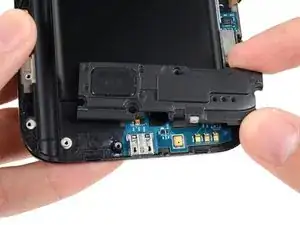

Remove the speaker enclosure.

Schritt 34

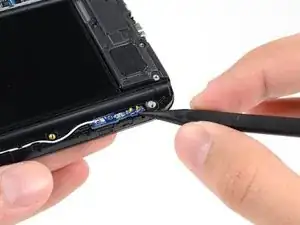

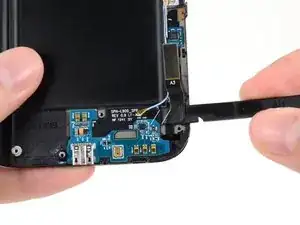

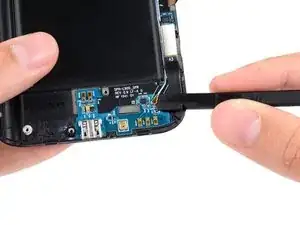

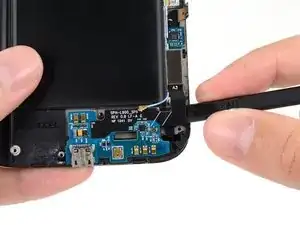

Use the flat end of a spudger to disconnect the antenna cable connector from the USB board.

Schritt 35

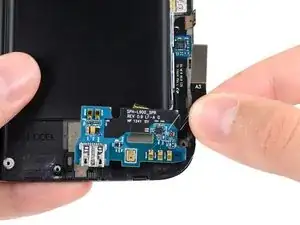

Push the flat end of a spudger under the USB board to separate it from the display assembly.
Insert the spudger at a shallow angle to avoid bending or damaging the USB board.
Remove the USB board from the display assembly.

Schritt 36

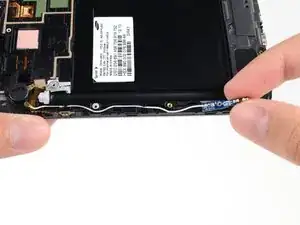

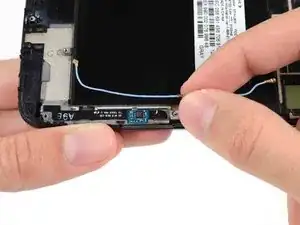

Gently deroute the antenna cable from its notch in the display assembly.
Remove the antenna cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
