Samsung Galaxy Note II USB Board Replacement

Geschrieben von: Sam Goldheart

Kommentare: 20

Samsung Galaxy Note II USB Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

25 Minuten - 1 Stunde

Einleitung

Use this guide to replace the USB board in a Samsung Galaxy Note II.

Werkzeuge

Ersatzteile

Schritt 1

Grasp the end of the stylus and remove it from its slot in the midframe.

Schritt 2

Pry with a plastic opening tool, or your fingernail, in the divot to the left of the rear-facing camera, near the power button.

Schritt 3

Lift the rear case by the corner nearest the divot and remove it from the phone.

Schritt 4

If you have an SD card inserted, use the flat end of a spudger, or your fingernail, to press the microSD card slightly deeper into its slot until you hear a click.
After the click, release the card and it will pop out of its slot.
Remove the microSD card.
For reassembly, push the microSD card into the slot until it clicks in place.

Schritt 5

Insert a plastic opening tool, or your finger, into the notch of the battery compartment and lift the battery upward.

Schritt 7

Remove the eleven 4.0 mm Phillips #00 screws securing the midframe to the display assembly.

In my phone some of the screws are litterally not ot turn - I screwed up one of the heads - be careful!

erich zalcmann - 25/08/14

I have 2 note 2 phones model #: SGH-I317M. I have a broken screen that does not display in my note 2 but my brother's note 2 is working perfectly. Can I either transfer the motherboard in MY note 2 to my brothers note 2 or swap the broken screen with the new screen in my brother's note 2 ? Thanks. Reach me at anmac1789@gmail.com

An Mac - 02/09/16

Schritt 8

Insert your plastic opening tool between the midframe and front panel assembly on the side of the phone.
Slide the plastic opening tool down the seam.

I didn't have an opening tool, so I used a stiff guitar pick. Worked like a charm.

evanjpederson - 31/12/15

for best result without any scratches or breaking frame, open the frame on table (solid), don't open on hand.

Chovav Sutachy - 18/07/17

Schritt 9

Continue to run the plastic opening tool down the seam.

Schritt 10

Carefully pry around the corner with a plastic opening tool.

The screen cracked using that plastic tool.

hell0allis0n - 13/04/18

Schritt 11

Pry along the top of the phone with a plastic opening tool.

Schritt 12

Push the plastic opening tool down to free the corner of the midframe from the display assembly.

Schritt 13

Free the clips along the power button side of the phone.
Lastly, free the two clips along the top and bottom edge of battery compartment.

Start with the top clip. You can see it located next to the three battery connectors. Insert the spludge from the side gently to push, the clip should go off.

Once this clip is off, the bottom battery clip can be unclipped simply by gently moving the two pieces apart.

anonymous 4780 - 27/01/15

Gan kalok bluetooth hp saya sama wifi nya nggak bisa nelusurin jaringan apa nya yg rusak apa gara gara udah di root

aryadana55 - 31/03/16

If you're primarily following the pictures, as I was, you might be frustrated that your display assembly isn't popping off. Unfortunately, a vital step was listed in the instructions but not photographed:

"Lastly, there are two clips along the top and bottom edge of battery compartment that also hold the display assembly in place."

alimac70117 - 25/12/15

Schritt 14

Lift the display assembly out of the midframe.

unblock the edge at the middle-up of the battery compart!

Giorgio - 18/06/14

Schritt 15

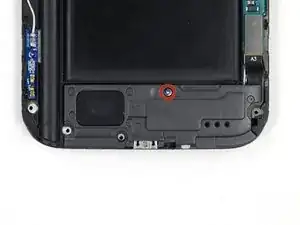

Remove the 3 mm Phillips #00 screw from the speaker enclosure.

Schritt 16

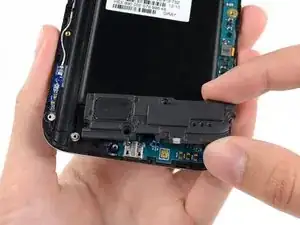

Remove the speaker enclosure.

Schritt 17

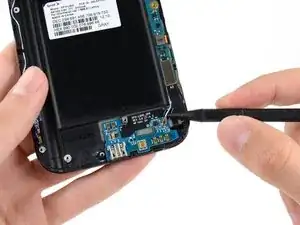

Using the flat end of a spudger, disconnect the USB board cable connector.

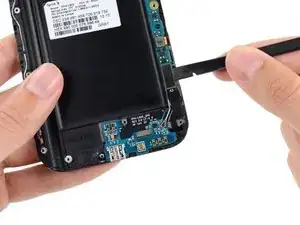

Use the tip of a spudger to disconnect the antenna cable connector from the USB board.

Schritt 18

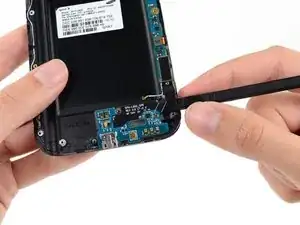

Push the flat end of a spudger under the USB board to separate it from the display assembly.
Insert the spudger at a shallow angle to avoid bending or damaging the USB board.

Schritt 19

Remove the USB board from the display assembly.

I have a part labelled GT-N7100, whereas my Note2 is an SGH-i317. Does this make a difference? Visually, there is a slight difference.

Curtis H - 26/07/14

Abschluss

To reassemble your device, follow these instructions in reverse order.
