Samsung Galaxy Note Pro 12.2 Motherboard Replacement

Geschrieben von: La'Taja Long
  • Kommentare: 4
Samsung Galaxy Note Pro 12.2 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 20 Minuten

Einleitung

Replacing the motherboard of your Samsung Galaxy Note Pro 12.2 (Galaxy SM-P900) device can provide faster RAM, faster data transfer, for increased performance.

The motherboard is responsible for power and communication between all of your hardware components delicately connected to it on your tablet device. This is why many hardware components need to be removed from the device before removing the motherboard. Steps 1-5 will walk you through the removal of those components.

Lastly, be sure that your device is powered off before beginning the disassembly process.

  1. IoT4JlOJaOXFAm6o

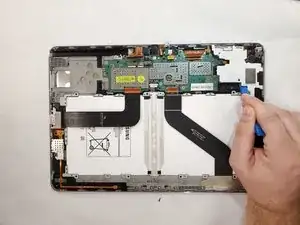

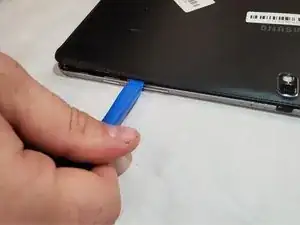

    • Remove the back cover with the blue plastic opening tool.

  2. YsGjSMHlNMGZfYrS
    YsGjSMHlNMGZfYrS
    k5m4SEhfQ2uuuySt

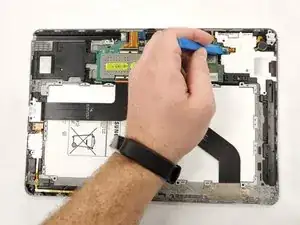

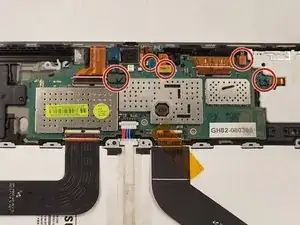

    • Disconnect the five base connectors from the motherboard by using the blue opening tool to carefully remove the connectors.

  3. xH1RpkqXlWhSFMKb
    xH1RpkqXlWhSFMKb
    1BlfgrIM6UqPKMEC

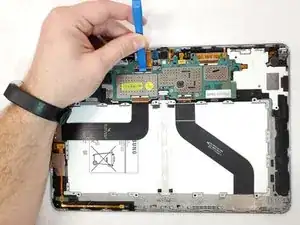

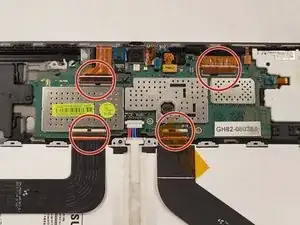

    • Remove the yellow tape on the ribbon cables before attempting to disconnect them from the motherboard.

    • Using the blue opening tool, pry on the black tab at the base connector of ribbon cables until it is flipped up and moves with ease. Then, pull the ribbon cable from the base connectors of the motherboard.

  4. vnROiVYKcr2fZKdR
    vnROiVYKcr2fZKdR
    rIESrCwOOxdpeSMW

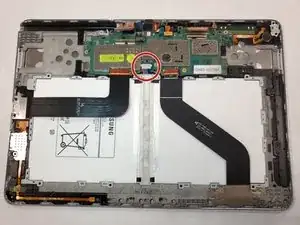

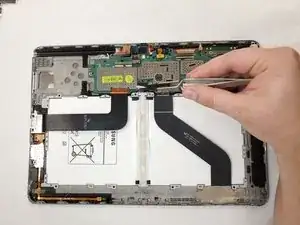

    • Potential damage to the motherboard could occur without supporting the black motherboard connector as the white cable connector is being removed.

    • Remove the power cable from the motherboard by prying slightly on both sides of the clip using tweezers.

  5. EoaVVPAnkdEoUDN5
    EoaVVPAnkdEoUDN5
    FCnNPtGnCceKWpGX
    51FuYO4kpB2xKTq1

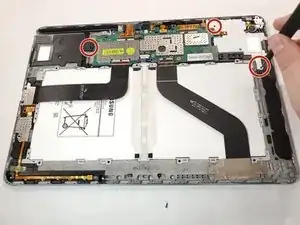

    • Remove all three of the 3.0 mm screws using the Phillips #00 screwdriver.

    • It is easiest to pry on the points depicted in the pictures for the next step.

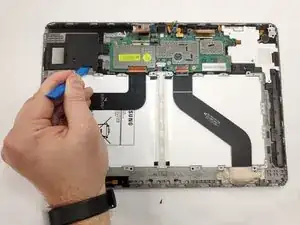

    • Use the blue plastic opening tool to pry the speakers up from the clips that hold them in place.

  6. 5y6KAoSp3srxyOeC

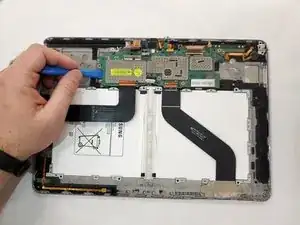

    • Remove the motherboard using the blue opening tool while keeping any wires and connectors out of the way.

    • The motherboard should come out freely.

    Hello. Please can you direct me to a site I can purchase the motherboard? Mine got burnt. Thank you.

    Ismail Yahaya -

    Hi Ismail, sorry to hear about your motherboard. We sell motherboards for this device in our store but they are currently out of stock. I'm checking for you to see when they'll be back in stock. Alternatively, eBay can be a source for parts or a used device and maybe you can harvest parts. I'll let you know as soon as I hear anything. Thanks!

    Sarah Westberg -

    Hi Ismail, we're not sure when we'll have more motherboards for this device. We hope to have them in the future but don't have a date. You might try eBay like I mentioned or Amazon sometimes has parts too. I'm sorry I don't have a more definitive answer for you. I hope you find a motherboard soon!

    Sarah Westberg -

Abschluss

To reassemble your device, follow these instructions in reverse order.
