Samsung Galaxy Note Pro 12.2 SD Port Replacement

Geschrieben von: Tina Kong
  • Kommentare: 0
Samsung Galaxy Note Pro 12.2 SD Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

If your device is unable to read your SD card, you may need to replace your port. This guide will show you how to safely replace your SD port.

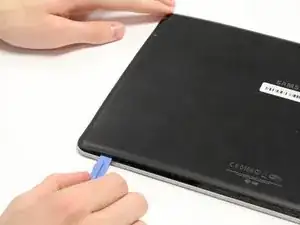

  1. QFgye3pu5xRGFg4K

    • Turn off your device before starting your repair.

    • Carefully remove the back cover with the plastic opening tool.

    • It is best to start with one corner and work your way around the device slowly.

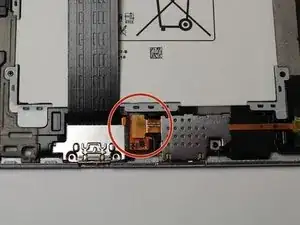

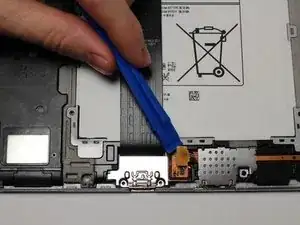

  2. VGS3Ua1byodYkwBQ
    VGS3Ua1byodYkwBQ
    jaBfkFlb1RGHIcdl

    • Pop up the orange tab connected to the SD port with the plastic opening tool.

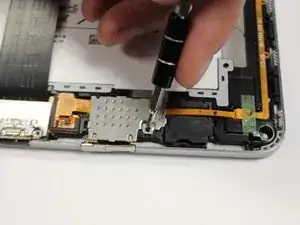

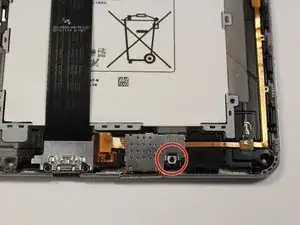

  3. LtssU1EbZasddAjR
    LtssU1EbZasddAjR
    2wMdjDCViQV2uexl

    • Remove the one 3mm Phillips #00 screw connected to the SD port.

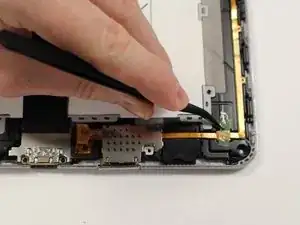

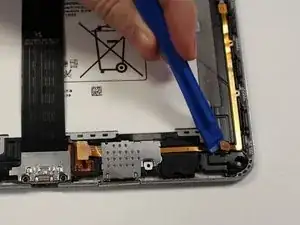

  4. BkesJMa5aoFrqkLB
    BkesJMa5aoFrqkLB
    MyULALMoPJxkPmio

    • Pop open the orange wire tab connected to the SD port with the plastic opening tool.

    • If there is tape covering your tab, remove it with the tweezers before you pop open the tab.

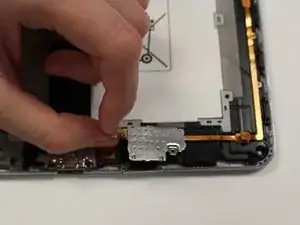

  5. JXcDttoVUQSFdgRE
    JXcDttoVUQSFdgRE

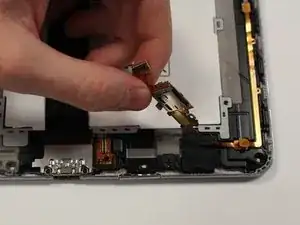

    EmK2NhqNibLVvZ6p

    • Using the orange tab, pull the SD port up and away from the device.

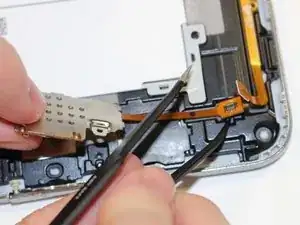

  6. FXeOWqjGb6pyreoT

    • Using the plastic end of the tweezers pop up the orange tab connecting the SD port to the device.

    • There is a little indent below the orange tab to help get under this piece. It may be difficult to remove, push up hard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
