Einleitung

This guide will show you how to locate and replace the camera for the Samsung Galaxy Prevail 2. No background information is required.

  1. al6f2XNlBLvW4FHc
    al6f2XNlBLvW4FHc
    P3X12JWuwFDN5cvM
    LRLBwLQcxBE4R3aJ
    • Using your finger nails or the spudger; pry the plastic casing open, and pull away from the body of the phone.

  2. B6qrvgNlTKmKKSyt
    B6qrvgNlTKmKKSyt
    KKjASFBeg2hrNC2S
    K262LKNob34WOewl
    • Gently pull the battery out of the phone.

  3. BobTOISfqe4dupNb
    BobTOISfqe4dupNb
    ZKxLgwBHInhOO4BU

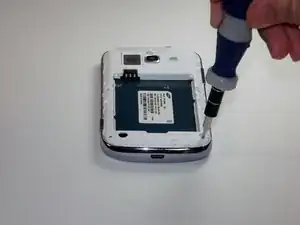

    • Unscrew all of the screws.

    • Be sure to set the screws aside in a safe place.

  4. WNIbMqU5aP1sH4EB
    WNIbMqU5aP1sH4EB

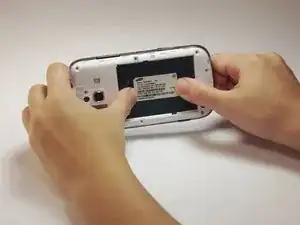

    k2VTndsDZUwaqQS1

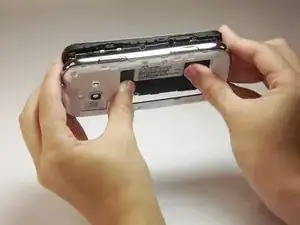

    nZAhIEBHUeqHUyJ4

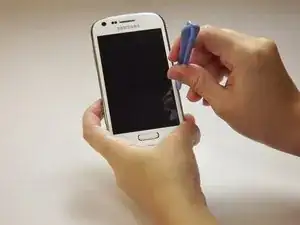

    • Insert the plastic prying tool between the silver frame and the white face of the phone to pry off the front frame.

    • Make sure to pry around the entire frame before attempting to loosen it.

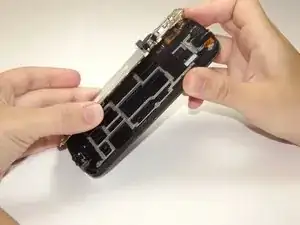

    • Push the motherboard out using your thumbs as shown

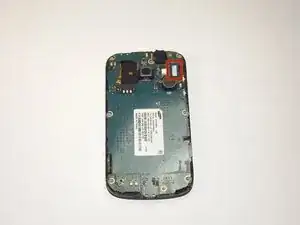

  5. FA1ZYUBGfVQHiZtb
    FA1ZYUBGfVQHiZtb
    WybXHbHviZTaXEmZ
    GsEdGOGP5BRTaGcT

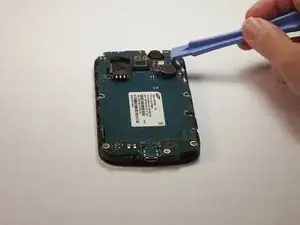

    • Lift the flap up using the plastic prying tool.

  6. 4fRVOvSOOw2YEBC2
    4fRVOvSOOw2YEBC2
    FevURUeQ5SgRhYpB
    1iCmWmyGLKAxMU1d

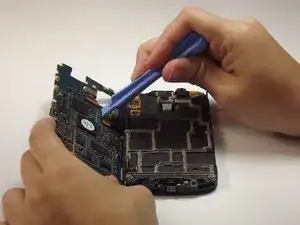

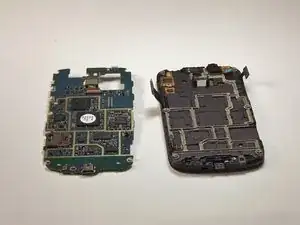

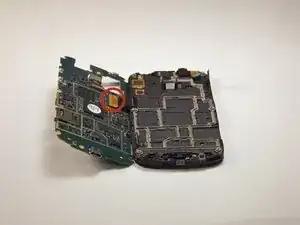

    • Lift the second flap to detach the motherboard completely.

  7. NMOVjmXaNLh1b1n4
    NMOVjmXaNLh1b1n4
    LGXdgHGOQWoUKNYd
    bDDptQHTkp5sPThD

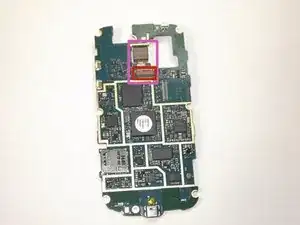

    • With plastic prying tool, lift the flap connected to the camera (indicated in red) to remove it.

    • Be sure that you are looking at the back face of the motherboard.

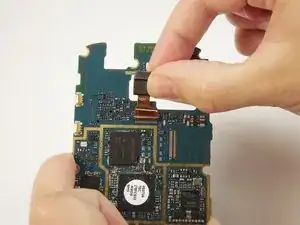

  8. Ms2VK4mMA1qdPRV5
    Ms2VK4mMA1qdPRV5
    haARLuLNRwP31LX3

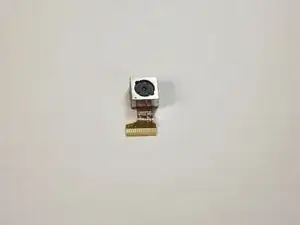

    ZsFeUSymFqNa3jb3
    • Carefully lift and remove the camera from its position.

Abschluss

To reassemble your device, follow these instructions in reverse order.
