Einleitung

This guide will illustrate how to replace the front camera.

  1. QPZSmunIMH2LXs4u
    QPZSmunIMH2LXs4u
    AsJKeYVbXpes4fUg

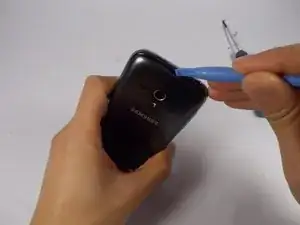

    • Looking at the back of your phone, use your finger to remove back cover.

  2. VeOrHRvHtf1aVDRY
    VeOrHRvHtf1aVDRY
    wYIFdQHfCg2qKQro

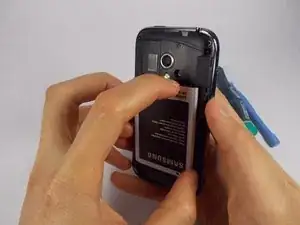

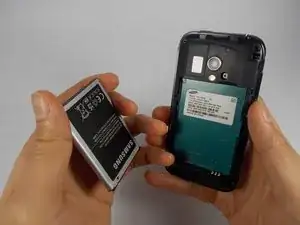

    • Remove the battery,

  3. tOBgLATSjVZYhWkS

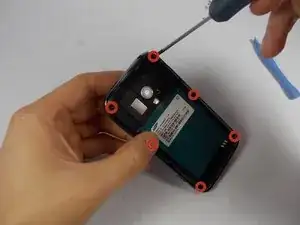

    • With a small phillips-head screw driver, remove the six screws holding the back panel in place.

  4. MfSYWVpru4bMXVcG
    MfSYWVpru4bMXVcG
    NF25TEREdXi4Zf1V

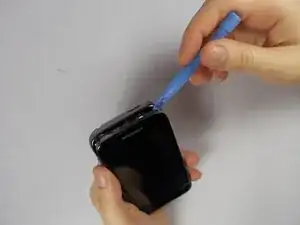

    • Use the pry tool to pry the back panel from the rest of the phone. Pry from the edge closest to the screen for simplicity.

  5. KytIiYmHPKZFD2Wj
    KytIiYmHPKZFD2Wj
    Rvpc4qDACLTyqwmh
    • Using tweezers, gently lift connectors from motherboard.

    • A connector will be on the upper left

    • The second connector is located towards the top of the phone. Above the camera. It comes off with ease.

  6. ERLGnRRmfGeTGIfu
    ERLGnRRmfGeTGIfu
    6dYUkc5wIRMmibZC
    • Use the tweezers to carefully remove the 2 adhesive orange ribbons.

    • These stay attached to the motherboard so be careful not to break them.

    • They are on the side of the phone.

  7. CwHMTPAtF1iKjGTC

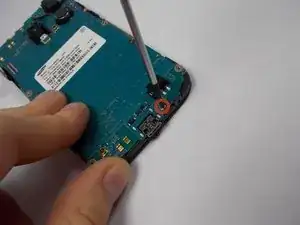

    • Use a philips-head screwdriver to remove the single screw on the bottom of the phone. Located to the right of the charging port.

  8. kU6aq3YQLEYgjXSD

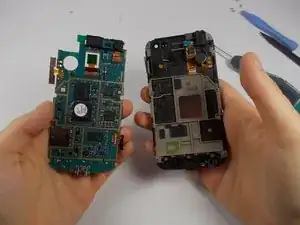

    • Lift the motherboard upwards separating it from your screen.

  9. Dr5VSBcgROnUawHa
    • Hold motherboard so that the circuits face away from you

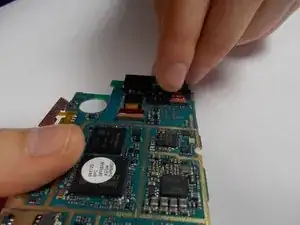

    • Pop off the two black tabs on the upper most part of the motherboard.

  10. uWmAFL6XPDSagCVi
    • Flip the motherboard over so that the circuits are now facing your direction.

  11. YwiDgcBGFlc315l1
    YwiDgcBGFlc315l1
    4wrkqCTBnh3ObFXV

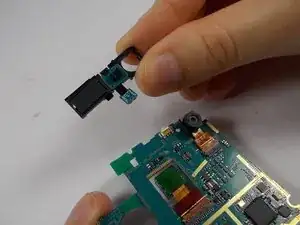

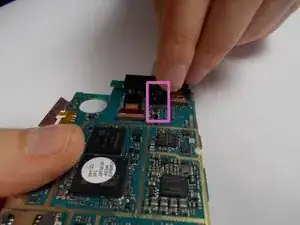

    • Lift and remove the connecting tab

  12. MKjEqsZjBHflMhGP
    MKjEqsZjBHflMhGP
    lh3JK2X2qRrKZeaa

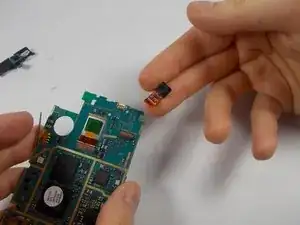

    • Gently take the front camera with two fingers and pull upwards. A wiggle may help.

Abschluss

To reassemble your device, follow these instructions in reverse order.
