Einleitung

  1. 4xucp5mgQhHCtiUC
    4xucp5mgQhHCtiUC
    Yrnoq2JXXJVxnQcC
    GMUKjxO41ypAIYYp

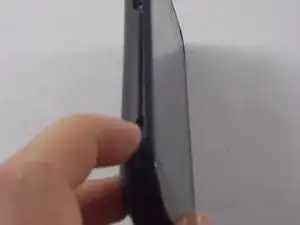

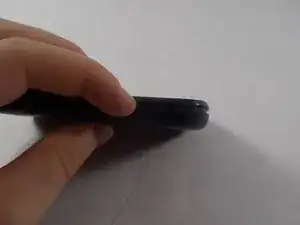

    • Start by removing the back plastic cover by lifting it up from the notch on the left side of the phone

  2. QARBRCLZRNoLY1NQ

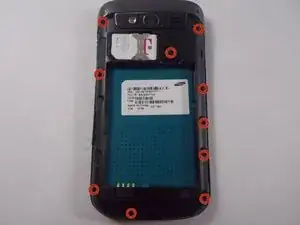

    • Remove the battery and use a small Phillips head screwdriver to remove the marked up screws

  3. ZnwlLLHFbiFAAfcV
    ZnwlLLHFbiFAAfcV
    5sSFWVFLH4Q2mXOR

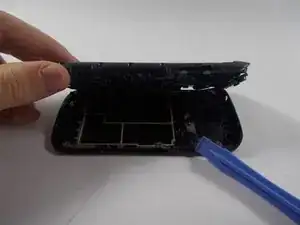

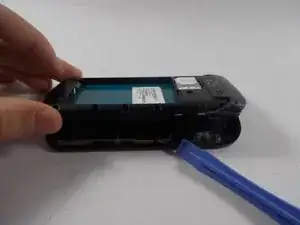

    • Use a flat tool to pry the two plastic cases apart

    • The latches are very strong, so don't be afraid to use force

  4. EsV3SrPEbyRp2nIK
    EsV3SrPEbyRp2nIK
    3hPCNfTrGmHQKGM2
    lnHNgXVIa5iEV6ZP

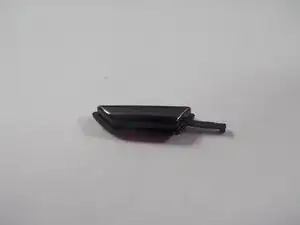

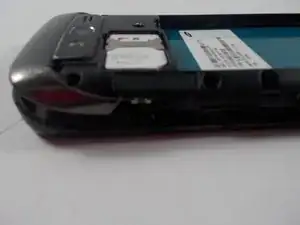

    • Locate the missing button slot

    • Place in replacement button, and close the plastic housing around it

    • The button should be fully functional now, repeat past steps to reassemble the phone

  5. 2FJcXKl2GXBtYvTv
    • Gently remove the two ribbon cables as shown.

    • Connect the new screen to the main motherboard just as the same way they were connected.

    • Be careful not to crimp or bend the ribbon cables, as this will ruin the replacement.

    • Repeat the steps in reverse order to reassemble the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
