Samsung Galaxy S Blaze Display Replacement

Geschrieben von: oldturkey03
  • Kommentare: 1
Samsung Galaxy S Blaze Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

The digitizer and the LCD are fused together. It is necessary to replace both, unless somebody has the equipment to release the bond between those LCD and the digitizer. This is a straight forward repair with no surprises and no hidden cables, clips or screws.

  1. 6PPNlJ4qFtC5s4Eb
    6PPNlJ4qFtC5s4Eb
    3mUYCgky2h5SbWfK
    SDYiGGLse6AO3LxB

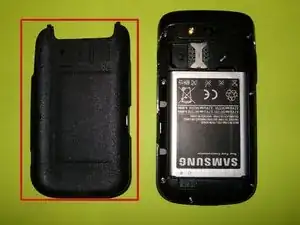

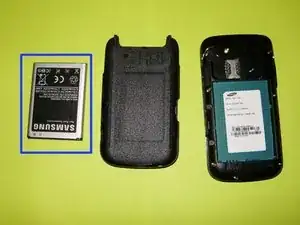

    • Remove the battery cover,

    • the battery and the SIM card if your phone has one.

  2. ICl1GwGHHsa5dFYQ
    ICl1GwGHHsa5dFYQ
    cQ6MMLMtPJyAlul4
    csJJVOEeK2OkfI5D

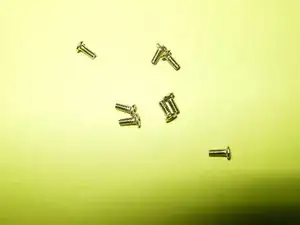

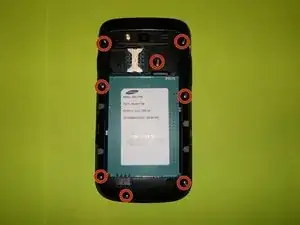

    • Remove the eight Phillips head screws

    • All eight screws are 4mm and are identical. No reason to keep them separated.

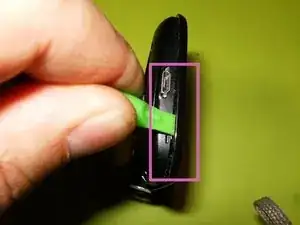

    • Use a plastic opening tool to separate the frame from the phone

  3. xr2EWqReKH3iPExy
    xr2EWqReKH3iPExy
    cbggi4OejJcrYY66
    YhAVmMvyDRoqqxxO

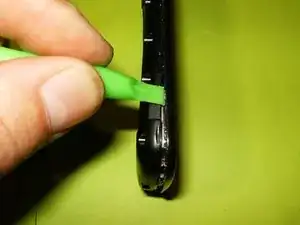

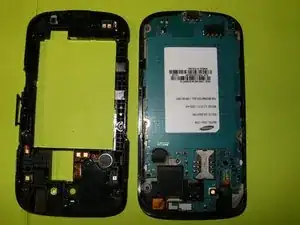

    • Continue to work all the way around the frame.

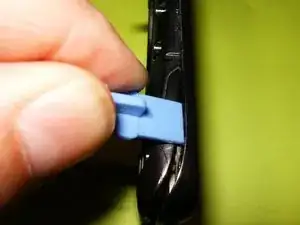

    • Different size of the plastic opening tools can be used

    • Separate the frame

  4. gtsyUXcN4p5LMZBP
    gtsyUXcN4p5LMZBP
    d1WXaRtpNRYKnCHU
    4xR6oPhGSnEJPlWQ

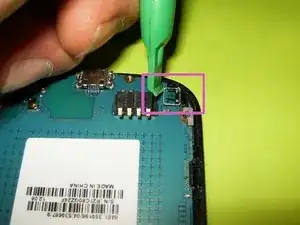

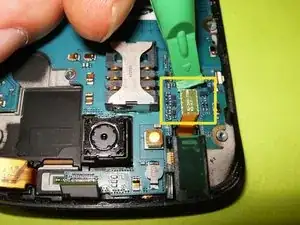

    • Disconnect the front camera flex

    • Disconnect the audio jack flex

    • Disconnect the control button flex

  5. MVwiatv2EkQakaJh
    MVwiatv2EkQakaJh
    SAexJDHkoRwbxkY5
    XmBioGnCUUOgq6yu

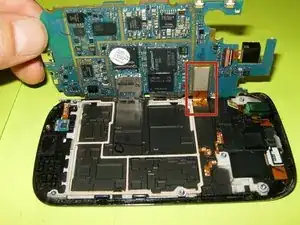

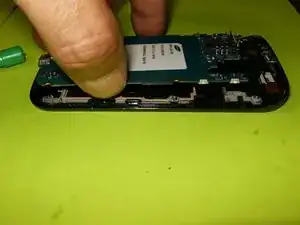

    • Gently lift the logic board above the frame,

    • and flip it to its side. Remove the LCD flex

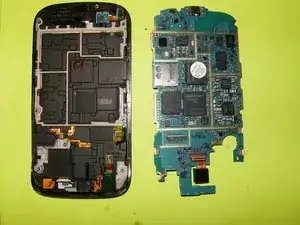

    • The logic board can now be safely removed.

  6. f2X4sTN35CIaZqfS
    f2X4sTN35CIaZqfS
    LQbIvkHm5VdGreRB
    LeXvBDZGfpxHS4NB

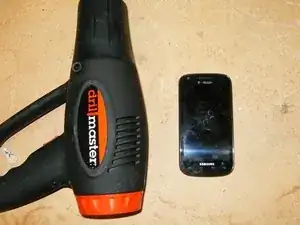

    • The front display is adhered to the frame. It will be necessary to use a heatgun (on very low) or a good hairdryer to loosen the glue.

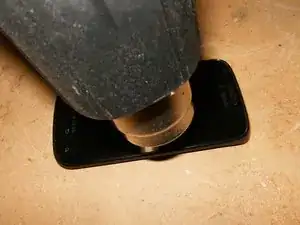

    • Apply the heat on the outside of the display. Do not stay to long in one are, move the heat continously around the outside of the display.

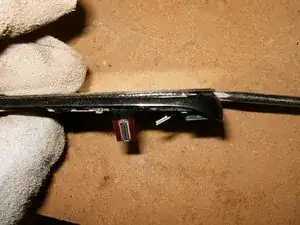

    • With the glue soft enough, use a small spatula, screwdriver or other small tool to separate the display from the frame.

    • The LCD may separate from the digitizer and remain affixed to the frame. This will cause a sparkly mess.

  7. dZajuOXE3S2HGjDX
    dZajuOXE3S2HGjDX
    orYAMmPQlGWotJGJ
    dbHcjxhABa1fALP5

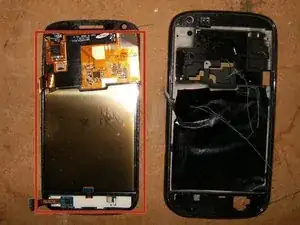

    • LCD is now removed from the frame.

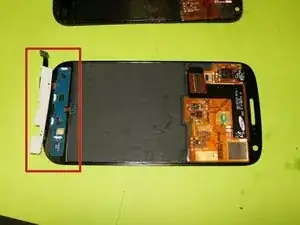

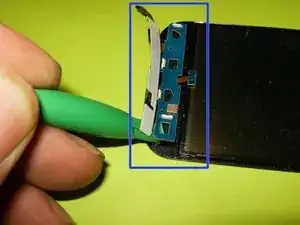

    • The PCB for the buttons is glued to the bottom of the LCD. Remove it slowly and carefully. An opening tool will make it easier.

    • There will be enough adhesive on the button PCB to adhere it to the new LCD.

Abschluss

To reassemble your device, follow these instructions in reverse order. The frame should have enough adhesive to provide a secure grip. If additional glue should be necessary, preference should be given to rubber cement. This will ensure that, should another display replacement be necessary, the glue will come off with heat again.
