Samsung Galaxy S II Front Glass/Digitizer Replacement

Geschrieben von: ZFix

Kommentare: 12

Samsung Galaxy S II Front Glass/Digitizer Replacement

Schwierigkeitsgrad

Very difficult

Schritte

Zeitaufwand

25 - 35 Minuten

Einleitung

If you have a Samsung GALAXY SII with broken Touchscreen or LCD Display, this manual will guide, how to change them.

This procedure is very hard. You must have good experience to do this !!!

Same steps you can use for replacing Touchscreen&LCD display with frame. This operation is more easy. If you haven't enough experience, I strongly recommend you, to choose this variant.

_______Video manual_______

Werkzeuge

Schritt 1

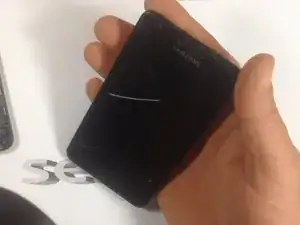

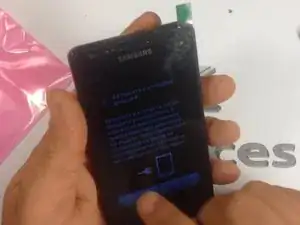

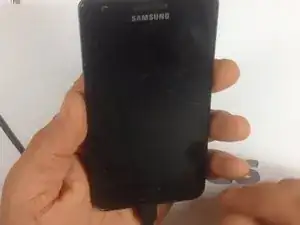

We have a Samsung Galaxy S II with broken screen.

Schritt 2

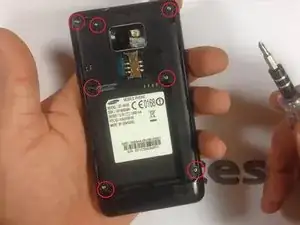

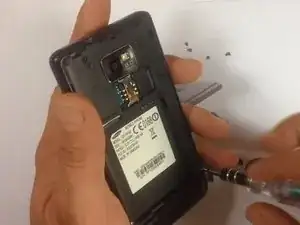

Remove your battery, the SIM card and the SD card.

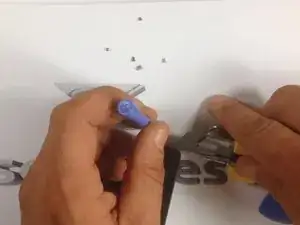

Remove the 7 screws highlighted in red.

Schritt 3

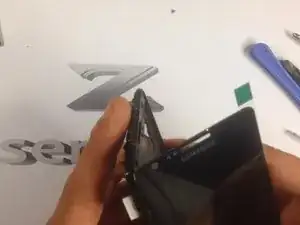

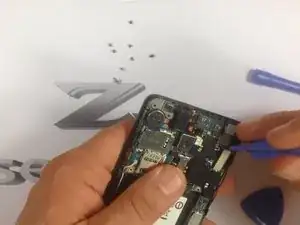

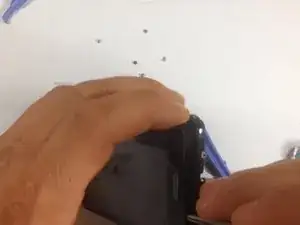

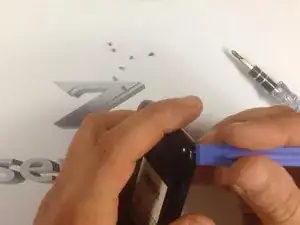

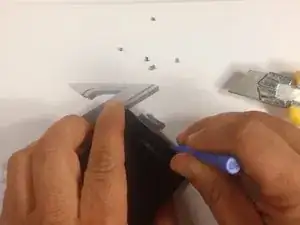

Use a plastic tool to remove the rear housing.

Schritt 4

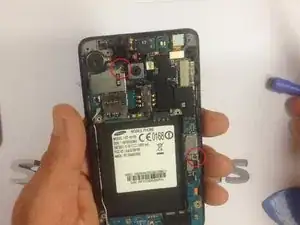

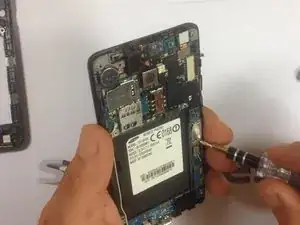

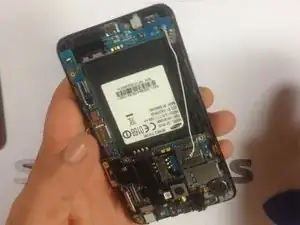

The mother board is held by 2x screws. Remove them.

Schritt 5

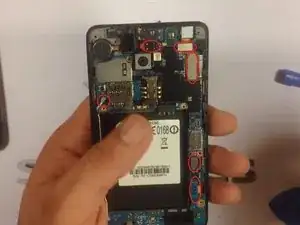

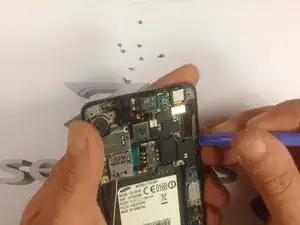

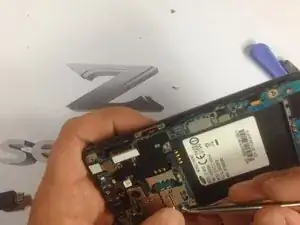

Remove the cables that are highlighted in red, before continuing to the screen.

Schritt 6

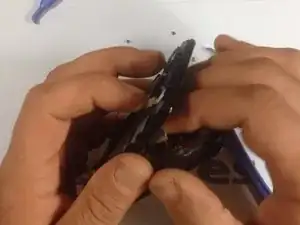

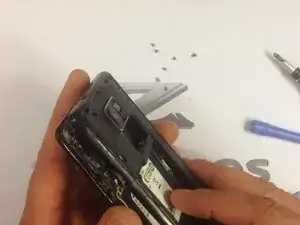

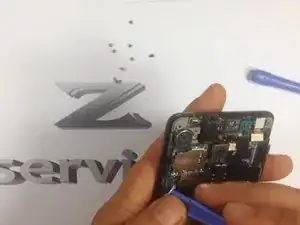

Release the side buttons. The arrow will point you to where they are.

Schritt 7

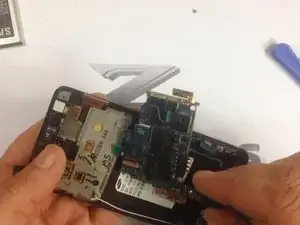

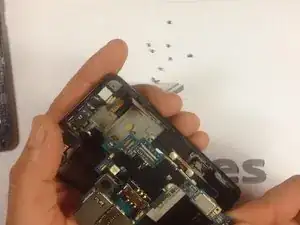

Careful release the motherboard from it's housing.

Schritt 8

At this moment if you have touch screen with LCD and frame like spare part you are ready for replacing.
We will continue with disassembling LCD and Touch from the frame. Now preheat it before removing!
Use a hot air to soften the adhesive enough to remove the glass.

How can we preheat without damaging the digitizer. Especially if all we need to replace is the front glass only?

Thank you.

Douglas Mutay -

I have to fix my daughters SII and I would also like to know how to preheat the glass? There's nothing in the video either - please help?

Alan Mascall - 02/05/14

If you haven't experience don't try this. You can buy complected part - Touch screen+ Display+Frame. I reheat it until is hard to hold it. There isn't problem if you preheat the screen because this is the broken part. You must take care for the frame.

ZFix - 08/05/14

Schritt 9

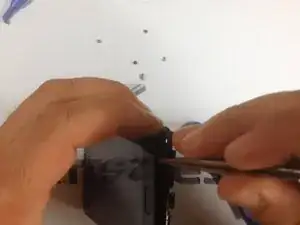

With a cutter, make a room for a plastic tool, then continue with separating the Touchscreen & LCD Display from the frame.

Schritt 10

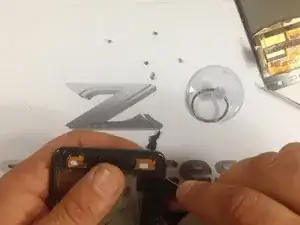

Be careful with the menu buttons flex cable in the bottom side of the touchscreen. You must release it before separating the digitizer from the frame.

Schritt 11

Now, use a suction tool to remove the screen from it's housing. Be careful when doing this, to prevent possible injury.

Schritt 12

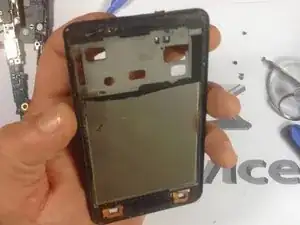

Clean the frame from the remains of tape.

Schritt 13

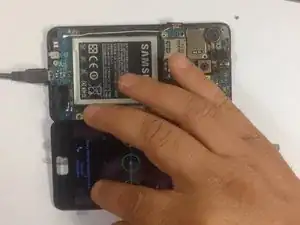

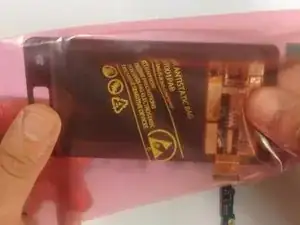

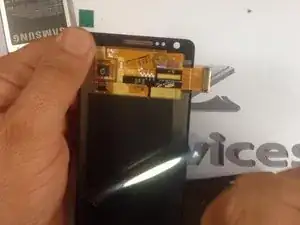

Test the new spare part before reassembling.

Schritt 14

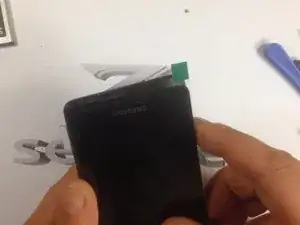

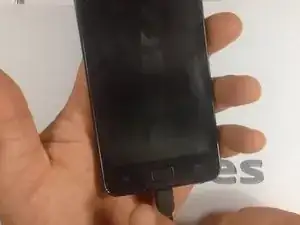

Install the LCD&Digitiser on it's housing.
Many times the spare parts come without adhesive tape. In this situation you'll need to install double sided adhesive tape yourself. Also you can easy find adhesive sticker exactly for the model.

Schritt 15

To reassemble your device, follow these instructions in reverse order.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

ZFix

Mitglied seit: 09/12/13

188213 Reputation

9 Kommentare

I attempted to replace the display glass alone on a Virgin Mobile Galaxy SII, and was unsuccessful. Removing the Glass from the Digitizer proved to be extremely difficult. It seems as if the Virgin Mobile version of the SII is not meant for repair, so easily.

Edward Weissbard -

Yes, removing the glass is very difficult and you must have some experience from before.

ZFix -

To moderators: please un-archive this guide: there's no replacement or "updated version of the guide" among the current guides.

yurkennis -

To moderators :

please there is a photo of a babe in the video tutorial and in the photo tutorial, not for children.

Frederic Morelli - 09/10/15

how much the cost in replacement display with fame.....samsung galaxy s2

Bhola Shrestha - 21/02/16

I tried replacing only the glass. I had two Samsung S2 phones:

Phone 1: Samsung Galaxy S2 with broken LCD only

Phone 2: Another Samsung Galaxy S2 with broken glass only

So I tried to swap the glass from phone 1 to phone 2. I heated the glass with a hairdryer for a few minutes. The glue is stronger than other phones, it was hard to get started. I used a tiny flathead screwdriver to lift the corner enough to push a plastic guitar pick under. Use plastic not metal to avoid scratching the glass or LCD. Slowly working the pick around the edge, reheating every 30 seconds, using more picks to keep the glass separate, I got the whole piece of glass off phone 1 intact. I repeated this process with phone 2 and removed the shattered glass, but unfortunately I internally cracked the good LCD while cleaning the screen and edges with some spirits. I would try this again, being more careful not to put pressure on the exposed LCD. I believe this can be completed by any patient and careful amateur like myself. Good Luck!

the bean - 05/10/16

i have two s2's, im keeping the working digitizer and placing it onto the phone with the broken screen because of my motherboard, this guide is wrong in how it says its really hard and it only takes about ten minutes not 35

chris.pallatina - 11/03/17

where i can buy this display? and what is cost ?

Hardik - 09/03/18

I can not open the back of my phone.

Is the A11 that i was sent as a replacement phone 3 days ago..the same as an S11..which i located with directions. These directions state..how to dissemble entire phone! All i need to do is find directions on.. how to take the back panel Off.Sad.

gweneason266 -
