The speaker located on the back of the phone is a larger speaker that is housed in the protective inner plate. This speaker is used when no headphones are plugged in for media and the speakerphone function.
-
-
To remove the rear cover, locate the tab indicated by the red outline.
-
Using your fingernail, gently pry the rear cover.
-
-
-
The inner plate is held on by six screws that are 1/16 of an inch (1.6 mm).
-
Remove the screws with a Philips head precision screwdriver.
-
Place all screws someplace that they will not easily be lost, such as a magnetic mat or a plastic bag.
-
-
-
After the screws have been removed, the only thing holding the inner plate in is several plastic tabs built into the frame of the phone.
-
Firmly pinch the edge, as shown in the picture, and pull the plate away from the frame.
-
If you cannot get a grip on the inner plate, consider using the spudger to pry and lift the plate out.
-
-
-

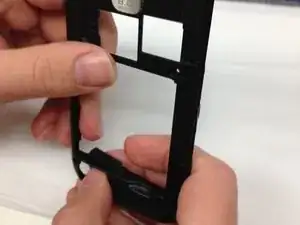

The speaker is located in the area located by the red rectangle.
-

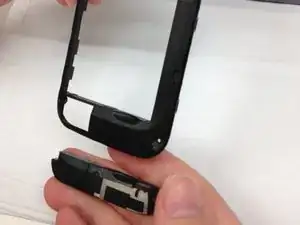

To remove the speaker hold the frame with one hand then push the speaker out with the other.
-
To reassemble your device, follow these instructions in reverse order.
