Samsung Galaxy S III Frontglas austauschen

Geschrieben von: Angela Penaherrera
  • Kommentare: 145
Samsung Galaxy S III Frontglas austauschen

Schwierigkeitsgrad

Schwierig

Schritte

15

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

Gehen wir davon aus, dass dir dein Handy runtergefallen ist und das Frontglas gebrochen ist, aber der Bildschirm noch funktioniert. Du brauchst nicht das ganze Display zu ersetzen ($199), sondern nur das Frontglas ($6 - $10).

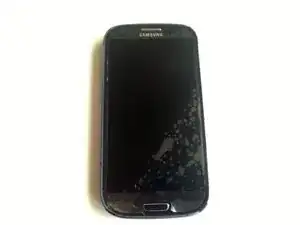

  1. SplWsQjenOOOHFeC

    • Falls dein Gerät schon eine Schutzfolie auf dem Display hat bist du bereit zu beginnen.

    • Falls nicht, schneide ein Stück Paket-Klebeband in der Grösse des Displays ab und klebe es auf den Bildschirm. Das wird dir später helfen das zerbrochene Glas zu entfernen.

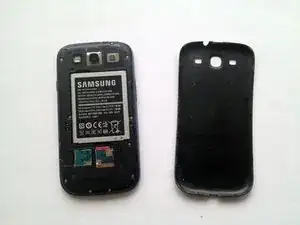

  2. U1boMaDngmxeGhX4
    U1boMaDngmxeGhX4
    UIOImpl5owBHqDdT

    • Öffne vorsichtig mit einem Plastic Opening Tool die Abdeckung an der Rückseite. Es lässt sich sehr einfach lösen.

  3. ZbT5svaWBwqBTKDX

    • Nun entferne die Batterie, sie ist nur eingelegt und hat keine Kabelverbindungen.

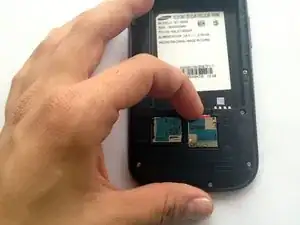

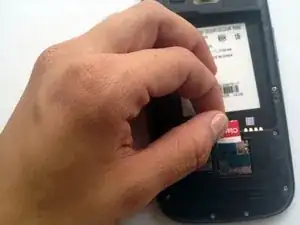

  4. IedGafLSiEDGXg22
    IedGafLSiEDGXg22
    GHWUDZYqA2lCiAju

    • Falls dein Telefonanbieter eine SIM-Karte verwendet kannst du diese rausnehmen, indem du sie leicht nach unten drückst, bis du einen kleinen Klick hörst, und dann rausschiebst.

    • Sprint USA benutzt keine SIM-Karte.

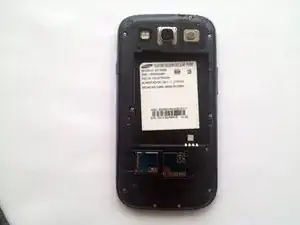

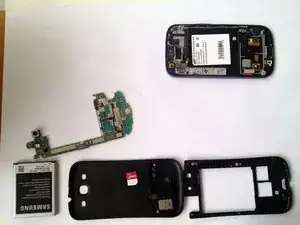

  5. BcGFWTTlIV2uMDvv
    BcGFWTTlIV2uMDvv
    Ra2HCCwORyCmcuUv

    • Nun kannst du bereits zum nächsten Schritt wechseln, bei welchem du eine Wärmepistole brauchst. Ich hab mich aber sicherer gefühlt, wenn ich zuvor die Hauptplatine ausgebaut habe.

    • Falls du dich entscheidest die Hauptplatine auszubauen, folge der Anleitung Samsung Galaxy S III Motherboard austauschen, darin findest du alle Details.

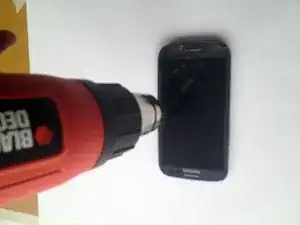

  6. 1pYxf3CxvdbrXy6b

    • Du brauchst viel Geduld bei diesem Schritt. Lass dir Zeit!

    • Benutze ein Infrarot-Thermometer, um die benötigte Temperatur von 170-180° F (ca. 70-80° C) zu erreichen. Diese Temperatur löst den Kleber, ohne die Elektronik zu beschädigen.

    • Halte das Gebläse in ca. 8-10 cm Entfernung vom Gerät (im Bild sieht es so aus als halte ich es direkt an das Gerät). Erhitze alle Kanten des Gerätes ca. 3-5 min, je nach dem, wie stark deine Wärmepistole ist.

    • Du musst beim Erhitzen sehr vorsichtig sein. Wenn das Gerät zu warm wird, kann im Display eine Schicht schmelzen und das kann zu Verfärbungen führen. Falls du irgendwelche Verfärbungen siehst, hör sofort mit Erhitzen auf.

    • Falls du mit einem gewöhnlichen Haushalts-Föhn arbeitest, kann es bis zu einer Stunde dauern.

    • So lösen wir den Kleber, der das Glas im Rahmen und am Display festhält. Das Glas ist an Rahmen und Display angeklebt.

    Hi, regarding Step 6, I haven't got a heat gun and I'm not going to use a hair-dryer since I would be sitting there for hours. I noticed someone talking about the iOpener cushion(?) and wanted to know if it would be an effective substitute? Since it looks like a pretty wide item and could heat up not just the borders but the entire front?

    Also people are saying there is some sort of gel on the actual LCD while others are saying there is only adhesive on the edges? Which is it and what should I do to not damage the actual LCD?

    MPPP -

    Hi Minesh! I have not tried to open a samsung with te iopener but i do think it would be a safer way to soften up the glue at the borders.

    In my experience, the "gel" that goes between the glass and the lcd does need to be heated up so that it loosens up. It feels like a gel but its a layer of a special glue that is used to fill that air gap. That glue comes in layers and it might be a little hard to find and to apply. If you search the comments on the different steps there is a hack that involves putting a screen protector on the back of the glass, Dan Phillips posted it up.

    Angela Penaherrera -

    Here is the original comment by Dan:

    Ive replaced a few of these screens with new glass and the double sided tape. Only issue that has always happed is that the glass will touch the digitizer in the middle once in awhile. This registers a touch that is stuck on and locks up the rest of the touch screen. The only work around is pressing on the glass around the outside of the lcd to release the unwanted touch. Tonight I discovered a great method for curing that problem. I removed the glass and cleaned up very well. Then applied a cut down screen protector for a LG spectrum to underside of the glass to bridge the gap between the glass and the digitzer. Retaped and assembled. This has worked perfect to correct and the screen looks great! Make sure to buy a screen protector that is clear. A protector that is anti-glare would dim the display. With the clear you cant tell its there. Very happy with the results!! Dan

    Angela Penaherrera -

    Because i had problems and the touchscreen still sticks on the glas, i highly recommend the following video!

    It shows how you separate the whole glas - not just the top, edge and side. You have to unglue the the touchscreen too!

    http://www.youtube.com/watch?v=ANL9MgegX...

    Here you can see how the touchscreen unglues from the glas by heating the glas (1:40) (german):

    http://youtu.be/icxls5923O8?t=1m40s

    ezkay -

    I used a meat thermometer (range 0 to 120°C) to watch the temperature (placed the tip of the thermometer directly on the front glass in order to stay within the range of 70-80°C). Worked fine - everthing is working like before the replacement.

    WZett -

    Dude! good call. As long as you don't hold the thermometer in the hair drier/gun's heat you can easily save $20 by not buying the IR thermometer. That said, I really like my IR thermometer, very handy to have around the house if.

    Jon Bosche -

    Rather than use the wire mentioned to separate glass from LCD I used dental floss. I'm really curious though as to whether you can actually use the double sided 3M tape that comes with the kit to glue the glass to the LCD, not just the little bit that goes around the edges but the whole LCD. No idea how to get it on though with out it being all bubbly or would reheating it help? any ideas

    janferrari -

  7. CSIrAL5heBU3nPK2

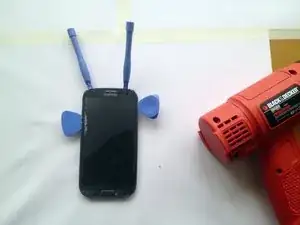

    • Mit einem Plektrum oder dem Plastic Opening Tool kannst du nun vorsichtig beginnen, das Glas von den Ecken her vom Display zu lösen.

    • Arbeite von oben – wo die Kamera sitzt – nach unten zum Home Button.

    • Du brauchst den Heissluft-Föhn noch einige Male während dem Lösen. Bei sehr stark beschädigten Gläsern musst du extra vorsichtig sein, dass keine Glassplitter das Display beschädigen.

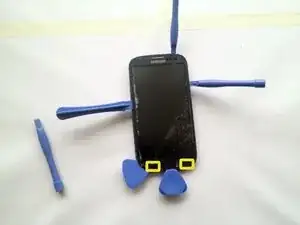

  8. WNZonsijlUoq3fJe

    • Wenn du beginnst das Glas zu lösen, musst du von den oberen Ecken aus beginnen und dich zur Mitte hin arbeiten, um das gesamte Glas vom Bildschirm von oben bis unten zu lösen. Lass die Plastiköffner zwischen dem Glas und dem Bildschirm, damit das Glas nicht wieder festklebt.

    • Sei am unteren Rand sehr vorsichtig, weil die beiden seitlichen Menü-Knöpfe am Glas festgeklebt sind.

    • Nimm das Glas nicht einfach so weg, dadurch könntest du die Kabel beschädigen. Ziehe das Glas von oben her weg, bis du die Kabel vom Menü- und Zurück-Knopf siehst.

    I followed these instructions but when I pulled up the digitizer was still attached to the front glass. I don't know what I did wrong. I didn't see any tips in the main article that mentioned this could happen. The digitizer was to thin to detach from the screen after and broke when I gently tried to remove it.

    Bryan Gray -

    I did the same... Digitizer came up with my front glass. FOR THE UNAWARE (as I was), the digitizer is a rectangle panel that looks like glass and is very easy to accidentally pull up and crack (especially if you are wedging guitar picks and the like in there). The bottom right corner of the phone (where the Back button is located) is where the digitizer ribbon is located. The fat, yellow digitizer ribbon is actually UNDER the digitizer panel, and the black ribbon for the Menu & Back buttons is located between the digitizer panel and the front glass. You will not be able to use your phone if you break the digitizer or its ribbon so bear this in mind when removing the glass. :(

    Jess -

    I too did the same thing. No where was there ANY mention of the digitizer. Now I need to order a part that's over $100 compared to the $8 for just the screen. Siver lining....learned for future DIY screen repairs...I figured out that using a very thin piece of wire was much easier in seperating the screen from the phone.

    Tonya. Nov. 21

    Tonya -

    Oh, oh, oh my!!! So stinking excited to have found this!!! Ordering a kit on ebay that seems to have all the necessary pieces and supplies. I own a heat gun...Bring on The Geek!!!

    Dev Rajhansa -

    We followed a different guide (from another site) and didn't know that the button cables were attached......sliced right through it! Now the lcd screen is displaying purple-ish/magenta streaks, anyone else experience this too? If we replace the button cables, is there then a way to "fix" this problem other than replacing the lcd?

    Mom of 3 -

    I got the same yesterday. It is due to too much heat of LCD. Unfortunatelly irreversible.

    Umit Arabul -

    hi i changed the screen "plastic" but i have a problem with the display now. it doesn't work at all. how can i check if the display is not working anymore or just the connection with it is lost??????? help pls ASAP!!!!!! THANK YOU! :))))))

    bernadettanzik -

    Hi, was the display working before you changed the front glass? There is no "plastic", you should had taken out the front glass that was glued to the display. I would recommend checking all the connections to the logic board.

    Angela Penaherrera -

    Wear safety glasses, set your work area up right, and ensure the area you are working on is a high enough temperature (be patient!). I started with a simple horizontal crack, and because I wasn't working at a high enough temperature the entire top half finely cracked into a fine spiderweb, and accompanied by a rainbow shower of extremely fine glass flakes. The showering glass flakes made me immediately reach for safety glasses, and the spiderweb yielded over an hour of fine tweezer-work and a finely scratched digitizer. I also highly recommend setting up your work area with the heat source suspended at an appropriate distance (so that the maximum temp is not above 200F) above your work area. With the heat source hands-free you can hold the phone with a gloved hand while gently working with your other hand.

    Jacob -

    Soooo, what do you do if you slice through the return and menu buttons?

    Sam -

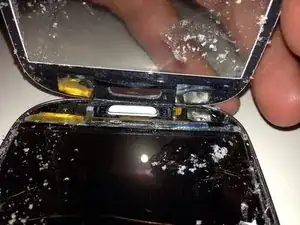

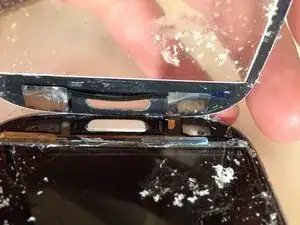

  9. 256LVefVKBGXmHXG
    256LVefVKBGXmHXG
    U5N6M6NSPZ2ZulTE

    • Extra Vorsicht ist bei diesem Schritt nötig: Beschädige keine Knöpfe oder Kabel! Löse die Knöpfe mit einem Spudger von der Innenseite des Glases. Dafür musst du sie vielleicht noch mal erwärmen. Starte auch hier am Besten in der Mitte, unter dem schwarzen Band, welches die beiden Knöpfe verbindet und löse danach beide seitlichen Knöpfe.

    • *Edit* Danke an den super Typ der die fehlenden Bilder hochgeladen hat.

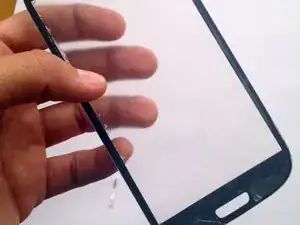

  10. qFELGf2bARSeiRSL

    • Entferne das beschädigte Glas- Ich konnte es in einem Stück zu lösen.

    • Falls dein Glas sehr zersprungen ist, musst du die kleinen Teile einzeln mit einer Pinzette entfernen oder zuvor Klebeband oder Bildschirm-Folie aufkleben.

    Hi! Do i need bonding adhesive digitzer to LCD?

    service -

    Hello,

    No, you don't need bonding adhesive =)

    Angela Penaherrera -

    Removed the front glass off my S3 left with what looks like a plastic sheet what is part of the button ribbon. Should this have lifted? Can this still be replaced?

    Karl -

    Hi! I would recommend that you post a question and attach pictures of what happened.

    Angela Penaherrera -

    1st of all folks who are having trouble removing the glass and pulling up the lcd with it you didn't heat it long enough or hot enough the lcd is capable of handling temps of over 100 I use a hot air soldering station and gave it set @ 105 Celsius and if u heat not only the front glass but also the back of the frame this will help the loca adhesive melt also once its hot enough instead of using a pry tool all the down the screen try to get a thin metal wire like the thinnest guitar string or something close to it then wrap each end around your index fingers of each hand and slide it back and forth between the lcd and glass work you way towards the bottom use ur heat gun or blow dryer if it gets hard to move towards bottom in a minute you will have the glass off. This is nearly the same method they use in . A shop expect they heat the screen using a heat table. It much safer then prying your screen up and it will work with a hair dryer or heat gun too.

    Dean -

    I am also having this kind of problem. I've been following guides to a T and it always seems there is something I am not doing right. I did a good glass swap on a s4 and the touch isn't very responsive. It works for the most part, but instead of being able to press and hold apps in order to move them around, it just opens them.

    I began thinking I needed to apply new adhesive to the body of the glass (where your finger would touch) and it looks so incredibly awful I'm to embarrassed to even list it for sale. Works perfectly, but looks terrible.

    What am I doing wrong!!??

    jeremiahcrosby87 -

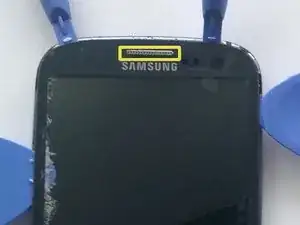

  11. WTiQfCnwZsIXGbDi

    • Nimm die metallene Abdeckung des Ohrhörer-Lautsprechers von deinem alten Glas, denn du musst sie auf das neue Glas übertragen.

    Remove the Earpiece Speaker Mesh Cover for Samsung Galaxy S3.

    Properly place it in the frame.. Align before installing the new glass!

    ross -

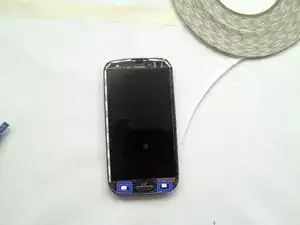

  12. Znv32hTXRNBFZvyV

    • Entferne den verbliebenen Kleber vom Rahmen. Ein Microfaser-Tuch mit ein wenig WD40 oder Reinigungsalkohol hilft dir, die Klebereste abzukriegen.

    • Achte darauf nicht zu viel WD40 oder Alkohol zu benutzen.

    • Während du den Kleber entfernst, versuche NICHT den Kleber im Spalt zwischen Rahmen und Display zu entfernen. Schon wenig Druck von der Seite des Displays genügt um das LCD zu zerbrechen.

    • Schneide zwei 1mm lange Stücke vom doppelseitigen Klebeband ab und klebe die beiden Knöpfe wieder an das Handy, damit sie an Ort und Stelle bleiben.

    • Es ist sehr wichtig, dass du die Knöpfe genau wie auf dem Bild gezeigt anklebst.

    I found that the best technique here (if using the tape shown in the picture) is to cut a piece longer than you need. Leave the backing on the tape. Then, start on one end and place the tape like normal. This will result in extra tape dangling on one side. If you touch the sticky side of the extra tape, it will stick to your finger and separate from the paper. Pull the paper off, and then cut the tape to the correct size.

    Christopher Nies -

    Great, works perfect.Only comment I have is with the new screen, if you push a bit hard (like when to move a pictogram) the fhone blocks, put him in standby (button right on the fhone) en back ok when you start again. I don't now why, that wasn't before. Possible no gel between the glas and LCD the reason ??

    wilf -

    Hi Angela, I have fixed about 10 galaxys 3 now. But lately the last two I have, I have been having trouble with the touch screen after I fixed it. But only on certain areas. Like on the bottom right and left corner. Everywhere else its fine. What do you think Im doing wrong? Too much heat? (whats the temp you use?) I use the old adhesive and I apply new adheasive on top? I dont used LOCA glue? any suggestions will help. Thanks

    ro1and -

    Hi! It could be too much heat, I try to use just enough to separate the glass with a little effort. My heat gun has only 2 temperatures.

    "Ive replaced a few of these screens with new glass and the double sided tape. Only issue that has always happed is that the glass will touch the digitizer in the middle once in awhile. This registers a touch that is stuck on and locks up the rest of the touch screen. The only work around is pressing on the glass around the outside of the lcd to release the unwanted touch. Tonight I discovered a great method for curing that problem. I removed the glass and cleaned up very well. Then applied a cut down screen protector for a LG spectrum to underside of the glass to bridge the gap between the glass and the digitzer. Retaped and assembled. This has worked perfect to correct and the screen looks great! Make sure to buy a screen protector that is clear. A protector that is anti-glare would dim the display. With the clear you cant tell its there. Very happy with the results!! Dan"

    Angela Penaherrera -

    That comment was from Dan Phillips, I would try that out too! ^_^

    Angela Penaherrera -

    Nice guide. My phone is fixed now and back to normal operation. Thanks :)

    Although I would have liked to be informed about that gel layer between the display and the glass cover before. Nobody talked about that. Everybody just talks about the glue. But there is only adhesive tape on the edges ... The main part of the screen is the gel layer to separate. This is not glue. With this procedure you will loose the gel layer and therefore have an air gap between the display and the glass cover. This results in more reflections and might lead to dust particles sitting between the screen and the glass layer as well.

    I took some shots of the process ... In the lower right picture you can see the gel layer I am talking about https://www.flickr.com/photos/d5e/138409...

    muham3661 -

    Tru, this guide doesn't mention the gel layer and it really should cos without that gel leyer the end result is really bad! Faded, washed out screen that will break too easily. Watch this video to find out why: http://www.youtube.com/watch?v=XxQ76Rxe1...

    matt -

    Hi there,

    I recently replaced the front panel glass on Samsung Galaxy S3. I used a heat gun to remove the broken glass. I used isopropyl alcohol to clean the surface underneath the glass. I also used 2mm double sided sticky tape in the borders to sit the new glass down on top. I used an Optically Clear Adhesive OCA Film Sheet to bond the new glass to the LCD screen. You can find more info on the Optically Clear Adhesive OCA Film Sheet at this link http://www.replacebase.co.uk/samsung-gal...

    The phone boots up fine. The screen is crystal clear however the screen is not responsive to touch.

    Any ideas why this might be ?

    Jason McCutcheon -

    I found that a small of Goof Off on a cloth worked great for removing the glue.

    Gerald Maurer -

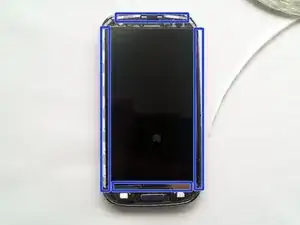

  13. qTrOUc2lNeCc6K5G

    • Nun kannst du alle Kanten wie gezeigt mit doppelseitigem Klebeband versehen.

    • Reinige nun den Bildschirm mit einem fusselfreien Tuch oder einem sauberen Microfaser-Tuch. Ich habe Objektiv-Reiniger verwendet, um das Display sauber und staubfrei zu bekommen.

    hi, i must use LOCA or OCA? i have watched lots of video about this but most of them didnt use LOCA and OCA. Is it problem if i dont use OCA? thx for answer.

    Hakan Guzel -

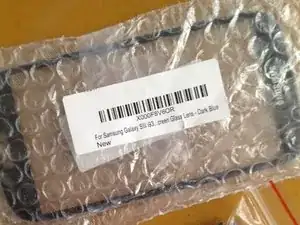

  14. BiSKXStgZmCM1BLt

    • Nimm das neue Glas aus dem Plasikbeutel und berühre nicht die Innenseite vom Glas.

    • Es sind an beiden Seiten Schutzfolien auf dem neuen Glas. Entferne sie vorsichtig, bevor du es einbaust.

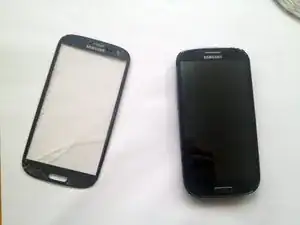

  15. XVB2QxSKbPHOWhRs

    • Halte das Glas ins Licht, um sicherzugehen, dass es streifenfrei ist, bevor du es aufbringst. Falls Streifen vorhanden sind, putze es mit etwas Glasreiniger und lasse es gut trocken, bevor du es einbaust.

    • Löse nun die Trägerfolie vom doppelseitigen Klebeband und setze das neue Glas ein. Drücke es an den Ecken fest an, um eine gute Befestigung zu gewährleisten.

    Is it not necessary to use glue for these repairs? I did a S4 and it seems as if the touch isn't working properly.

    John Maynard -

    I am also having this kind of problem. I've been following guides to a T and it always seems there is something I am not doing right. I did a good glass swap on a s4 and the touch isn't very responsive. It works for the most part, but instead of being able to press and hold apps in order to move them around, it just opens them.

    I began thinking I needed to apply new adhesive to the body of the glass (where your finger would touch) and it looks so incredibly awful I'm to embarrassed to even list it for sale. Works perfectly, but looks terrible.

    What am I doing wrong!!??

    jeremiahcrosby87 -

    My S3 the glass is broken but it works perfect i want to replaced it but i don't know where to get the original glass please help

    Anna -

    I've replaced the glass just fine. Now I find that the touchscreen will go out from time-to-time. The home button works fine but the screen is unresponsive until I restart the phone and then it works fine. Any clues? Has anyone else found this a problem?

    Paul -

    Yep, have had this problem with both phones I replace the glass on, one of them mine. I often have to reboot to get the screen working again. I once realized that it seems to happen when the glass actually touches the digitizer, as there is a thin layer of air in between. Not really sure the reason, but sure if annoying.

    Norman Shafto -

    Is there any way to do it if you don't have a heat gun? My brother cracked his screen pretty bad! It still works but was trying to find out if he can replace it himself. Thanks

    Cynthia Campbell -

    In a pinch you can use a hair dryer. It just takes a really long time. Watch the temperature and DO NOT GO OVER 180 F. You'll need to periodically re-sweep the dryer on the glass to keep it warm as you pry off the glass from the LOCA glue.

    Jon Bosche -

    Worth mentioning but I have found that LOCA is hard to get in some locations. A possible substitute at own risk is to use uv nail polish filler and do this under a safe light ie red so you don't let the varnish begin to set. Note that using LOCA where it wasn't before is bad and vice versa.

    Andre -

Abschluss

Arbeite die Schritte in umgekehrter Reihenfolge ab, um dein Gerät wieder zusammenzubauen.
